24

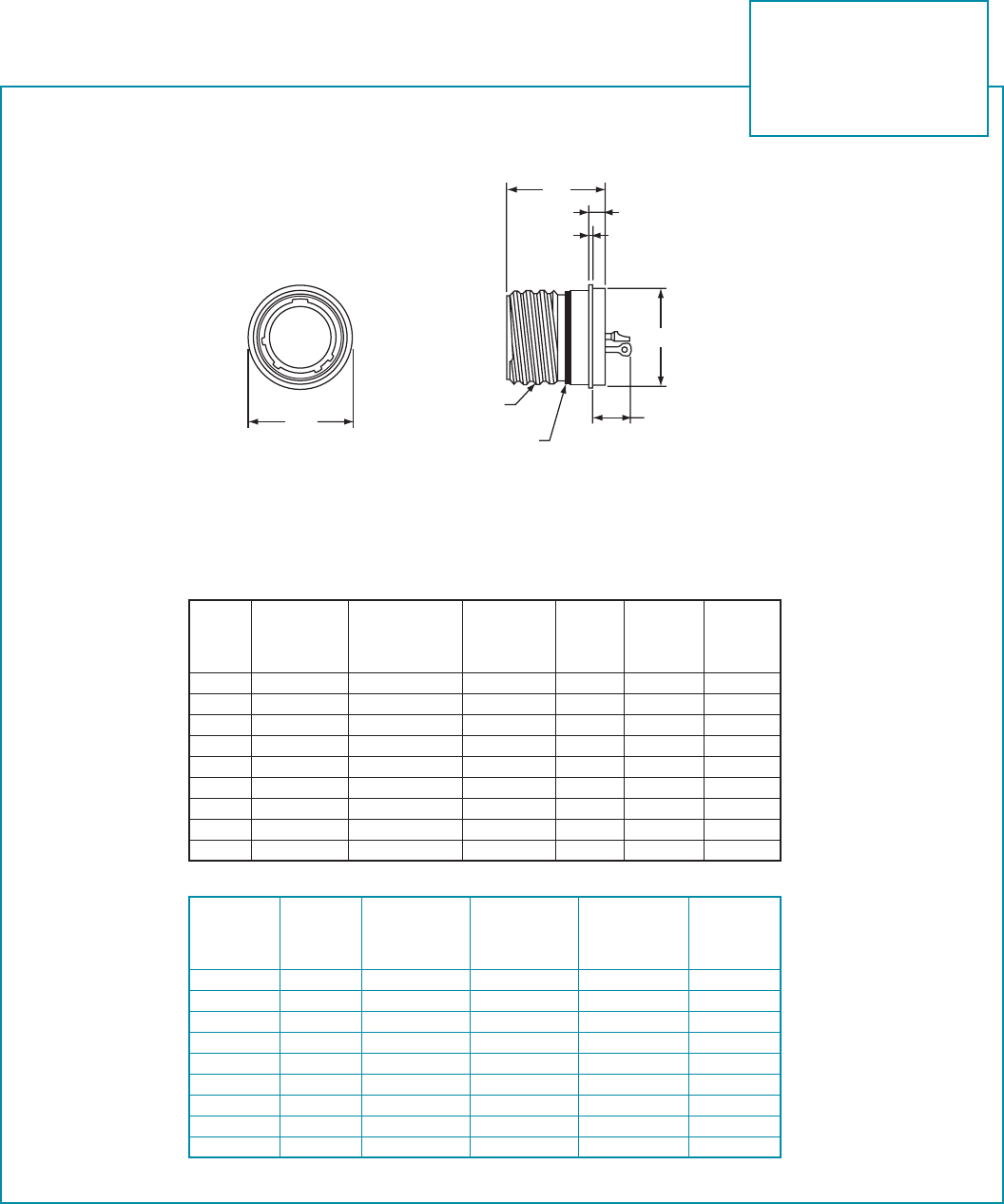

TVS07Y (D38999/23) – hermetic, metal
jam nut receptacle
† Red band indicates fully mated
★ . 059 dia min.
1.5 dia min.
Formed lockwire hole design (6 holes) is optional.
3 lockwire holes
MS B Thread H
Shell A• Class 2A D
1
D
2
Hex T• KK
Shell Size +.000 0.1P-0.3L-TS C +.010 +.000 +.017 L S +.010 +.011
Size Code –.010 (Plated) Max –.000 –.010 –.016 Max ±.010 –.000 –.000
9 A .669 .6250 1.199 .700 .670 .875 .357 1.062 .697 .642
11 B .769 .7500 1.386 .825 .770 1.000 .357 1.250 .822 .766
13 C .955 .8750 1.511 1.010 .955 1.188 .357 1.375 1.007 .892
15 D 1.084 1.0000 1.636 1.135 1.085 1.312 .357 1.500 1.134 1.018
17 E 1.208 1.1875 1.761 1.260 1.210 1.438 .357 1.625 1.259 1.142
19 F 1.333 1.2500 1.949 1.385 1.335 1.562 .381 1.182 1.384 1.268
21 G 1.459 1.3750 2.073 1.510 1.460 1.688 .381 1.938 1.507 1.392
23 H 1.575 1.5000 2.199 1.635 1.585 1.812 .381 2.062 1.634 1.518
25 J 1.709 1.6250 2.323 1.760 1.710 2.000 .381 2.188 1.759 1.642
MS A• D
1
D
2
H Hex T• KK
Shell Shell Size +.00 C +.25 +.00 +.43 L S +.25 +.28
Size Code –.25 Max –.00 –.25 –.41 Max ±.25 –.00 –.00
9 A 16.99 30.45 17.78 17.02 22.23 9.07 26.97 17.70 16.31
11 B 19.53 35.20 20.96 19.59 25.40 9.07 31.75 20.88 19.46
13 C 24.26 38.38 25.65 24.26 30.18 9.07 34.93 25.58 22.66
15 D 27.53 41.55 28.83 27.56 33.32 9.07 38.10 28.80 25.86
17 E 30.68 44.73 32.01 30.73 36.53 9.07 41.28 31.98 29.01
19 F 33.86 49.50 35.18 33.91 39.67 9.68 46.02 35.15 32.21
21 G 37.06 52.65 38.35 37.08 42.80 9.68 49.23 38.28 35.36
23 H 40.01 55.85 41.53 40.26 46.02 9.68 52.37 41.50 38.56
25 J 43.41 59.00 44.70 43.43 50.80 9.68 55.58 44.68 41.71
Millimeters
Inches
All dimensions for reference only • D shaped panel cut-out dimensions
Part number reference.
See how to order, pages 43, 44
to complete.
TVS07Y-XX-XXX
TVS07YN-XX-XXX
D38999/23
C
T
•
H
S
2 PLACES
K REF
.200 MAX
5.08 MAX
KK
RED
BAND
†
B THREAD
A
•
L
PANEL THICKNESS
.062 MIN .125 MAX
1.57 MIN 3.18 MAX
SHELL SIZES 9/11 – .871 22.12
SHELL SIZES 13/25 – .878 22.30
PANEL HOLE
DIMENSIONS
JAM NUT
D-HOLE
MOUNTING
D
1
D
2
