Tri-Start – specials

quadrax and differential twinax contacts

SIZE 8 HIGH SPEED QUADRAX AND DIFFERENTIAL TWINAX

CONTACTS FOR USE IN MIL-DTL-38999 CONNECTORS

Quadrax Contacts consist of an outer contact with four strategically

spaced inner contacts forming two 100 or 150 Ohm matched impedance

differential pairs.

Differential Twinax Contacts consist of an outer contact with two inner

contacts spaced to form one 100 or 150 Ohm matched impedance

differential pair.

Both contacts can be used in connectors for Ethernet 100 Base-T-100

Ohm, Fibre-Channel-150 Ohm and IEEE 1394B FireWire-110 Ohm

applications.

TYPICAL ELECTRICAL PERFORMANCE

• Bandwidth: Up to 3 Gigahertz

• Data rate: Exceeding 2 Gbits/sec.

• Voltage rating: 500 Vrms max. @ sea level

• Dielectric withstanding voltage:

1000 VACrms between all inner contacts @ sea level

500 VACrms between inner and outer contacts @ sea level

Quadrax contacts are also available in ARINC 600 Rectangular connectors. See photo

on right; consult Amphenol Aerospace for further information.

Also available are Quadrax and Twinax Transition Adapters which provide a method of

launching from the high speed connectors to PCB boards.

Consult Amphenol Aerospace, Sidney NY for ordering information for MIL-DTL-38999

Series III connectors with quadrax and differential twinax contacts. Below is a chart

that provides contact part numbers available, but not limited to, the cables listed. All

contacts are available kitted with or installed into specially modified MIL-DTL-38999

connectors. Consult Amphenol for cables not listed.

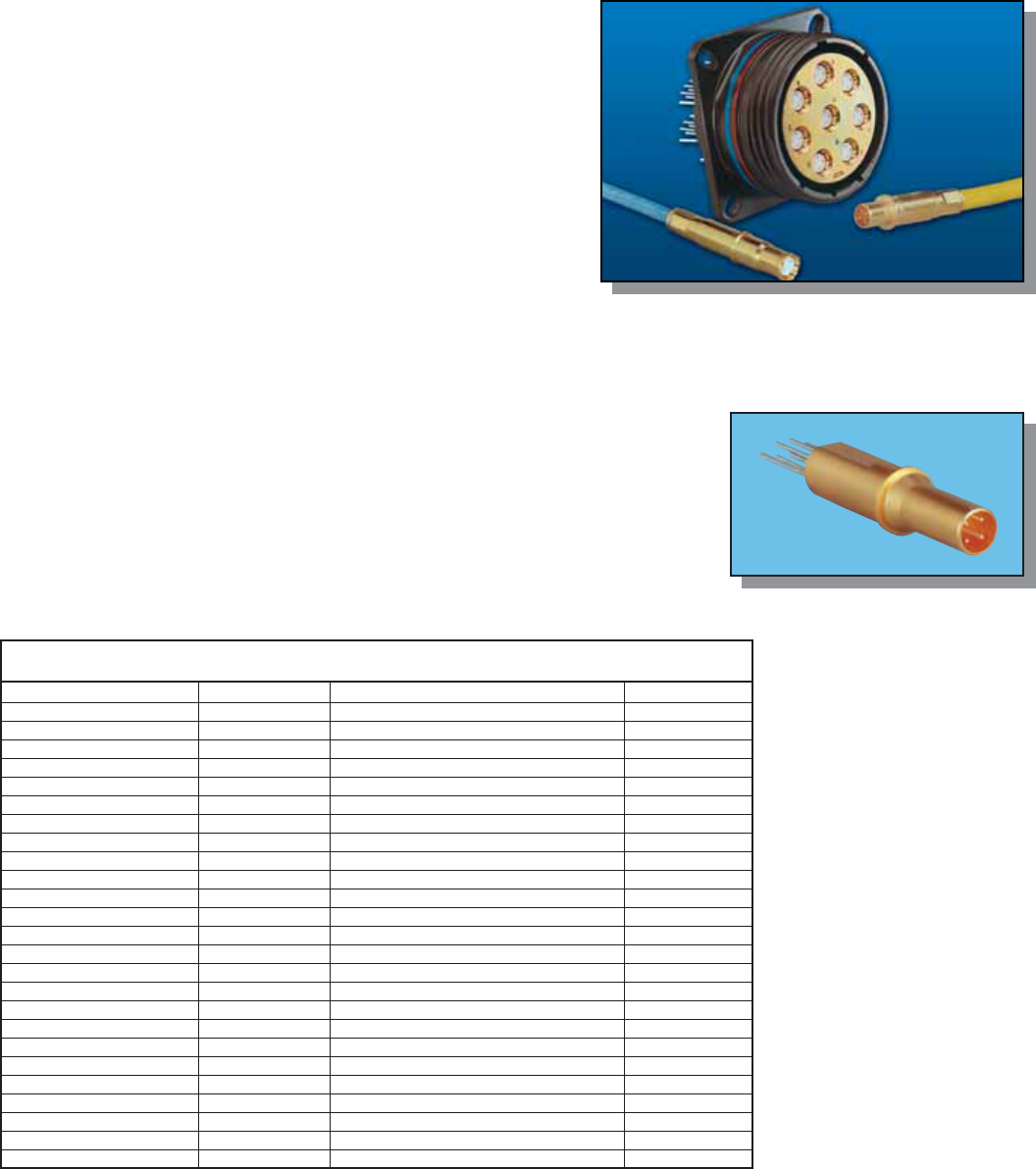

D38999 Series III Groundplane Connector with

Quadrax PCB Sockets Installed

Contacts front are Differential Twinax (left) and

Quadrax (right)

CONTACT PART NUMBERS AND APPLICABLE CABLES

FOR USE IN D38999 CONNECTORS

Description Part Number Cable Part Number Impedance

Quadrax Socket 21-33385-21 Draka Fileca F-4703-3 100 Ohm

21-33385-31 Tensolite 26473/02006X-4(LD) 150 Ohm

21-33385-51 Tensolite NF24Q100 100 Ohm

21-33385-61 Tensolite NF22Q100 or Thermax 956-5 100 Ohm

21-33385-61 Tensolite 24450/03089X-4(LD) 110 Ohm

21-33385-71 Tensolite NF26Q100 100 Ohm

21-33385-91 JSFY02 110 Ohm

21-33397-21 PCB (1.035 length) 100 Ohm

21-33397-31 PCB (.866 length 100 Ohm

Quadrax Pin 21-33384-21 Draka Fileca F-4703-3 100 Ohm

21-33384-31 Tensolite 26473/02006X-4(LD) 150 Ohm

21-33384-51 Tensolite NF24Q100 100 Ohm

21-33384-61 Tensolite NF22Q100 or Thermax 956-5 100 Ohm

21-33384-61 Tensolite 24450/03089X-4(LD) 110 Ohm

21-33384-71 Tensolite NF26Q100 100 Ohm

21-33384-91 JSFY02 110 Ohm

21-33398-21 PCB (1.035 length) 100 Ohm

21-33398-31 PCB (.866 length) 100 Ohm

21-33425-1 Right Angle Special 100 Ohm

Differential Twinax Socket 21-33388-21 Tensolite 24463/9P025X-2(LD) 100 Ohm

21-33388-31 Tensolite 26483/03071X-2(LD) 100 Ohm

21-33835-1 PCB (1.035 length)

Differential Twinax Pin 21-33387-21 Tensolite 24463/9P025X-2(LD) 100 Ohm

21-33387-31 Tensolite 26483/03071X-2(LD) 100 Ohm

21-33834-1 PCB (1.035 length)

Quadrax Contact for use in

ARINC 600 Connectors

Tri-Start – specials

deep reach and stand-off shells, connectors with

integral strain reliefs, ESD protection, RJ Field

OTHER SPECIALS WITHIN THE

TRI-START FAMILY OF CONNECTORS:

• Deep Reach Shells – for increased panel

thicknesses.

• Stand-off Flange Shells – for attachment to

printed circuit boards

• Connectors with Integral Strain Reliefs –

cost savings through integration of strain relef

to the shell.

• Electrostatic Discharge (ESD) Protection –

Amphenol has developed a design feature for

the Tri-Start connector which will protect

sensitive components from Electrostatic

Discharge without diodes, varistors, gas

tubes, or “experimental” semiconductive

materials. These connectors utilize the

Faraday Cage principal to shunt electrostatic

discharge events to the conductive enclosure

on which the connector is mounted, thus

never allowing the high voltage, high current

discharge event to reside on any contacts.

The ESD protected connectors have the same

physical envelope as their standard counter-

parts, and do not require special mounting or

terminating techniques. All of the contacts

remain fully functional, and electrical charac-

teristics such as capacitance are not effected.

For more information on ESD protected

connectors, ask for Product Data Sheet 171.

Also publication L-2075, “ESD Attenuation

Test Procedure for Connectors with Faraday

Cage Protective Structures” is available as a

reference document.

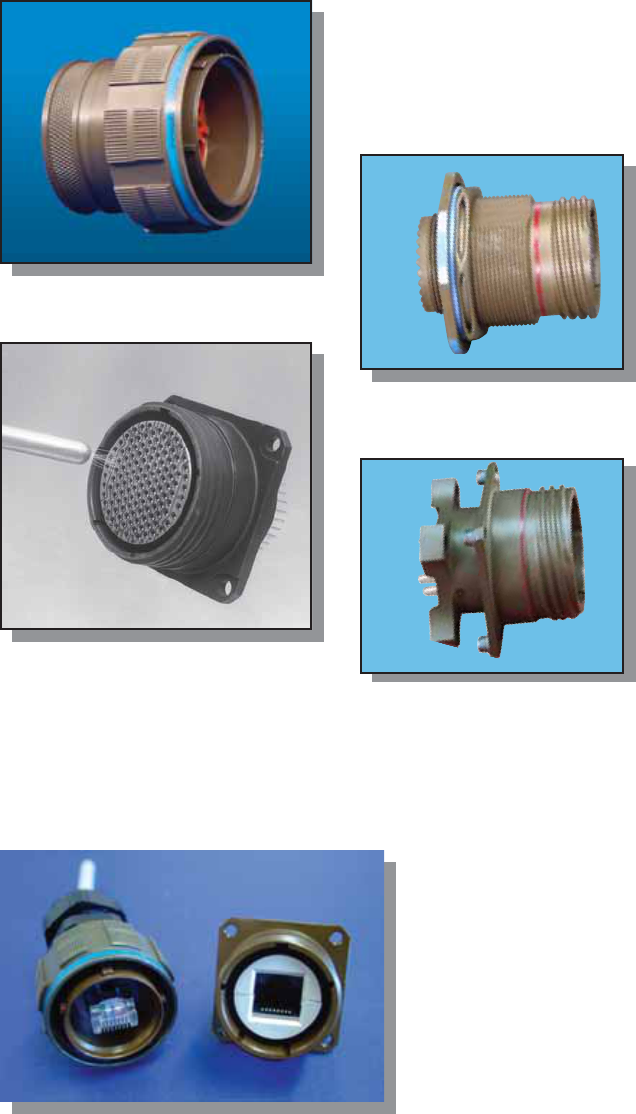

Tri-Start Jam Nut Receptacle

with Deep Reach Shell

Tri-Start with Stand-off Flange

Tri-Start with Integral Strain Relief

Electrostatic Discharge (ESD) Testing

on Tri-Start Filter Connector

RJ FIELD CONNECTORS

Amphenol Socapex offers the RJF TV within the

MIL-DTL-38999 connector shell for Ethernet

connection. The RJ Field is designed for use

where it is necessary to go beyond the pro-

tected office environment of most Ethernet

applications, to the harsher environments of

industrial and even mil-aero applications. Allows

use of Ethernet Class D/Cat. 5e connection for

10 BaseT, 100 BaseTX, or 1000 Base T

networks.

Consult Amphenol Socapex for further informa-

tion.
