www.ti.com
Using the Software: ADS1299 Control Registers and GUI
5.5.2 Lead-Off Status Registers (LOFF_STATP and LOFF STATN)
These registers store the output of the lead-off comparator that corresponds with each input. When a lead
is disconnected, the corresponding register bit activates low. The GUI for this feature is enabled by
clicking in the upper right-hand corner of the EVM software on the Show/Poll Lead-Off Status button.
Pressing this button causes a pop-up box that shows the status of the lead-off registers. The GUI shows
when a lead is disconnected by turning its bit from green to red. Figure 26 illustrates the Lead-Off Status
Registers GUI controls.

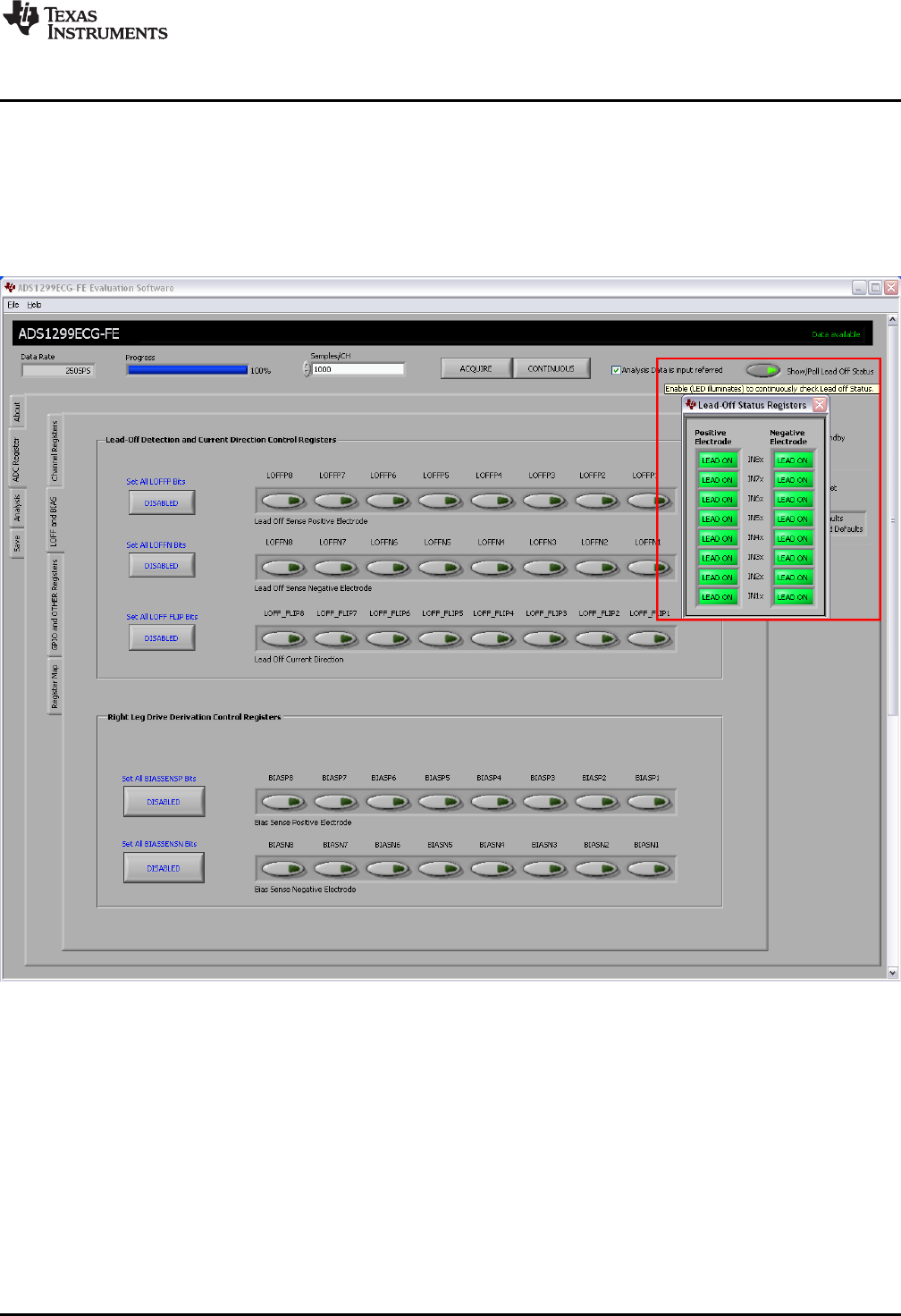

Figure 26. Lead-Off Status Indicator
5.5.3 Bias Drive Derivation Control Registers
The Bias Drive Derivation Control Registers enable the user to set any combination of positive and/or
negative electrodes to derive the BIAS voltage that is fed to the internal bias drive amplifier. Figure 27
shows the corresponding GUI controls. The details about bias drive can be found in Section 5.5.
25
SLAU443May 2012 EEG Front-End Performance Demonstration Kit
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Using the Software: ADS1299 Control Registers and GUI
www.ti.com

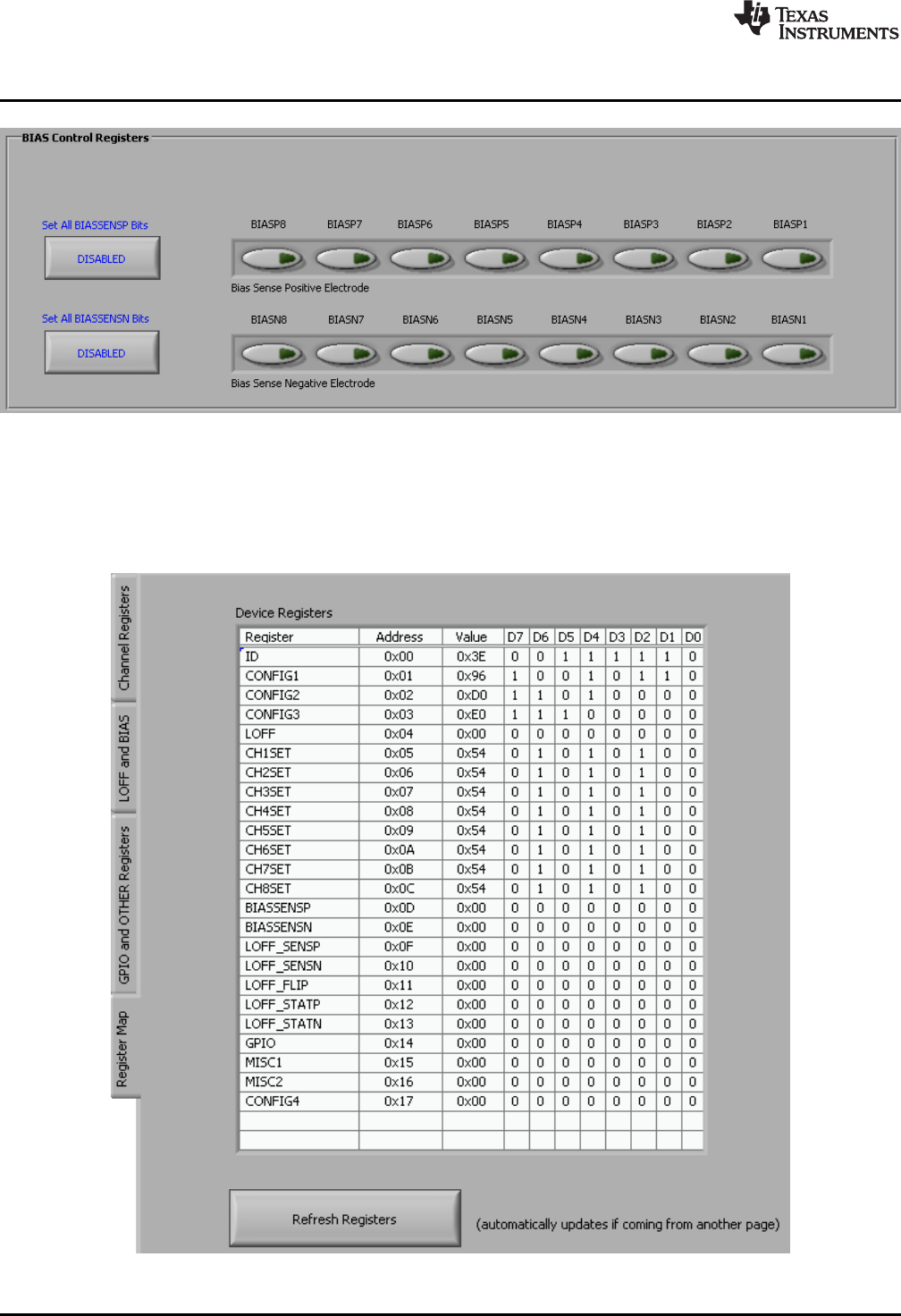

Figure 27. BIAS_SENSP and BIAS_SENSN GUI Panel
5.6 Register Map
The Register Map Device Registers tab is a helpful debug feature that allows the user to view the state
of all the internal registers. This tab is illustrated in Figure 28.
Figure 28. Device Register Settings
26
EEG Front-End Performance Demonstration Kit SLAU443May 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
www.ti.com
ADS1299EEG-FE Analysis Tools
6 ADS1299EEG-FE Analysis Tools
Under the Analysis tab in the ADS1299EEG-FE GUI software, there are four different analysis tools
shown that enable a detailed examination of the signals selected by the front-end MUX:
Scope
Analysis
Histogram
FFT
These tools are detailed in the following subsections.
6.1 Scope Tab
6.1.1 Using the AnalysisScope Tool
The Scope tool (available under the Analysis tab) is a very useful means of examining the exact amplitude
of the measured input signals from each channel. Additionally, users can determine the noise contribution
from each channel at a given resolution, and review the sampling rate, the PGA gain, and the input signal
amplitude. Figure 29 illustrates the Scope tool features.
Figure 29. Scope Tool Features
6.1.2 Waveform Examination Tool
The waveform examination tool allows the user to zoom in either on all channels simultaneously or on a
single channel. Figure 30 shows an example of the waveform examination tool with the magnifying glass
zoomed in on 90 samples.
27
SLAU443May 2012 EEG Front-End Performance Demonstration Kit
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
