Using the Software: ADS1299 Control Registers and GUI
www.ti.com
Figure 21. Simplified Diode Arrangement
The output voltage corresponding to a given temperature can be read selecting the Temperature Sensor
option on the Channel Control Registers GUI (see Figure 17) and verified using the AnalysisScope tab
as shown in Figure 22. The number 0.146V (on the y-axis) can be calculated as a temperature using
Equation 1:
Temperature = (0.146 – 0.145300) / 0.00049 + 25 = 26.4°C
It should be noted that the temperature sensor input cannot be used with a gain setting of 24 as it will
saturate the PGA output.
Figure 22. Eight Channel Read of Internal Temperature Data
22
EEG Front-End Performance Demonstration Kit SLAU443May 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
www.ti.com
Using the Software: ADS1299 Control Registers and GUI
5.3.3 Normal Electrode Input
The Normal electrode input on the MUX routes the inputs (VINP and VINN) differentially to the internal
PGA, as Figure 17 illustrates. An exception is if the SRB1 bit is set high. If channel is in Normal electrode
mode and SRB1 bit is set high the signal on SRB1 pin is routed to negative inputs of all channels instead
of VINN inputs.
5.3.4 MV
DD
Input and the Scope Tab
The MV
DD
input option allows the measurement of the supply voltage V
S
= (AV
DD
+ AV
SS
)/2 for channels 1,
2, 5, 6, 7, and 8; however, the supply voltage for channel 3 and 4 will be DV
DD
/4. As an example, in
bipolar supply mode, AV
DD
= 3.0V and AV
SS
= –2.5V. Therefore, with the PGA gain = 1, the output voltage
measured by the ADC will be approximately 0.25V.
5.3.5 Bias Measurement
This measurement takes the voltage at the BIASIN pin and measures it on the PGA with respect to
(AVDD + AVSS)/2 or BIASREF. This option can be used to give a calibration/test signal to ADS1299
device without connecting the calibration/test signal to the electrodes. The positive signal can be applied
to BIASIN pin and the negative input can be applied to the BIASREF pin. More details on this can be
found in Section 7.3.
5.3.6 Bias Positive Electrode Drive and Bias Negative Electrode
This option can be used to have a selectable bias electrode. This option routes the signal on BIASIN pin
to any of positive or negative pins of the channel inputs.
5.4 GPIO and Other Registers
The GPIO and Other Registers tab, located under the Analysis tab, includes controls for GPIO1 through
GPIO4, SRB1 control, pulse mode control and lead off comparators power down. The GPIO registers
control four general-purpose I/O pins. Figure 23 illustrates the GPIO Control Register GUI panel.
Figure 23. GPIO Control Register GUI Panel
5.5 Lead-Off and BIAS Registers
The Lead-Off Detection and Current Control Registers and the Bias Derivation Control Registers are
located under the ADC RegisterLOFF and BIAS tab.
23
SLAU443May 2012 EEG Front-End Performance Demonstration Kit
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Using the Software: ADS1299 Control Registers and GUI
www.ti.com
5.5.1 Lead-Off Sense (LOFF_SENSP and LOFF_SENSN) Registers
These registers enable lead-off detection for both the positive and negative channels. Figure 24 describes
the 4-bit DAC settings to configure the lead-off threshold. Note that the LOFF_FLIPx bits change the
direction of the lead-off current if this option is selected. Figure 24 illustrates the connections from the
positive and negative inputs to the lead-off comparators. Figure 25 shows the respective GUI panel on the
EVM software.

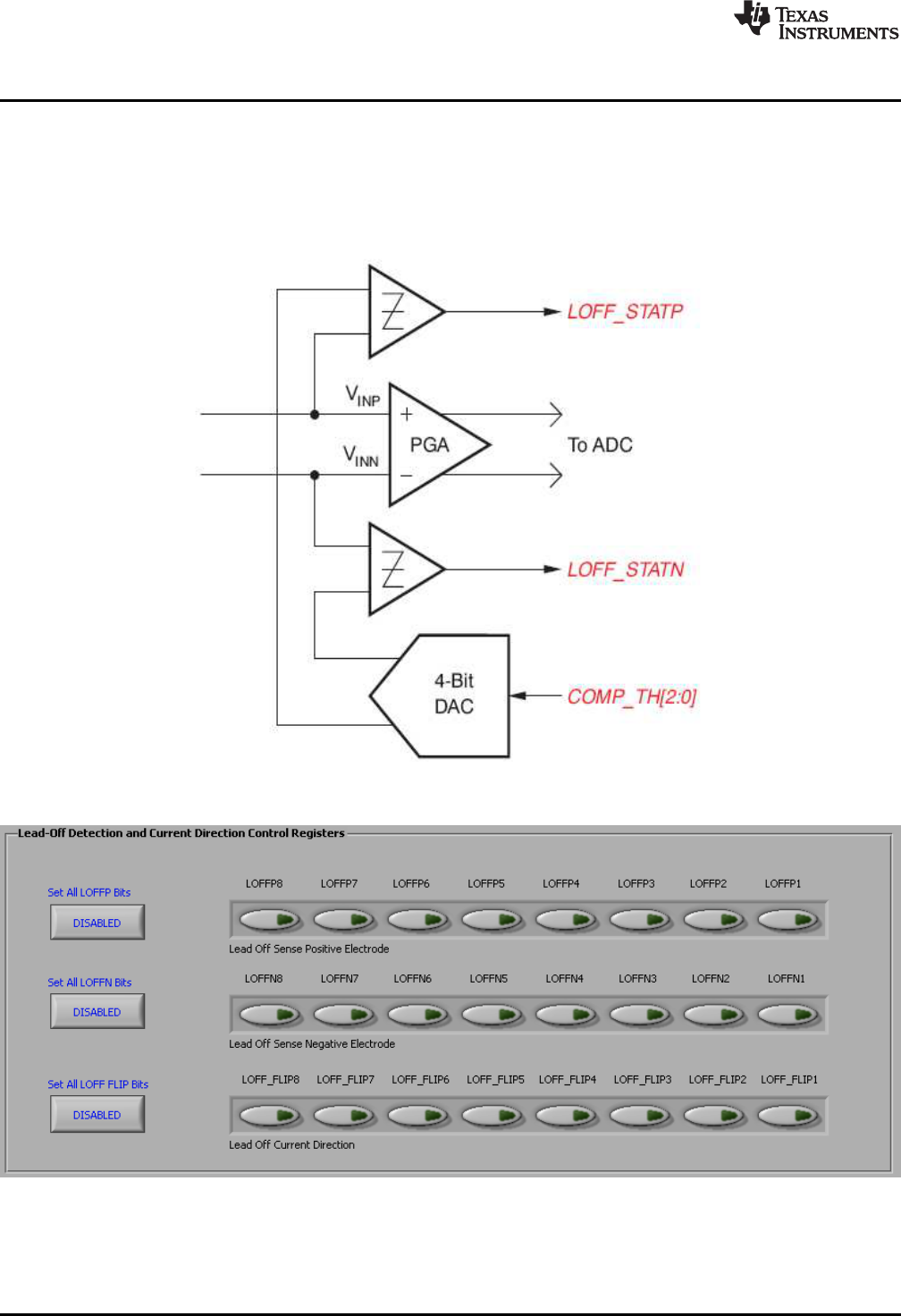

Figure 24. LOFF_STATP and LOFF_STATN Comparators
Figure 25. LOFF_SENSP and LOFF_SENSN Registers GUI Panel
24
EEG Front-End Performance Demonstration Kit SLAU443May 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
