01 of 09
Low DCR Low Prole
Chip Power Inductors

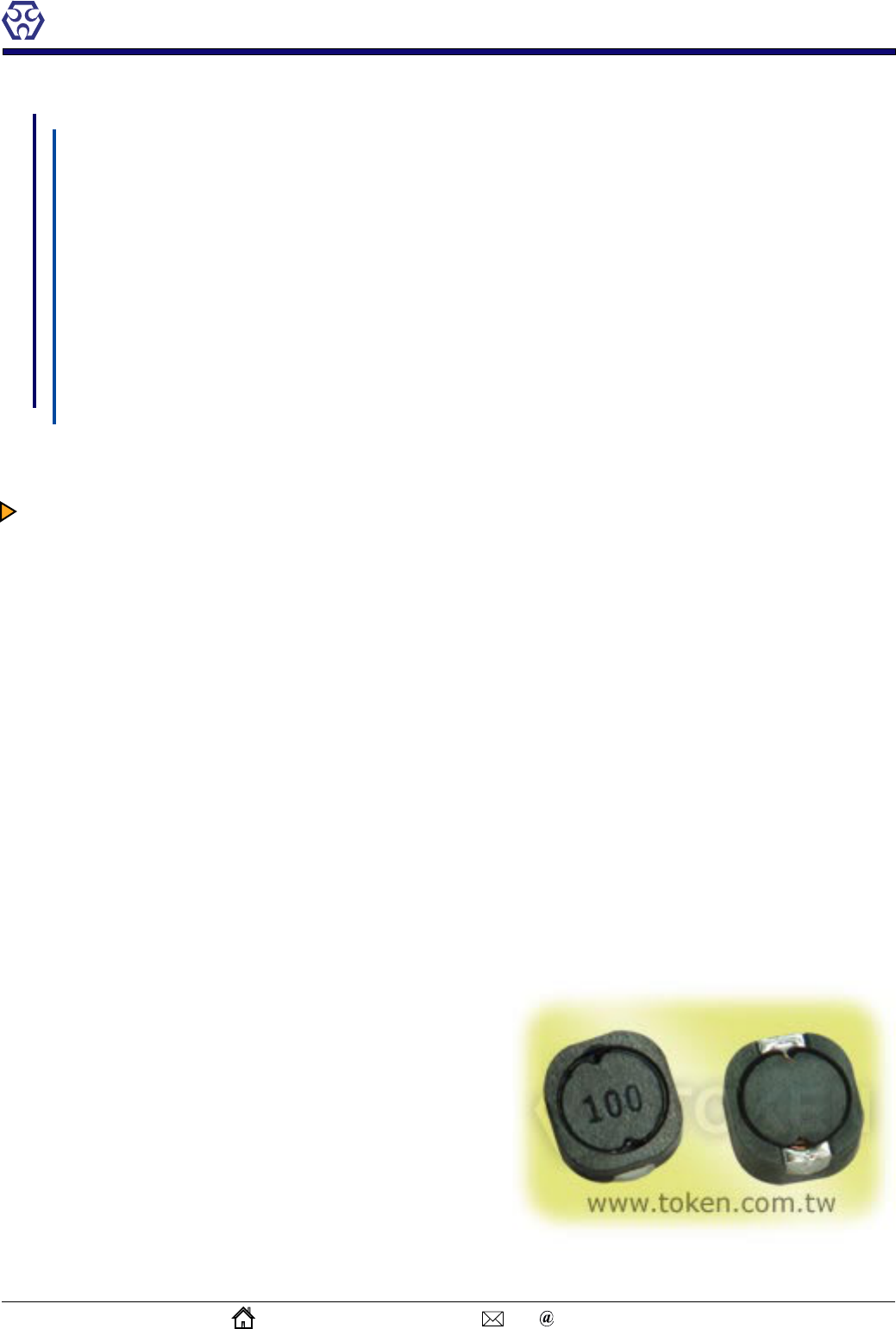

TPSDS Low DCR Chip Power Inductors
Token Chip Power Inductor Packs Low DCR,
Low Prole, High Current All in One (TPSDS)
Preview
Token’s new TPSDS power inductor series has improved and combined three key factors of low direct current
resistance (DCR), high-current, and low-prole in one package.
This consists of the internal wound coil being packed tightly with magnetic iron powder and a shielded case that
helps the inductor to produce a much lower audible noise.
Token SMT shielded power inductors (TPSDS) series conform to the RoHS directive and Lead-free. Application
of specic designs also available including different inductance and frequency specications adjusted to
requirements. Please contact our sales for more information.
Features :
- Compact and thin
- Large Current and Low DCR
- Magnetically shielded construction
Inductor Selection Overview :
- TPSDS0620:(6.3 x 6.2 x 2.0 mm); 1.00μH ~ 47.00μH; DCR 0.022Ω ~ 0.730Ω; IDC 3.50A ~ 0.50A.
- TPSDS0625:(6.3 x 6.2 x 2.5 mm); 1.00μH ~ 100.00μH; DCR 0.018Ω ~ 0.800Ω; IDC 3.48A ~ 0.33A.
- TPSDS0630:(6.3 x 6.2 x 3.0 mm); 1.00μH ~ 150.00μH; DCR 0.017Ω ~ 0.750Ω; IDC 3.59A ~ 0.31A.
- TPSDS0635:(6.3 x 6.2 x 3.5 mm); 2.00μH ~ 150.00μH; DCR 0.020Ω ~ 0.650Ω; IDC 3.00A ~ 0.37A.
- TPSDS104:(10.4 x 10.3 x 3.5 mm); 1.10μH ~ 120.00μH; DCR 0.011Ω ~ 0.460Ω; IDC 11.70A ~ 0.97A.
- TPSDS106:(10.4 x 10.3 x 6.8 mm); 1.10μH ~ 680.00μH; DCR 0.014Ω ~ 1.500Ω; IDC 7.00A ~ 0.47A.
- TPSDS126:(12.8 x 12.6 x 6.8 mm); 1.70μH ~ 680.00μH; DCR 0.010Ω ~ 1.120Ω; IDC 11.80A ~ 0.55A.
Applications :
- TV game, Computer devices
- Ideal for a variety of DC-DC converter
inductor applications.
TOKEN
Version 2010
http://www.token.com.tw/
rfq token.com.tw
02 of 09
Dimensions & Congurations
A
C
H
G
I
Land Pattern
TP
XXX
F
TC
XXX
B
E
D
Type A(max) B(max) C(max) D ± 0.2 E(max) F G H I
TPSDS0620 6.3 6.2 2.0 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS0625 6.3 6.2 2.5 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS0630 6.3 6.2 3.0 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS0635 6.3 6.2 3.5 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS104 10.4 10.3 4.8 3.0 2.0 6.0 3.6 2.65 5.4
TPSDS106 10.4 10.3 6.8 3.0 2.0 6.0 3.6 2.65 5.4
TPSDS126 12.8 12.6 6.8 3.0 2.0 8.5 3.6 2.60 7.9
Note: Design as Customer’s Requested Specications.
(TPSDS0620) Electrical Characteristics
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS0620 - 1R0N 1.00 100 0.022 3.50
TPSDS0620 - 1R5N 1.50 100 0.030 2.94
TPSDS0620 - 2R0N 2.00 100 0.040 2.47
TPSDS0620 - 3R3N 3.30 100 0.055 1.99
TPSDS0620 - 4R7N 4.70 100 0.070 1.59
TPSDS0620 - 6R2N 6.20 100 0.110 1.49
TPSDS0620 - 8R2N 8.20 100 0.140 1.25
TPSDS0620 - 100M 10.00 100 0.160 1.22
TPSDS0620 - 120M 12.00 100 0.200 0.99
TPSDS0620 - 150M 15.00 100 0.230 0.94
TPSDS0620 - 180M 18.00 100 0.260 0.83
TPSDS0620 - 220M 22.00 100 0.310 0.80
TPSDS0620 - 270M 27.00 100 0.390 0.65
TPSDS0620 - 330M 33.00 100 0.510 0.63
TPSDS0620 - 390M 39.00 100 0.570 0.55
TPSDS0620 - 470M 47.00 100 0.730 0.50
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
TPSDS Low DCR Chip Power Inductors
TOKEN
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 09
(TPSDS0625) Electrical Characteristics
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS0625 - 1R0N 1.00 100 0.018 3.48
TPSDS0625 - 1R5N 1.50 100 0.024 2.83
TPSDS0625 - 2R0N 2.00 100 0.032 2.44
TPSDS0625 - 3R3N 3.30 100 0.045 1.89
TPSDS0625 - 4R3N 4.30 100 0.055 1.65
TPSDS0625 - 6R2N 6.20 100 0.065 1.37
TPSDS0625 - 100M 10.00 100 0.095 1.07
TPSDS0625 - 120M 12.00 100 0.120 0.97
TPSDS0625 - 150M 15.00 100 0.150 0.87
TPSDS0625 - 180M 18.00 100 0.180 0.79
TPSDS0625 - 220M 22.00 100 0.210 0.71
TPSDS0625 - 270M 27.00 100 0.240 0.64
TPSDS0625 - 330M 33.00 100 0.280 0.58
TPSDS0625 - 390M 39.00 100 0.330 0.53
TPSDS0625 - 470M 47.00 100 0.390 0.48
TPSDS0625 - 560M 56.00 100 0.450 0.44
TPSDS0625 - 680M 68.00 100 0.560 0.40
TPSDS0625 - 820M 82.00 100 0.620 0.36
TPSDS0625 - 101M 100.00 100 0.800 0.33
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
TPSDS Low DCR Chip Power Inductors
TOKEN
Version 2010
http://www.token.com.tw/
rfq token.com.tw
