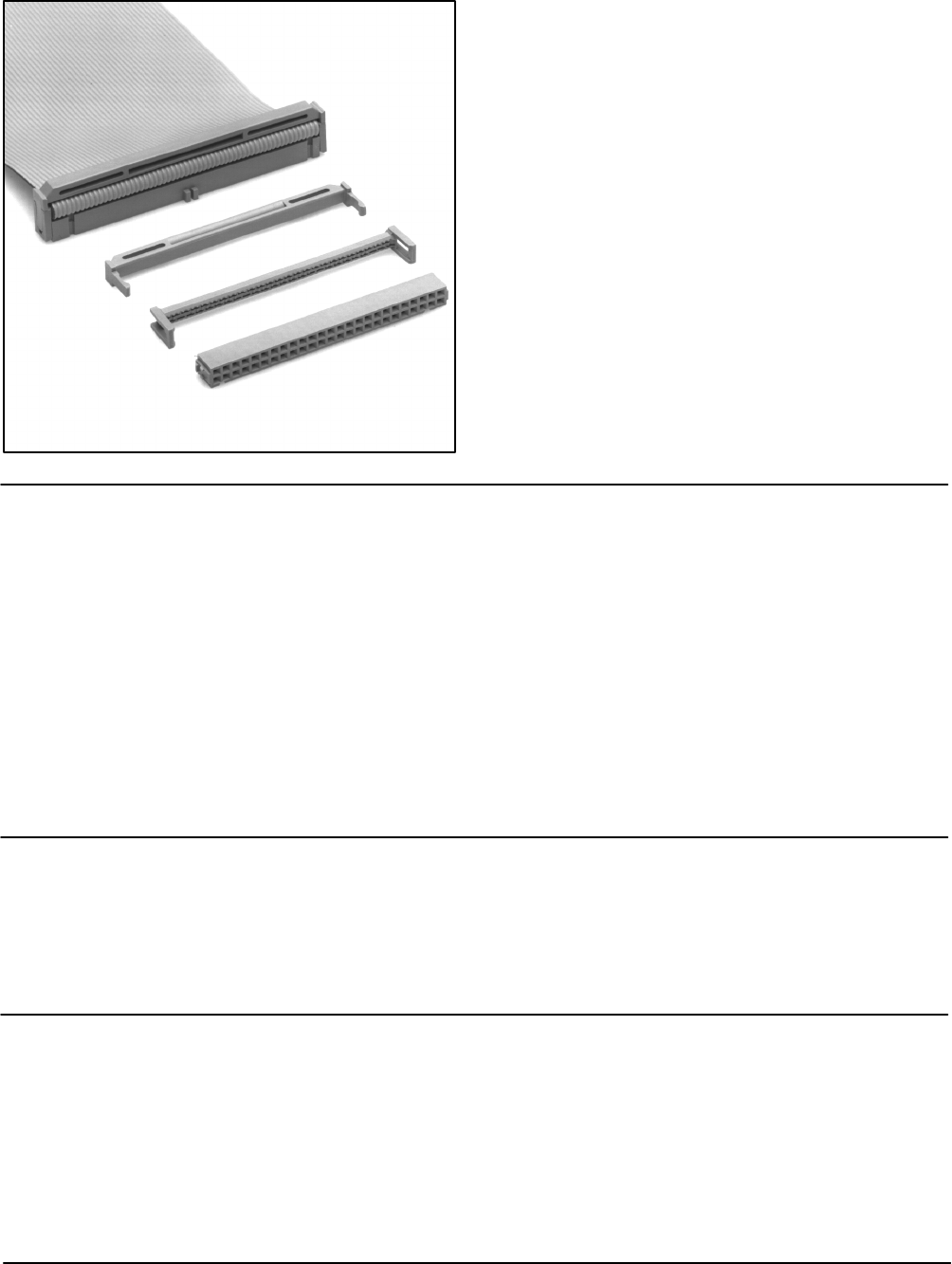

3M Pak 100 Preassembled Wiremount Socket
.100″×.100 for .050 Pitch Cable 891 Series
TS-0449-18
Sheet 1 of 2
S Preassembled, terminates faster than
two-piece sockets
S ‘Sword’ packaging makes easy loading of
manual and semi-automatic assembly equipment
S ‘Bumps’ prevent premature latch locking
during shipment
S Optional double-sided adhesive pull tab for
easy unplugging
S Double-recessed cover for cable terminating
from either side eliminates need for
single-recessed cover connectors
Date Modified: May 17, 2004
Physical
Insulation
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact
Material: Phosphor Bronze (C510)
Plating
Underplating: 100 µ″ [2.54µm ] Nickel QQ-N-290, Class 2
Wiping Area: 30 µ″ [0.76µm ] Gold MIL-G-45204, Type II, Grade C
Wire Accommodation: 26 & 28 AWG Stranded
Marking: 3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating: 1A
Insulation Resistance: >1× 10
9
at 500 Vdc
Withstanding Voltage: 1000 Vrms at Sea Level
Environmental
Temperature Rating: -- 5 5 °C to +105°C
UL File No.: E68080
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M Pak 100 Preassembled Wiremount Socket
.100″×.100 for .050 Pitch Cable 891 Series

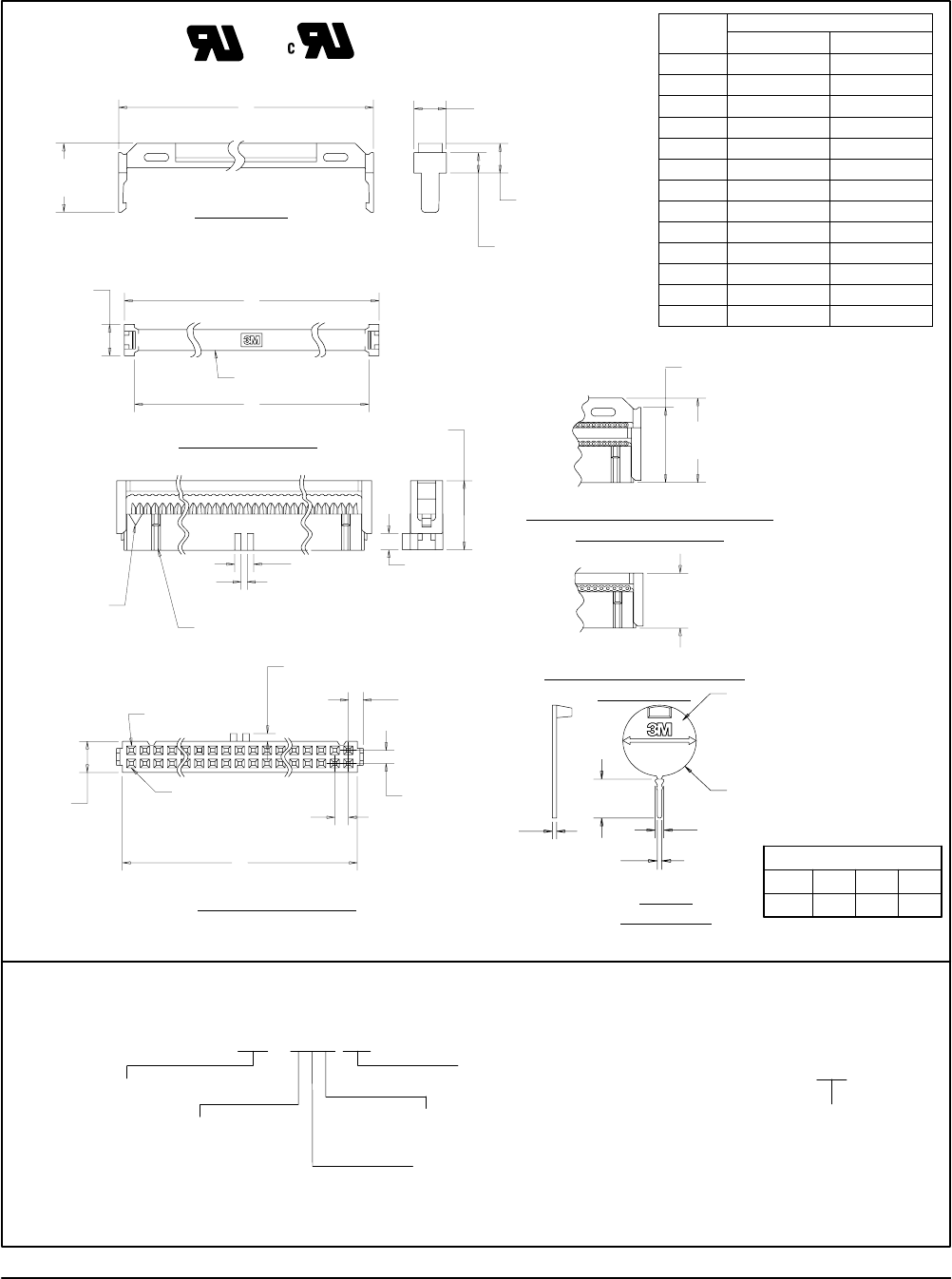

Contact
Dimensions
C
o
n
t
a
c
t
Quantity
A B
10 .68[17.3] .53[13.5]
14 .88[22.4] .73[18.5]
16 .98[24.9] .83[21.1]
20 1.18 [ 30.0 ] 1.03 [ 26.2 ]
24 1.38 [ 35.1 ] 1.23 [ 31.2 ]
26 1.48 [ 37.6 ] 1.33 [ 33.8 ]
30 1.68 [ 42.7 ] 1.53 [ 38.9 ]
34 1.88 [ 47.7 ] 1.73 [ 43.9 ]
36 1.98 [ 50.3 ] 1.83 [ 46.5 ]
40 2.18 [ 55.4 ] 2.03 [ 51.6 ]
44 2.38 [ 60.5 ] 2.23 [ 56.4 ]
50 2.68 [ 68.1 ] 2.53 [ 64.1 ]
60 3.18 [ 80.0 ] 3.03 [ 80.0 ]
Strain Relief
(Order Separately)
3448-891XX
Contact Quantity:
See Table
Sockets
891XX-0XXXXX
Contact Quantity:
See Table
Polarization Options:
0 = Without Centerbump
1 = With Centerbump
Strain Relief Options:
1 = Without Strain Relief
Package Style Options:
0 = Preassembled
1 = Two Piece Outside Bandolier
Inch
[mm]
±.005±.1 ±.01
Tolerance Unless Noted
.0 .00 .000
Inch
[ ] Dimensions for
Reference only
Top View of Cover
Bottom View of
Body
.240
[6.10]
.22
[5.7]
.15
[3.9]
A
Strain Relief
.53
[ 13.4 ]
A
.240
[6.10]
B
Recessed for
Cable Exit
.53
[ 13.4 ]
.200
[5.08]
.14
[3.6]
.05
[1.2]
Triangle
Indicates
Position 1
Dual Polarization
Slots
Position 1
.240
[6.10]
Position 2
.100
[2.54]
Typ
.11
[2.8]
.032
[0.81]
.026
[0.66]
.24
[6.1]
.051
[1.30]
B
Color: Gray
Breakaway
Tab
Assembled Height Without
Strain
Relief
.42 Ref
[ 10.6 ]
.64 Ref
[ 16.3 ]
.57 Ref
[ 14.5 ]
Assembled Height with Standard
Plastic Strain
Relief
343
5
.100 Typ
[2.54]
.06 Centerbump
[ 1.5 ] (Optional)
3435-0
Keying
Plug
(Optional: Order Separately)
Ordering Information
TS-0449-18
Sheet 2 of 2
Plating Option:
HA = 15 µ″ [0.38µm]Gold
with 30 µ″ [0.76µm ] Nickel
Note: See TS-0721 for mating post pattern.
Pull Tabs
(Order Separately)
See TS-0496.
Assembly tools: 3640 press (or equivalent), 3443--107N locator plate, 3442--9 platen.
