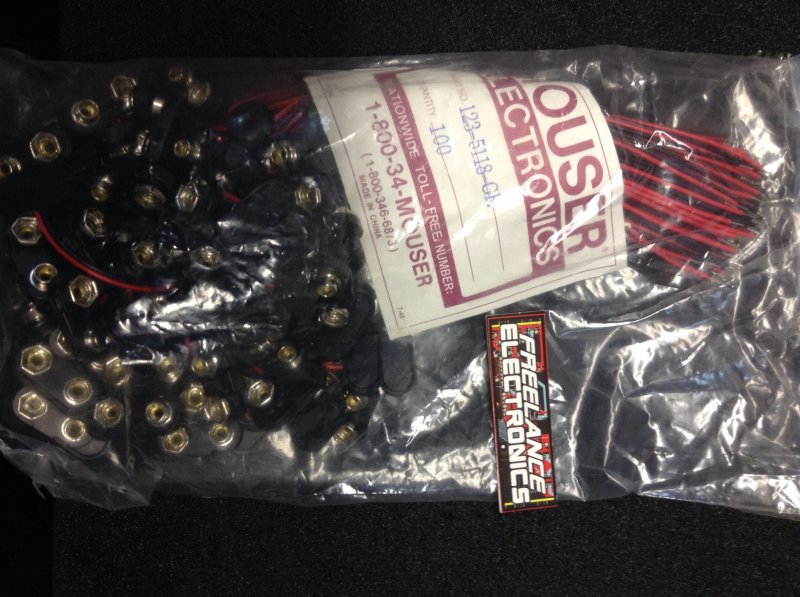

MOUSER ELECTRONICS 123-5118-GR

Cross Number:

Item Description: 9V Battery Snaps & Contacts BATT SNAP T-8
Additional Information:

Qty Price
1 - 199 $0.17838
200 - 399 $0.14190
400 - 599 $0.13379
600 - 799 $0.12433
800 + $0.11081





Related Items

MOUSER
MISC

123-5006

$0.26400
AMP
CONNECTOR

0-0176763-1


AMP
CONNECTOR

0-0822475-2


AMP
CONNECTOR

0-0925486-1

$1.50480
KYOCERA
CONNECTOR

00-6200-506-130-000+

$0.37488
ELCO CORP.
CONNECTOR

00-7008-047-163-100

$17.04516


Manufacturer Date Code Qty Available Qty
MOUSER ELECTRONICS
  • Freelance Stock: 400
    Ships Immediately


MOUSER ELECTRONICS
  • Freelance Stock: 253
    Ships Immediately


MOUSER ELECTRONICS
  • Freelance Stock: 200
    Ships Immediately


SEE NOTES
  • Freelance Stock: 99
    Ships Immediately







Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Housing: molded ABS plastic
Wire: stripped & tinned (26 AWG)
Operating temperature range: 32°F~176°F
Snaps: nickel plated brass (6 prong)
Conductor: copper (tin overcoated)
Ring terminals: copper
Life cycle: 400 insertions
RoHs Compliant
Dimensions: mm (in.)
Battery Snaps
123-5114-GR, 123-5116-GR, 123-5118-GR
Available from Mouser Electronics
1-800-346-6873
www.mouser.com
EPD-200748
Date Last Revised: 10-06-08
SPECIFICATIONS
13
(.512)
12.6±.50
(.496±.02)
Black (-)
Red (+)
A
24.9±.50
(.983±.02)
7.5±.50
(.295±.02)
3.8±.50
(.15±.02)
Mouser
Stock No.
123-5114-GR
123-5116-GR
123-5118-GR
Dim. A(in.)
±.118
3.94
5.9
7.87
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
