Name: 8609-264-61-14-755-000
SKU: 8609-264-61-14-755-000

8609-264-61-14-755-000

Part #

8609-264-61-14-755-000

Description

Category

CONNECTOR

Availability

Out of Stock

Qty

Technical Document

DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

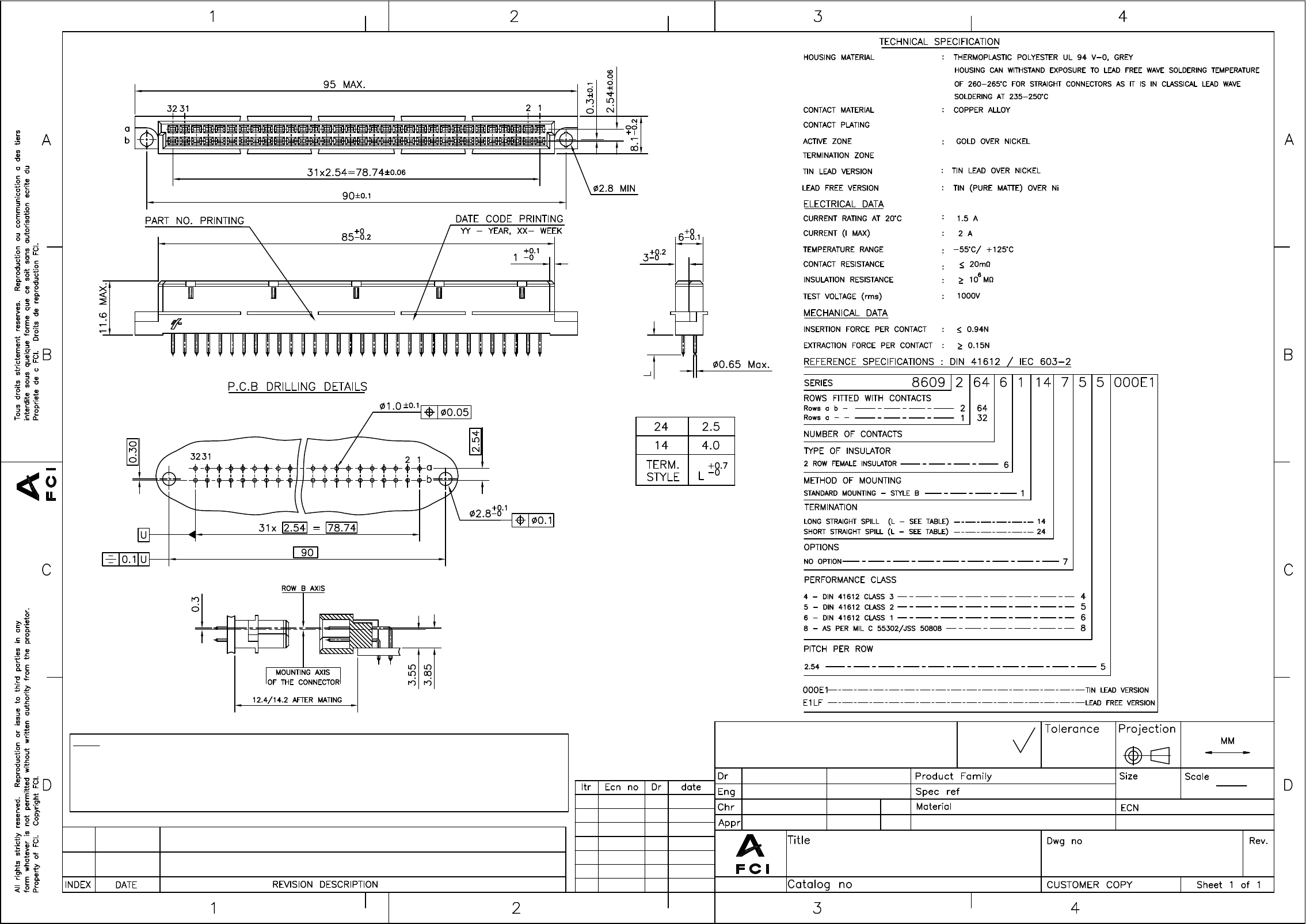

LINEAR ±0.1

C-8609-2020

K Somasundaram

Mini K Vandanath

Rakhee George

D\ENGG\EURO\8609

Rakhee George

19/05/2005

22/09/2004

SEE TECH. SPEC.

ANGULAR ±1°

8609

(STRAIGHT SPILL DIN41612 STYLE-B)

DIN STANDARD RECEPTACLE

a 22/09/2004

DRAWING NO. WAS C-8609-0107 REV.c

MINI

I04-0100

09/11/2004

8609---61147-5XXXXX, 8609---61247-5XXXXX

b 19/05/2005

TECHNICAL SPECIFICATION MODIFIED AND LEAD FREE NOTE ADDED.

I05-0042 MINI

19/05/2005

8609 XXX XX XX XXX XXXXX YY XX

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

PDM: Rev:B Released .STATUS: Printed: Sep 09, 2005

8609-264-61-14-755-000
