.050Mini D Ribbon (MDR) Connectors
IDC Wiremount Panelmount Receptacle — Shielded 102XX-0210EC Series
90
IDC wiremount shielded I/O Panelmount
receptacle
Ribbon type contact — industry preferred
Reliable repetitive plugging/unplugging
Latch design for easy use
Accepts a wide variety of cable types including
flat 050 and .025, shielded flat, round and
twisted pair
IEEE 1284 interface — 36 position
Positions: 20, 26, 36, 40, 50 and 68
TS-0425-08
Sheet 1 of 2
Date Modified: February 19, 1999
Physical
Insulation
Material:Glass Reinforced Polyester (PBT)
Flammability:UL 94V-0
Color:Black
Contact
Material:Beryllium Copper (C172)
Plating
Underplate:80 µ (2.0 µm) Nickel — QQ-N-290, Class 2
Wiping Area:30 µ (0.76 µm) Min Gold — MIL-G-45204, Type II, Grade C
Body
Material:Zinc Alloy
Plating:Nickel
Shroud
Material:Steel
Plating:Nickel
Wire Accommodation:28 AWG Stranded, 30 AWG Solid
Marking:3M Logo and Part Identification Number
Electrical
Current Rating:1 A
Insulation Resistance:> 5 × 10
8
Withstanding Voltage:500 Vrms for 1 Minute
Environmental
Temperature Rating:–20°C to +85°C
UL File No.:E68080
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.050Mini D Ribbon (MDR) Connectors
IDC Wiremount Panelmount Receptacle — Shielded 102XX-0210EC Series
Contact
Qi
Dimensions
Contact
Quantity
A B C D E F G

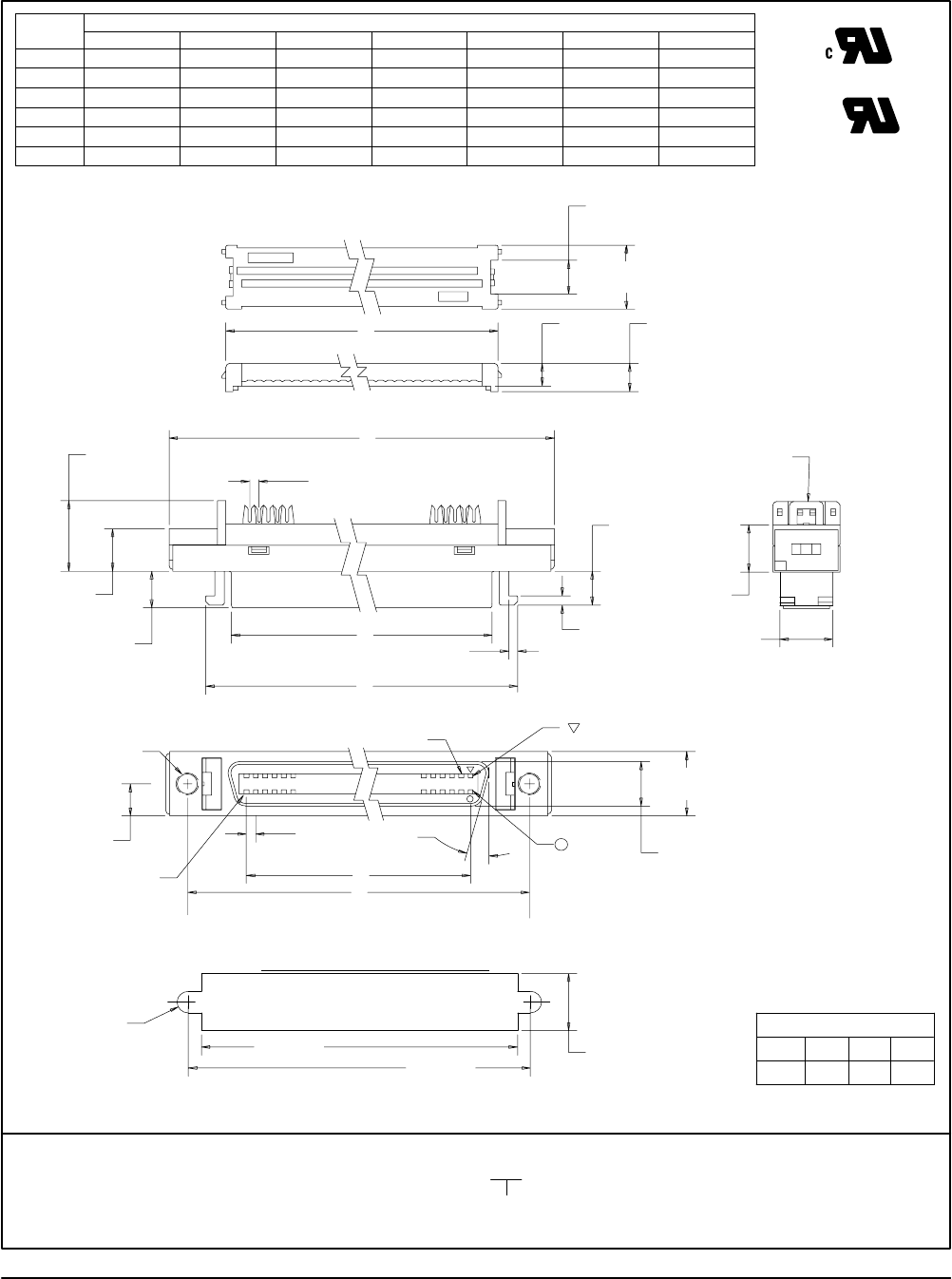

20 .450 [ 11.43 ] 1.081 [ 27.45 ] 1.31 [ 33.4 ] .65 [ 16.4 ] .92 [ 23.4 ] .71 [ 18.0 ] .94 [ 23.8 ]
26 .600 [ 15.24 ] 1.231 [ 31.26 ] 1.46 [ 37.2 ] .80 [ 20.2 ] 1.07 [ 27.2 ] .86 [ 21.8 ] 1.09 [ 27.6 ]
36 .850 [ 21.59 ] 1.481 [ 37.61 ] 1.71 [ 43.5 ] 1.05 [ 26.6 ] 1.32 [ 33.5 ] 1.11 [ 28.1 ] 1.33 [ 33.9 ]
40 .950 [ 24.13 ] 1.581 [ 40.15 ] 1.81 [ 46.1 ] 1.15 [ 29.1 ] 1.42 [ 36.1 ] 1.21 [ 30.7 ] 1.44 [ 36.5 ]
50 1.200 [ 30.48 ] 1.831 [ 46.50 ] 2.06 [ 52.4 ] 1.40 [ 35.5 ] 1.67 [ 42.4 ] 1.46 [ 37.0 ] 1.69 [ 42.8 ]
68 1.650 [ 41.91 ] 2.281 [ 57.93 ] 2.51 [ 63.8 ] 1.85 [ 46.9 ] 2.12 [ 53.8 ] 1.91 [ 48.4 ] 2.13 [ 54.2 ]
102XX
15°
B ± .004
G ± .004
TS-0425-08
Sheet 2 of 2
Ordering Information
102XX-0210EC
Contact Quantity
(See Table)
Recommended Panel Cut-Out
R .060
[ 1.52 ]
Note: Panel Thickness .079 [ 2.00 ] max.
.319
[ 8.10 ]
Last Position
.18
[ 4.6 ]
M 2.5 (2x)
A
.050
[ 1.27 ]
.25
[ 6.3 ]
.36
[ 9.1 ]
Position 1
Position 2
E
.05
[ 1.3 ]
D
.05
[ 1.3 ]
.27
[ 6.9 ]
.28
[ 7.2 ]
.19
[ 4.8 ]
.20
[ 5.2 ]
.22
[ 5.6 ]
.050
[ 1.27 ]
.39
[ 10.0 ]
B
C
Assembled
View
.13
[ 3.2 ]
.16
[ 4.0 ]
.36
[ 9.1 ]
.19
[ 4.8 ]
F
Inch
[mm]
± .005± .1 ± .01
Tolerance Unless Noted
.0 .00 .000
Inch
[ ] Dimensions for
Reference only
Position
