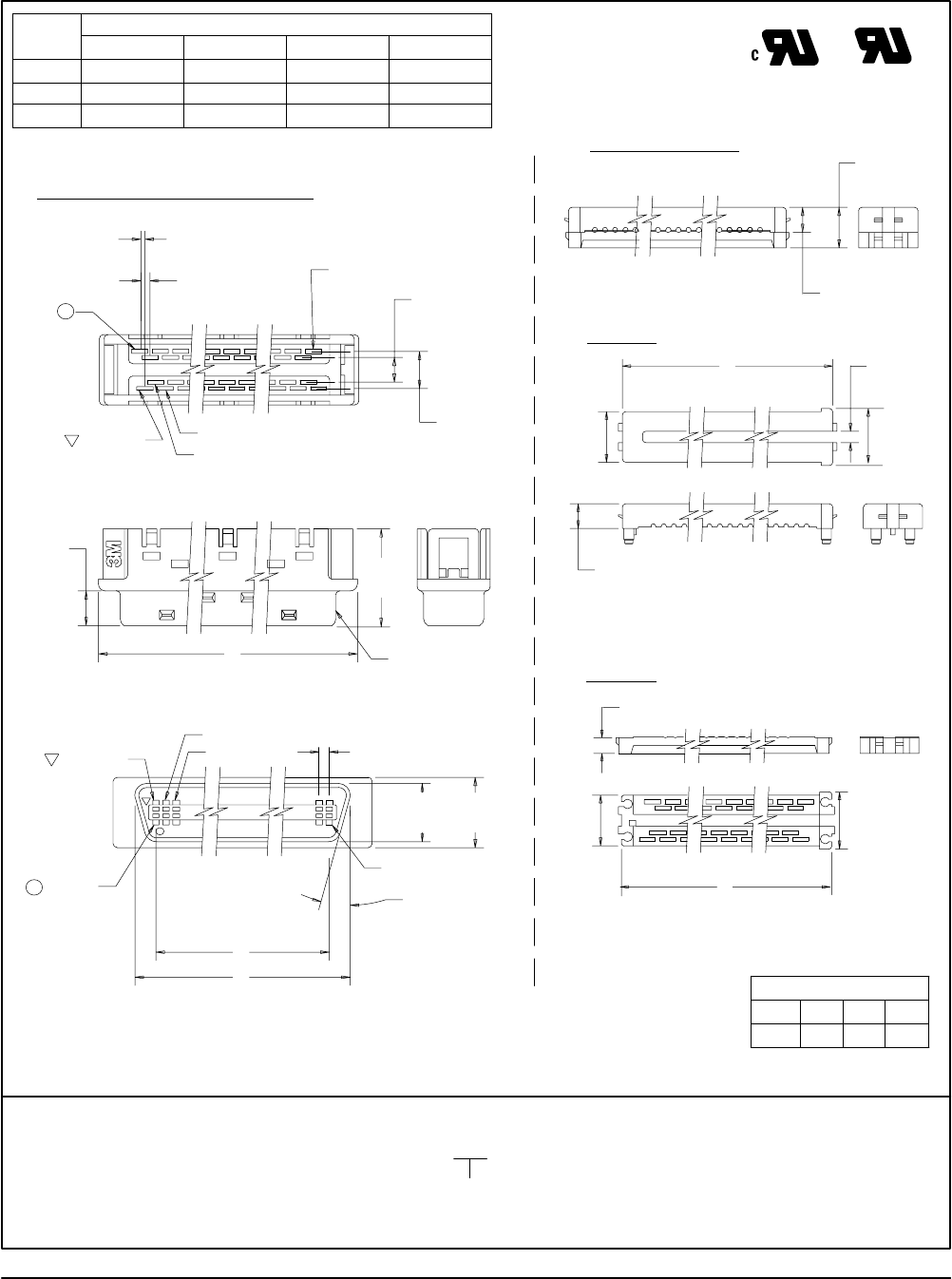

.050Mini D Ribbon (MDR) Connectors
IDC Wiremount Plug — Shielded 101XX-6000EC Series
89

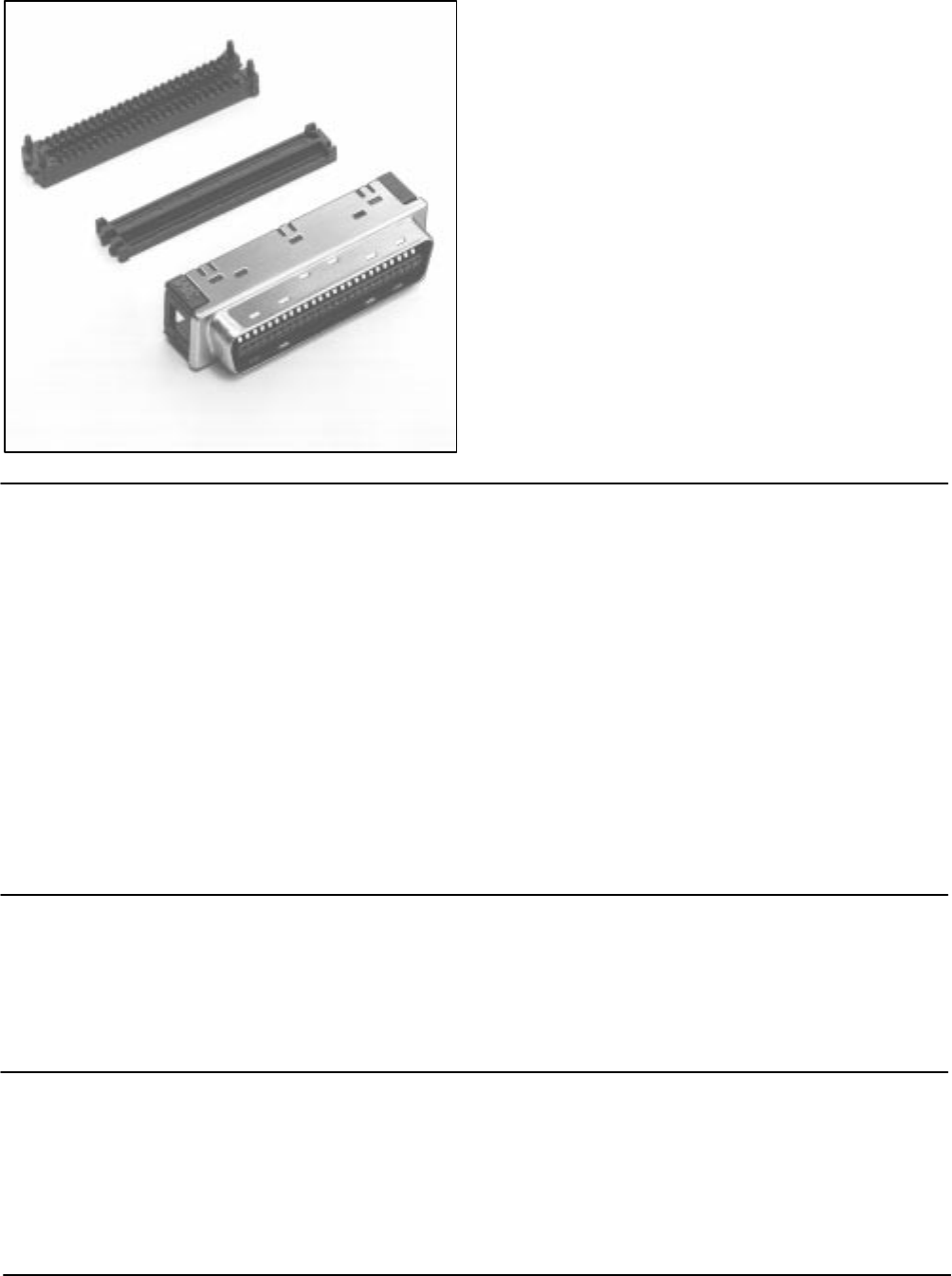

IDC wiremount shielded I/O plug connector
MDR-digital LCD interface — 20 and 26
position
IEEE 1284 interface — 36 position
Ribbon type contact — industry preferred
Reliable repetitive plugging/unplugging
Accepts a wide variety of cable types including
round, twisted pair, twinax, and flat cable
Available with a variety of shielded junction
shells
Positions 14, 20, 26, 36, 40, 68, 80 and 100
TS-0423-07
Shee1 of 3
Date Modified: February 19, 1999
Physical
Insulation
Material:Glass Reinforced Polyester (PBT)
Flammability:UL 94V-0
Color:Black
Contact
Material:Beryllium Copper (C172)
Plating
Underplate:80 µ (2.0 µm) Nickel — QQ-N-290, Class 2
Wiping Area:30 µ (0.76 µm) Min Gold — MIL-G-45204, Type II, Grade C
Shroud
Material:Steel
Plating:Nickel
Wire Accommodation:28 AWG Stranded, 30 AWG Solid
Marking:3M Logo & Part Number
Electrical
Current Rating:1 A
Insulation Resistance:> 5 × 10
8
at 500 VDC
Withstanding Voltage:500 VRMS for 1 Minute
Environmental
Temperature Rating:–20°C to +85°C
UL File No.:E68080
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.050Mini D Ribbon (MDR) Connectors

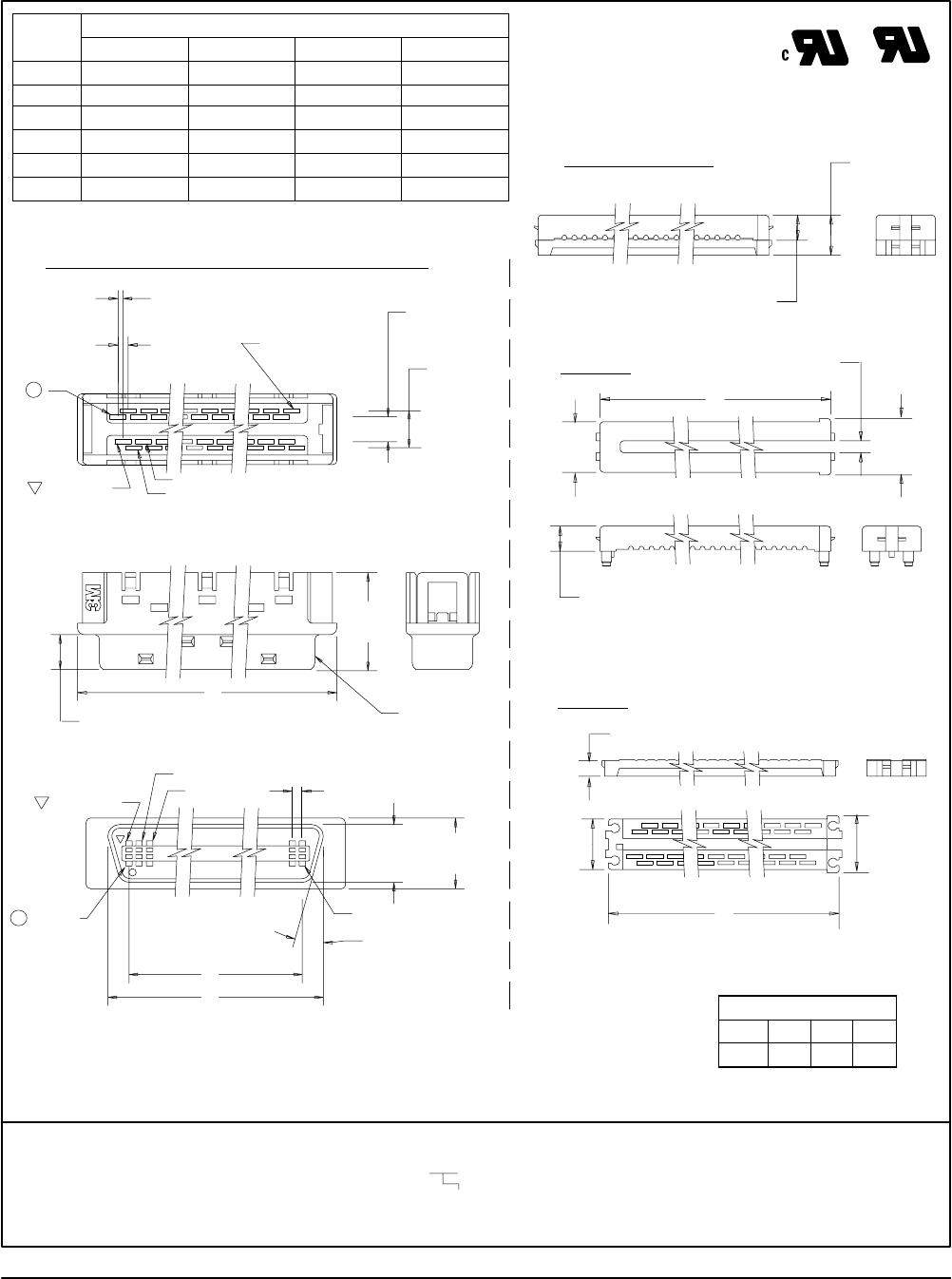

IDC Wiremount Plug — Shielded 101XX-6000EC Series
Contact
Dimensions
C
on
t
ac
t
Quantity
A B C D
14 .300 [ 7.62 ] .54 [ 13.8 ] .72 [ 18.2 ] .58 [ 14.7 ]
26 .600 [ 15.24 ] .84 [ 21.4 ] 1.02 [ 25.8 ] .88 [ 22.4 ]
50 1.200 [ 30.48 ] 1.44 [ 36.6 ] 1.62 [ 41.1 ] 1.48 [ 37.6 ]
101XX
Notes:
1. Circle () position indicates #1 position in cable, when utilizing 0.025 pitch flat cable.
2. Triangle () position indicates #2 position in cable, when utilizing 0.025 pitch flat cable.
15°
Inch
[mm]
± .005± .1 ± .01
Tolerance Unless Noted
.0 .00 .000
Inch
[ ] Dimensions for
Reference only
.13
[ 3.2 ]
.21
[ 5.2 ]
.025
[ 0.64 ]
.050
[ 1.27 ]
Last
Position
.126
[ 3.20 ]
.26
[ 6.6 ]
D
.06
[ 1.5 ]
.29
[ 7.4 ]
.13 [ 3.20 ]
.189
[ 4.80 ]
Position 3
Position 2
Position 1
.18
[ 4.5 ]
C
.50
[ 12.7 ]
Body
.08 [ 2.0 ]
.26
[ 6.5 ]
.29
[ 7.3 ]
.30
[ 7.5 ]
.36
[ 9.1 ]
Last Position
.050
[ 1.27 ]
Position 1
Position 2
Position 3
A
B
D
Ordering Information
101XX-6000EC
Contact Quantity
(See Table)
TS-0423-07
Sheet 2 of 3
(See Notes)
Cover 2
Cover 1
Body (14, 26 and 50 positions)
(see page 3 for
other sizes)
Position
Cover Assembly
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.050Mini D Ribbon (MDR) Connectors
IDC Wiremount Plug — Shielded 101XX-6000EC Series
Contact
Dimensions
Contact
Quantity
A B C D
20 .450 [ 11.43 ] .69 [ 17.6 ] .87 [ 22.0 ] .73 [ 18.6 ]
36 .850 [ 21.59 ] 1.09 [ 27.8 ] 1.27 [ 32.2 ] 1.13 [ 28.7 ]
40 .950 [ 24.13 ] 1.19 [ 30.3 ] 1.37 [ 34.7 ] 1.23 [ 31.3 ]
68 1.650 [ 41.91 ] 1.89 [ 48.1 ] 2.07 [ 52.5 ] 1.93 [ 49.0 ]
80 1.950 [ 49.53 ] 2.19 [ 54.8 ] 2.37 [ 60.1 ] 2.23 [ 56.7 ]
100 2.450 [ 62.23 ] 2.69 [ 67.5 ] 2.87 [ 72.8 ] 2.73 [ 69.4 ]
101XX
15°
Inch
[mm]
± .005± .1 ± .01
Tolerance Unless Noted
.0 .00 .000
Inch
[ ] Dimensions for
Reference only
Notes:
1. Circle () position indicates #1 position in cable, when utilizing 0.025 pitch flat cable.
2. Triangle () position indicates #2 position in cable, when utilizing 0.025 pitch flat cable.
Ordering Information
101XX-6000EC
.13
[ 3.30 ]
.21
[ 5.33 ]
.06
[ 1.5 ]
D
.29
[ 7.4 ]
.26
[ 6.6 ]
.025
[ 0.64 ]
TS-0423-07
Sheet 3 of 3
.13
[ 3.20 ]
.126
[ 3.20 ]
.189
[ 4.80 ]
Last
Position
.050
[ 1.27 ]
Position 1
Position 3
Position 2
.08 [ 2.0 ]
.50
[ 12.7 ]
Body
Position 1
Position 2
Position 3
.30
[ 7.5 ]
.36
[ 9.1 ]
.26
[ 6.5 ]
.29
[ 7.3 ]
D
Last
Position
.050
[ 1.27 ]
A
B
Contact Quantity
(See Table)
(See Notes)
.18
[ 4.5 ]
C
Cover 1
Cover 2
Body (20, 36, 40, 68, 80 and 100 positions)
Note: 100 pos = A0
