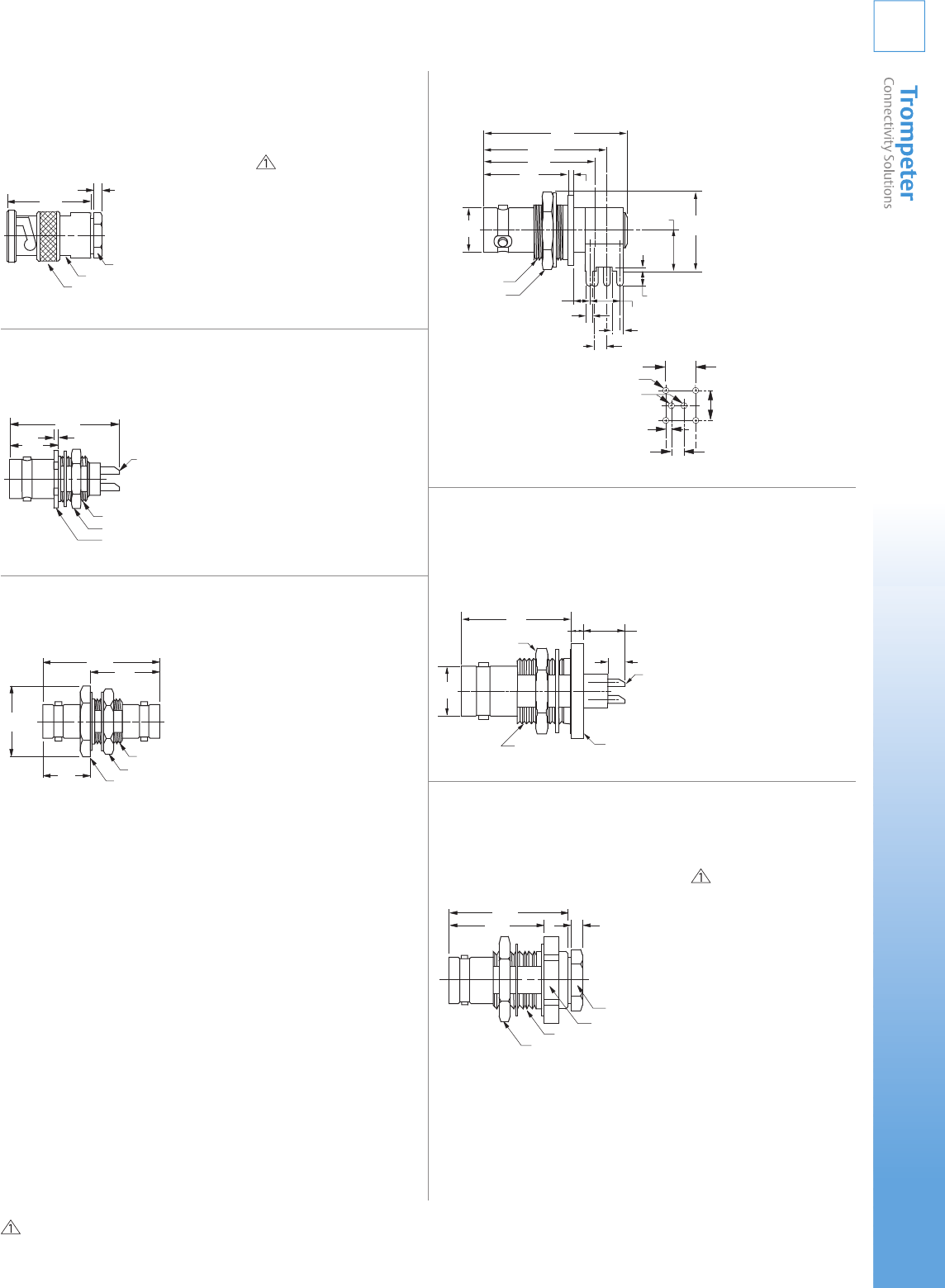

TWINAX/TRIAX CONNECTORS
23
Mounting Holes: DD8.156, DD8.125 (Threaded)
The 450 Series includes cable jacks and plugs with interchangeable
contact assemblies. The contact and body assemblies may be
ordered separately (see the facing page). Cable connectors accept
cables with a maximum outer diameter of .180" and conductors to
.025".
Contact customer service for exact specications. For Trompeter
connectors which meet outgassing requirements, contact our
technical support staff for more information. Compatible with
Raychem DK-621 Series. Refer to page 22 for Keyings.
Chain options see page 57. “D” mounting holes see page 54.
Pin/Socket ....PS450AC-
Assembly
Coupling Key Body Intermediate Socket
Type Code Assembly Only Contact Pin
3-lug P BJ459ACP- BJ459ACPP- BJ459ACPS-
3-lug R BJ459ACR- BJ459ACRP- BJ459ACRS-
3-lug W BJ459ACW- BJ459ACWP- BJ459ACWS-
4-lug FL BJ459ACFL- BJ459ACFLP- BJ459ACFLS-
Threaded - BJ3459AC- BJ3459ACP- BJ3459ACS-

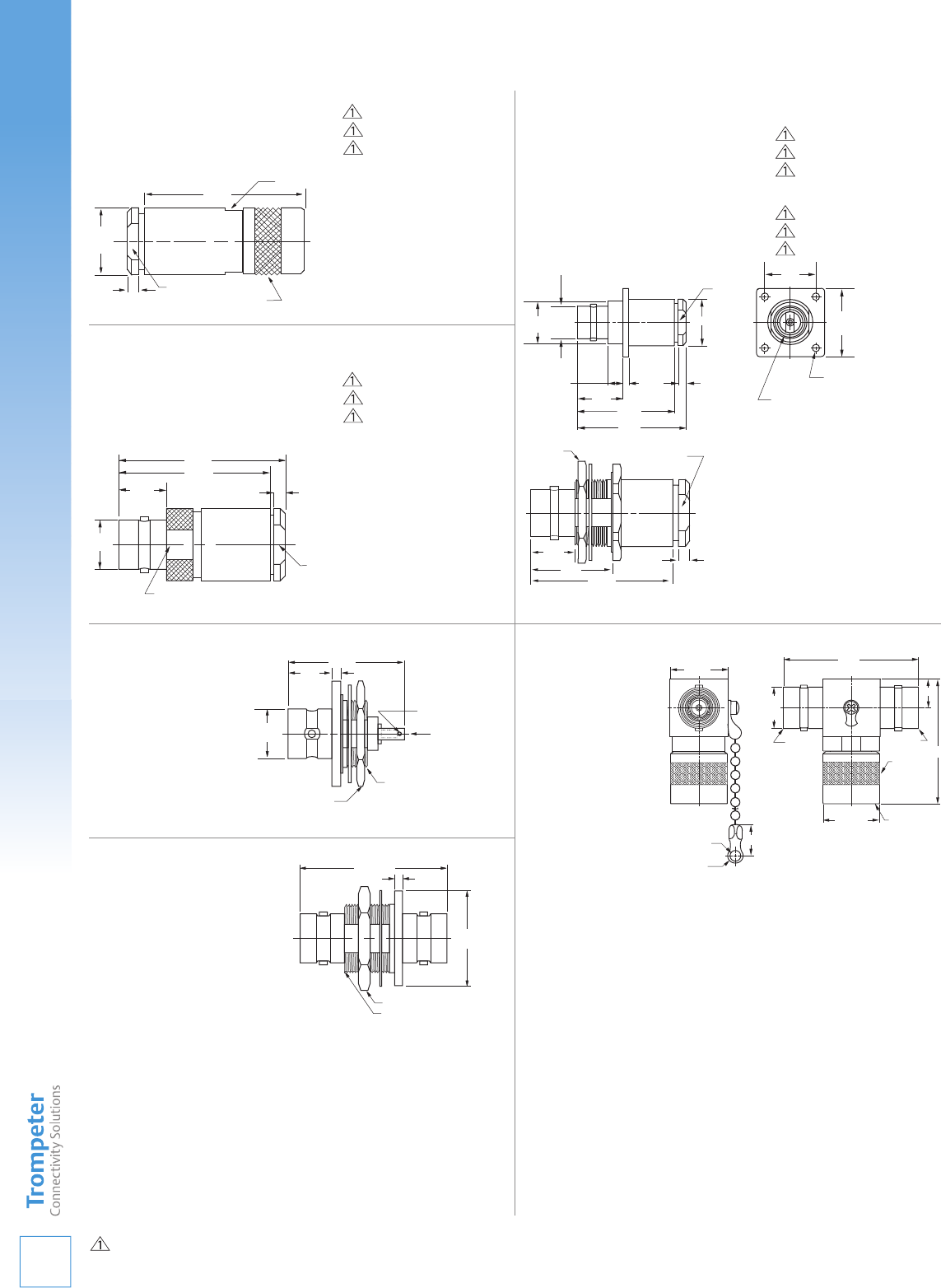

Cable Plug
All Crimp
RFI Plug Caps & Terminations
Plugs for use with 450 Series Jacks
Intermediate
Coupling RFI Contact Pin to Sockets to mate
Type Caps mate with Sockets with Pins
3-lug RFI455- TNG451P- -R TNG451S- -R
3-lug RFI455- TNG451P- -R TNG451S- -R
3-lug RFI455- TNG451P- -R TNG451S- -R
4-lug RFI455FL- TNG451FLP- -R TNG451FLS- -R
Threaded RFI3455- TNG3451P- -R TNG3451S- -R
450 Series
Intermediate Contact Assemblies
.4375 HEX NUT
.3125-32UNEF-2A
.047 SAFETY
WIRE HOLES-2 PLACES
.2400
DIA
.707
(1.25)
.030
1.365
.43 HEX
SEALING SLEEVE
(LONG)
.334
BJ459ACFL-202
CJ450ACFLP-202
.334
DIA
.2400
DIA
1.365
(1.25)
SEALING SLEEVE
.030
1.43
.030
SEALING
SLEEVE
1.25
.500 DIA OVER KNURL
.334
PL455ACR-221
Socket/Pin ....SP450AC-
Assembly
Coupling Key Body Intermediate Socket
Type Code Assembly Only Contact Pin
3-lug P PL455ACP- PL455ACPP- PL455ACPS-
3-lug R PL455ACR- PL455ACRP- PL455ACRS-
3-lug W PL455ACW- PL455ACWP- PL455ACWS-
4-lug FL PL455ACFL- PL455ACFLP- PL455ACFLS-
Threaded - PL3455AC- PL3455ACP- PL3455ACS-
Assembly
Coupling Key Body Intermediate Socket
Type Code Assembly Only Contact Pin
3-lug P CJ450ACP- CJ450ACPP- CJ450ACPS-
3-lug R CJ450ACR- CJ450ACRP- CJ450ACRS-
3-lug W CJ450ACW- CJ450ACWP- CJ450ACWS-
4-lug FL CJ450ACFL- CJ450ACFLP- CJ450ACFLS-
Threaded - CJ3450AC- CJ3450ACP- CJ3450ACS-
Twinax/Triax Connectors / Concentric Twinax
450 Series
Twinax/Triax Connectors / Concentric Twinax
450 Series
Bulkhead Cable Jack
Rear mount, All Crimp
Cable Jack
All Crimp
