TOOLS & ACCESSORIES

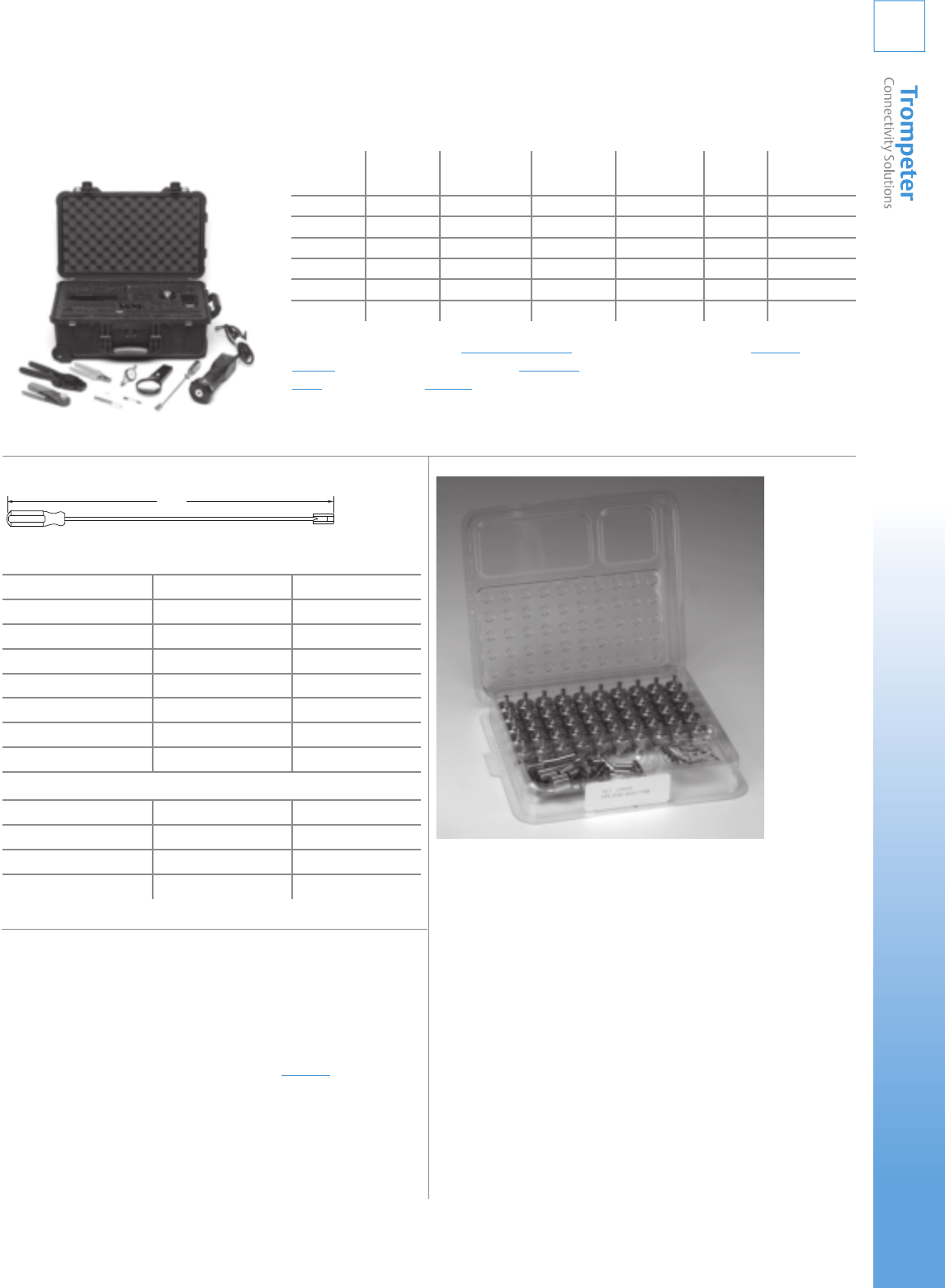

BNC Bulk Packaging

Bulk packaging for UPL220 Series BNC plugs ... Trompeter offers

Tool Crimp BNC's bulk packed in convenient vacuum-formed

plastic trays. Bulk packaging is perfect for OEM and high-volume,

on-site installations.

Includes:

(50) Body Assemblies

(51) Crimp Sleeves

(52) Center Contact Pins

Assembly Instructions

Example: UPL220-026/T50

BNC part number, Vacuum Tray part number

For cable groups see pages 78-120. (Not available for cable groups -017)

BNC Coax Assembly Training Video

Trompeter has produced a video which outlines the major

features of our BNC design, describes the tools for reliable

installation, and gives step-by-step assembly instructions.

The BNC Assembly Video CD is available at no cost to Trompeter

Customers.

For additional information or for a free demonstration, contact

your local Sales Representative log on to our web site at

www.EmersonConnectivity.com and locate the rep nearest

you.

LENGTH

Tool Kit & Bulk Packaging

Tool Kits

Tools & Accessories

Tool Kit Part

Number

Pin Height

Indicator

Crimp Tool

8-Point Indentor

Crimp Tool

12-Point

Indentor

BNC/Mini-WECo

Electrical Gauge

Crimp Die Center Contact

Gauge

TK4NL-1 UPLCG-1 010-0097 Not Included Not Included CD3-19 Not Included

TK4NL-1A UPLCG-1 010-0097 Not Included Not Included CD3-19 Not Included

TK4NL-2 UPLCG-1 Not Included 010-0098 Not Included CD3-19 Not Included

TK4NL-3 UPLCG-1 010-0097 010-0098 Not Included CD3-19 Not Included

TK4NL-4 Not Included 010-0097 Not Included 010-0108 CD3-19 Not Included

TK4NL-5 Not Included Not Included 010-0080 010-0108 CD3-19 010-0101

All Tool Kits Include: Case, BCS Cable Stripper with BCS Cutter heads (one C24T3D and one

C24T3I), Cable Cutter (part number 700-0024), and Ergonomic Crimp Tool w/long handle

CT4L with Crimp Die CD3-19 embosses the die cavity size on the crimp sleeve either .178

or .255. Contact customer service for custom tool kits.

BNC/TRB Cable Plug

Type Length

RT1XL straight 22.00"

RT1L straight 12.00"

RTR-1L right angle 12.00"

RTR-1XL right angle 22.00"

RT1S straight 6.00"

RT1SS straight 3.75"

RTC-1L (insulated) straight 12.00"

TPS, TCM, TRS, TTM, MBNC

Type Length

RT4L straight 12.00"

RT4S straight 6.00"

RTC-4L (insulated) straight 12.00"

APPENDIX

TWCP = Twinax Plenum Cable

TWCH = Twinax Blue Flame Retardant Halogen Free Polyolen

Cable

TRCH = Triax Yellow Flame Retardant Halogen Free Polyolen

Cable

Trompeter cables are manufactured to the listed specications

and offer optimum exibility, shielding, and performance. Cables

with stranded center conductors have greater exibility and are

recommended for short runs at low frequency where constant

cable movement might fatigue a single copper-weld center

conductor. Trompeter’s M17/176-00002 and TWAC-78-1F2 are

200°C, Hi-Temp Cables for MIL-STD-1553B data bus applications.

Dielectric and llers made of PTFE (Teon™) and outer jackets

are PFA (Peruoroalkoxy). All dimensions are in inches. All

values without tolerances are nominal unless otherwise stated.

TWCH-78-2 has jacket constructed of ame retardant halogen free

polyolen with temperature range of -30°C to +80°C.

For high temperature cables, see chart on the next page.

Coax Cable Specs

Exploded Detail of Coax, Twinax, & Triax

Cable

JACKET

CENTER

CONDUCTOR

DIELECTRIC

BRAID

CENTER

CONDUCTOR

DIELECTRIC

INNER BRAID

DIELECTRIC

OUTER BRAID

JACKET

INNER

CONDUCTORS

DIELECTRIC

OUTER SHIELD

FILLER

JACKET

Coax

Twinax

Triax

Trompeter Cable Specifications

Appendix

Cable Designation TCC-50-2 TCC-75-2 RG62 A/U

Impedance (Ohms) 50±2 75±3 93±5

Nominal outer dia. 0.195 0.242 0.242

PVC outer Green Violet Black

Braid outer dia. 0.150 Max 0.191 Max 0.191 Max

Braid AWG#/Mat'l 36/Tinned Cu 34/Bare Cu 34/Bare Cu

Dielectric outer dia. 0.116 0.146 0.146

Dielectric mat'l Solid PE Foamed PE PE

Conductor outer dia. 0.0355 0.031 0.0253

Conductor strands/Mat'l 19/.0071 Tinned

7/.010 Tinned

Solid/CCS

Operating temperature

range

-40°C to 90°C -40°C to 85°C -40°C to 80°C

Minimum bend radius 1.00 1.00

Max. Opr. VAC (RMS) 1.4 KV 800 V 750 V

Capacitance pf/ft (Max) 30.8 17.3 14.5

Cond. Loop Res.

(Ohms/M ft.)

17.6

Atten. dB/100 ft:

1 MHz 0.380 0.335 0.250

10 MHz 1.400 1.070 0.900

50 MHz 3.40 2.40 1.90

100 MHz 4.90 3.40 2.80

200 MHz 7.30 4.85 3.70

400 MHz 9.00 5.20

1 GHz 28.80 12.00 8.50

3 GHz 30.00

Shielded Coverage 93% 93% 94.3% Min

APPENDIX

Twinax/Triax Cable Specs

Trompeter Cable Specifications

Appendix

Twinax Triax

Cable

Designation

TWC-78-1 TWC-78-2 M17/176-

00002

TWAC-78-

1F2

TWC-124-

TWC-124-2 TRC-50-1 TRC-50-2 TRC-75-1 TRC-75-2

Impedance

(Ohms)

78±3 78±3 77±7 77±7 124±4 124±4 50±2 50±2 75±5 75±5

Nominal outer

dia.

0.150 0.242 0.129 0.095 0.150 0.245 0.156 0.245 0.189 0.245

Outer braid

dia.

0.108 0.195 Max 0.102 0.070 0.105 0.195 Max 0.121 0.210 Max 0.150 0.205

Core outer dia. 0.085 0.154 0.084 0.052 0.085 0.162

Dielectric

outer dia.

0.043 0.076 0.042 0.026 0.043 0.080 0.047 0.116 0.073 0.116

Inner braid

outer dia.

0.069 Max 0.146 Max 0.093 0.146 Max

Inner jacket

outer dia.

0.101 0.175 0.130 0.175

Conductor

outer dia.

.022 0.0370 0.0230 Min. 0.0149 0.0120 0.0220 0.0150 0.0370 0.0120 .0185

Operating

temperature

Range

-40°C to

80°C

-40°C to

80°C

-55°C to

200°C

-55°C to

200°C

-40°C to

80°C

-40°C to

80°C

-40°C to

75°C

-40°C to

80°C

-40°C to

80°C

-40°C to

80°C

Minimum

bend radius

(in.)

1.50 Max 1.25 1.50 1.25 1.50 1.25 0.75 1.25 1.00 1.25

Max. Opr. VDC 0.6 KV Max

2.0 KV 0.6 KV 2.0 KV 2.0 KV 6.0 KV 2.0 KV 6.0 KV Max

Max. Opr. VAC

(RMS)

0.3 KV Max 1.0 KV 750 KV Max 250 0.3 KV 1.0 KV 1.0 KV 2.0 KV 1.0 KV 2.0 KV Max

Capacitance

pf/ft. (Max)

20.30 Max

(2)

21.20 (3) 24.00 23.00 12.40 12.30 (3) 29.50 32.00 (1) 20.00 20.50 (1)

Cond. loop

res.(Ohms/M

ft.)

179 Max 19.00 Max 48.00 146.00 570.60 56.80 Max

Atten. dB/100 ft.:

1 MHz 2.000 0.700 1.400 2.000 3.250 0.540 2.800 0.500 0.900 0.480

3 MHz 3.000 1.100 2.100 4.400 0.920 3.100 0.800 1.300 0.880

4 MHz 3.500 1.400 2.400 4.800 1.060 3.300 0.900 1.500 1.010

5 MHz 4.000 1.550 2.800 5.200 1.180 3.400 1.100 1.700 1.100

7 MHz 4.500 1.800 3.500 5.600 1.400 3.700 1.300 1.900 1.300

10 MHz 5.300 2.200 4.50 Max 6.500 5.900 1.650 4.100 1.500 2.400 1.500

20 MHz 7.50 3.10 8.30 2.30 5.50 2.30 3.60 2.30

30 MHz 9.20 3.90 10.20 2.80 7.00 2.90 4.50 2.90

40 MHz 10.60 4.50 11.80 3.20 7.50 3.40 5.40 3.30

50 MHz 11.90 5.10

13.20 3.60 9.10 3.90 6.10 3.60

100 MHz 16.80 7.50 18.70 5.10 14.00 5.80 9.70 5.20

200 MHz 23.70 10.50 26.40 7.20 22.00 8.80 16.50 7.60

500 MHz 37.50 16.00 41.70 11.40 40.00 15.30 28.50 10.80

700 MHz 44.30 18.60 49.40 13.50 50.00 18.00 36.00 14.70

1 GHz 53.00 22.50 59.00 16.20 63.00 23.00 45.00 17.60

Shi

elded

coverage

93% 93% 93.3% 90% Min. 93% 93% 93% Min. 93% 93% Min. 93%

Twist per ft. 8.00 4.00 11-14 16.00 8.00 4.00
