TOOLS & ACCESSORIES
63
Additional Accessories
Extra Cutter heads
See guide above
DC Driver Battery: Requires cutter head from above
BCS
AC Driver and AC Base Unit: Requires cutter head from above
ACS
Rapid Charger/Reconditioner
BRCC
Ni-Cad Battery Pack
ABP-NSA
AC Power Converter
ACC-NSA
8-Point Crimp Tool
75Ω Center Contact Pin (Handle Color)
BNC/Pl11 Patch Plugs (Red/Blue)................................... 010-0097
BNC Jack and plug (Blue)............................................... 010-0088
12-Point Crimp Tool
75Ω Center Contact Pin (Handle color)
BNC/TNC/Pl11 Patch Plug
(Green/yellow).............................................................. 010-0098
* Note: Dies imprint either cavity (A/B) or hex size onto crimp sleeve. Custom dies are available for special imprints.
For Standard and Miniature Twinax/Triax patching: 70 Series: TRB/TRT,
150 Series: TRS/TTM, 450 Series: 2-lug/3-lug/threaded connectors.

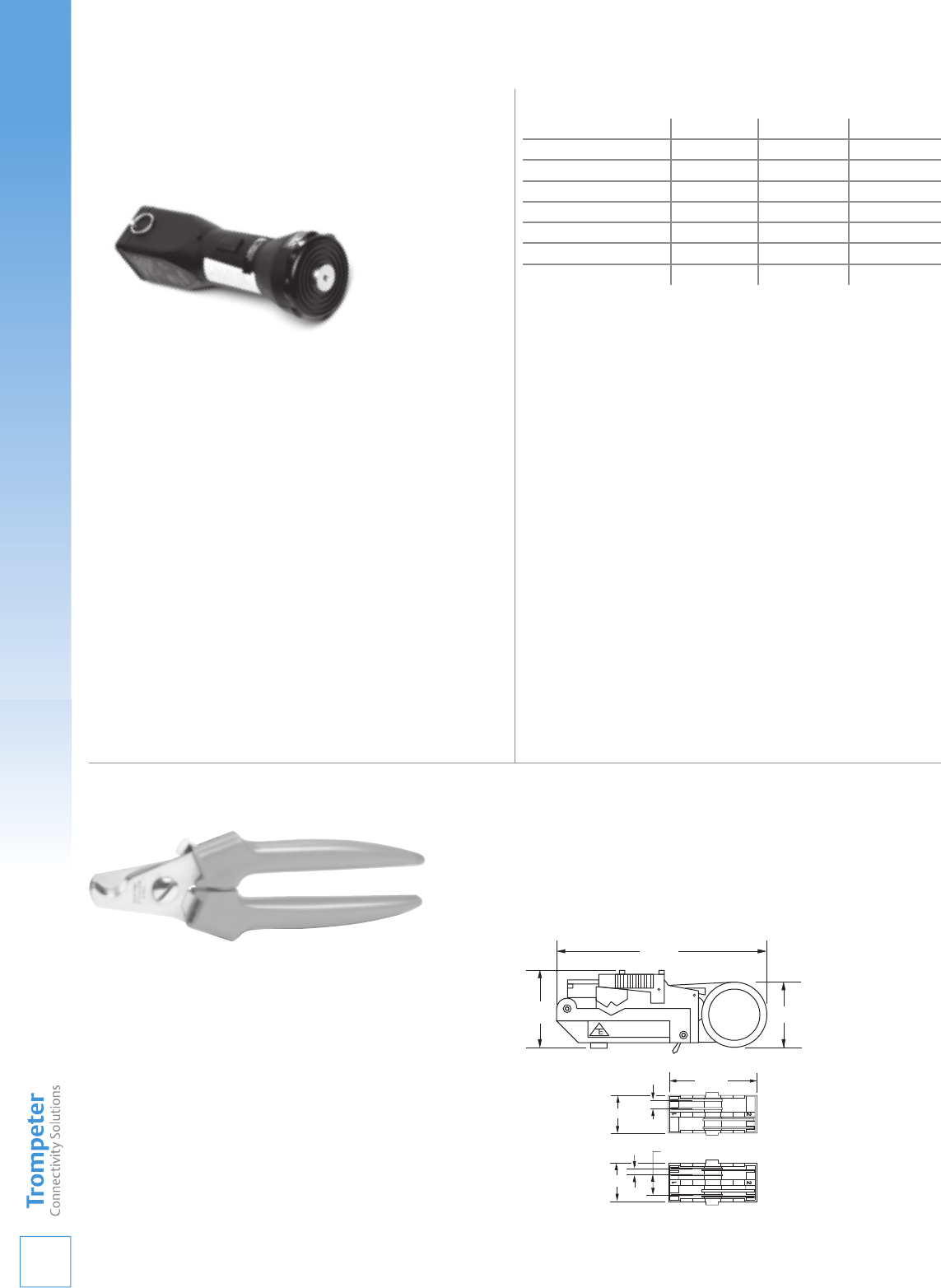

Crimp Tool
Die not included, for crimp dies see below
For crimp dies not listed, call customer service.
A Closure
B Closure
C Crimp
D Crimp
.175 DIA
2PL
.697
Max
1.260
.50
.236
CD3-1
.344 HEX CRIMP
.263 SHEILD CRIMP
CD5-8
CD5-8
(1.000)
CD5-8 SHOWN
.527
Crimp Tools
For crimp dies not listed or for special embossing, call customer service.
Tools & Accessories
Outer Sleeve A Embosses B Embosses
CD3-1 .213 1A .178 1B
CD3-19 .178 178 .255 255
Frame CT 5
Outer Sleeve A Embosses B Embosses
CD3-1 .213 1A .178 1B
CD3-2 .324 2A .255 2B
CD3-3 .344 3A .290 3B
CD3-5 - - .197 5B
CD3-19 - -
CD3-21 .290 290 .255 255
CD3-22 .404 404 .068 -
Twinax/Triax Crimp Tool
For Bushing/Shield
Crimp Tool Only....................................................... M22520/5-01
Crimp Tool with Die..................................... M22520/5-01/CD5-#
Connector Series Cable Type Cable Group # Bushing/Shield Crimp Die Center Contact Crimp Tool Part # Center Contact Positioner Part #
70C Twinax 201-225 CD5-8 M22520/1-01 010-0044 Pin (TP837)
010-0045 Socket (TP838)
PLR70C
PLR155AC
Triax 301-309 CD5-10
Small Body 150AC Twinax 201-206, 208, 209, 217-223 CD5-9 M22520/2-01 010-0041
Triax 301-304, 309 CD5-11
Large Body 150AC Twinax 207, 210, 211-216, 224-225 CD5-8 M22520/2-01 010-0043
Triax 305-306, 308 CD5-13
Triax 307 CD5-10 M22520/1-01 010-0044 Pin (TP837)
010-0045 Socket (TP838)
PL75MC Twinax 201-225 CD5-14 M22520/2-01 010-0096
226 CD5-15 M22520/2-01 010-0096
450AC Twinax 201-206, 208, 209, 212, 217-223 CD5-9 M22520/2-01 010-0041
PLR450 Twinax 201-206, 208, 209, 212, 217-223 CD5-120 M22520/2-01 010-0041
SPC8P Twinax 201-205, 217, 218, 221, 222 CD5-4 M22520/2-01 Daniels K709
SPC8S Triax 301-303 CD5-7
