COAX CONNECTORS

Mounting Hole: DD4.203

BJ98-2 Shown

Mounting Hole: DD4.50

Options available for panels up

to 2.25" thick. Call customer

service.

Mounting Hole: DD4.310 Mounting Hole: D5.310

Trompeter’s 90 Series incorporates many of the features of our BNC lines including 3-piece wrench crimp conguration, gold plated

captive center contacts, beryllium copper female contacts, and PTFE dielectrics. The 90 Series will also accommodate non-ammable

plenum coax cables.

1.274 OR 1.336

.500 OR .688

WRENCH FLATS

.438 OR .625 FLATS

.828 DIA MAX

.096 OR .130

1.863

3/4 HEX

3/4 HEX NUT

.625-24UNEF-2A

1.860

.833

.625-24UNEF-2A

.750 HEX NUT

.562 WRENCH FLATS

1.392

.462

.094

.250

.625-24 UNEF-2A

.750 HEX NUT

.437 HEX NUT

.312 FLATS

.800

DIA

1.287

.587

.406

.625-24UNEF-2A

.375-32UNEF-2A

SOLDER POT ACCEPTS

.064 DIA WIRE

.500 HEX NUT

.750 HEX NUT TYP

.875 MAX

.50

1.75

.625-24UNEF-2A

Mounting Holes: DD4.310

(Standard body)

DD1.310 (Cable Groups

-6A/6B/6E, -48, -50)

Coax Connectors / Coax Type N Connectors

90 Series

Cable Plug

Wrench Crimp

50Ω.............................................. PL95-

75Ω............................................ UPL95-

Large body versions

are available, contact

customer service.

Size depends on cable

group.

Adapter

BNC Female to N Female

50Ω................................................... AD95

75Ω................................................. UAD95

Insulated Adapter

BNC Female to N Mail

50Ω.................................................. ADI95

75Ω................................................ UADI95

Bulkhead Cable Jack

Wrench Crimp

50Ω.............................................. BJ95-

75Ω............................................ UBJ95-

Bulkhead Jack

Solder Pot

50Ω....................................................... J95

75Ω..................................................... UJ95

Feed-thru Jack

50Ω.................................................. BJ98-2

75Ω............................................... UBJ98-2

“D” mounting holes are on page 54.

Refer to Cable Group Tables, pages 74-91.

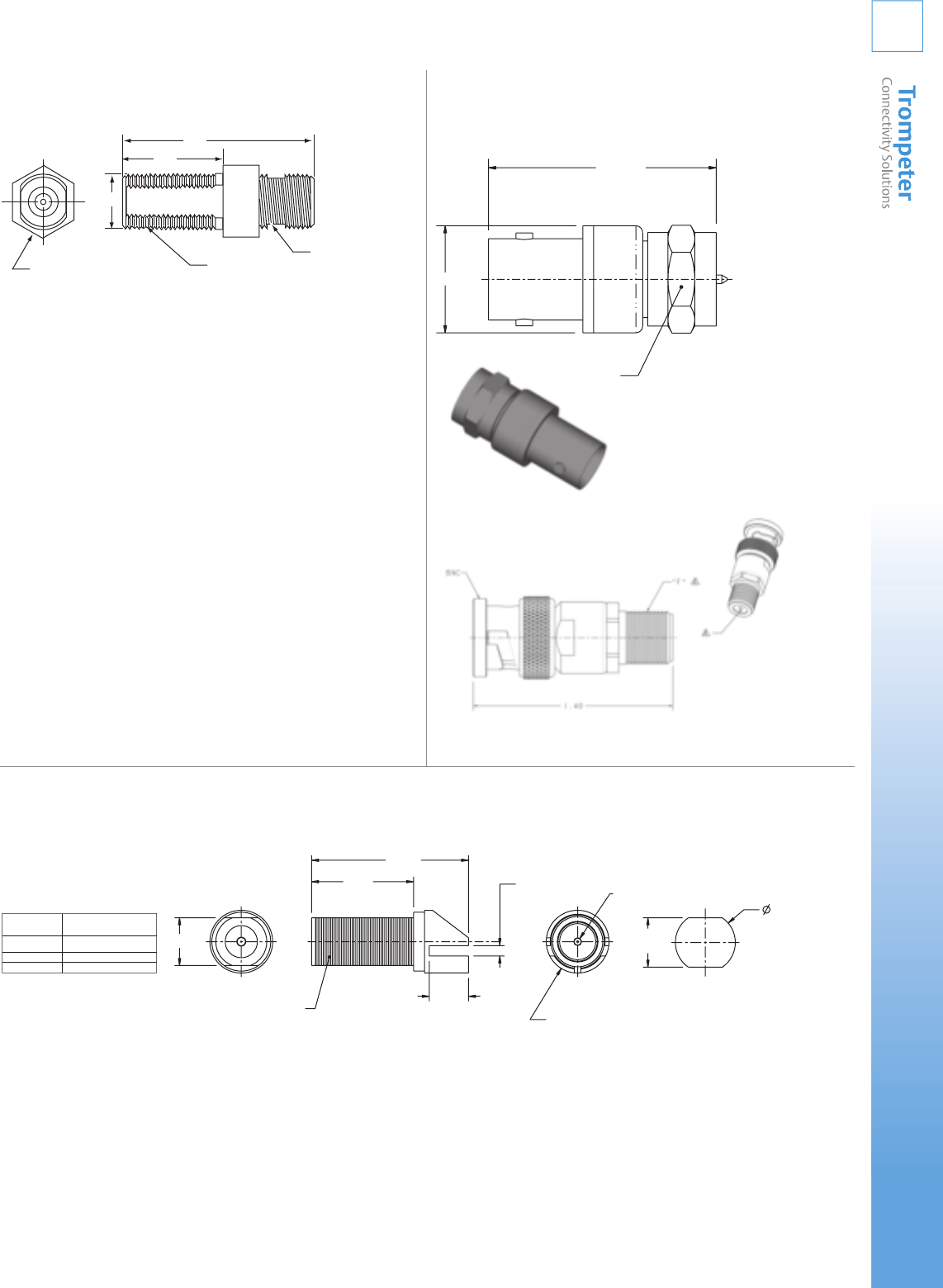

COAX CONNECTORS

Ø.50

1.06 ±.03

.437 HEX

.375-32-2A TYP

.371

.662

1.290

.312 WRENCH FLATS

AD133

BNC MALE TO F TYPE FEMALE ADAPTER

F Type Jack

AD1300

75 OHM Coaxial Female BNC

to Male F Type Adapter

BNC Plug

AD1300

BNC to F Type Adapter

Coax Connectors / Coax F Type Connectors

130 Series

Type F Adapter

AD131

Between Series Coaxial Female

BNC to Male F Type Adapter

75Ω............................................... AD1300

“D” mounting holes are on page 54.

.304

.375-32UNEF-2A

.650

1.000

.250

BOARD

THICKNESS

Ø.400

Ø.045

.316

.312

.384

.380

RECOMMENDED

CUT-OUT

PART NO BOARD THICKNESS

CBJE130-1 .060 - .064

CBJE130-2 .028 - .033

CBJE130-3 .090 - .094

Circuit Board Edge Mount

F Type Style Female Jack

CBJE130-1, -2, or -3

Note: This circuit board jack meets SCTE IPS-SP-401 and has a Return Loss of <-221B at 2 GHz.

COAX CONNECTORS

.856

±.018

.556

±.015

7/16 (.4375)

HEX NUT

1.030

±.030

1.054

±.030

.500

DASH NO CABLES ACCOMMODATED A HEX

-001 RG-178, -196 .178

-002 HEWLETT PACKARD .197

8120 - 1107

-003 RG-174, 316 .178

-004 RG-179, 187 .178

-005 NORTHERN ELECTRIC .197

DBL - SHLD RG-187

-006 GC875GPI, GRUMMAN .197

DBL - SHLD RG-188

-007 275-3991, MICRODOT .178

-008 RG-195, -180 .178

421-111, ESSEX

-009 8218, BELDEN .178

YR23023 BELDEN

21-597, ESSEX

-011 RG-58, RG-141, .213

RG-303, TCC-50-2

-013 RG-59 .255

-013A TCC-75-2 .255

-013B RG-62 .255

-014 8212, BELDEN .255

-015 730A, LUCENT .290

-015A RG-71 .290

-016 724, LUCENT .324

8281, BELDEN

-017 RG-6 .344

-018 9268, BELDEN .255

-019 8279, BELDEN .255

-020 9248, BELDEN .290

-021 88240, BELDEN .213

-022 88241, 88269, BELDEN .255

-023 89108, BELDEN .255

-024 89120, BELDEN .290

-025 734A, LUCENT .255

-026 735A, LUCENT .178

-027 KS19224L2, LUCENT .178

Coax Connectors / Coax F Type Connectors

130 Series

75 Ohm F Type Tool Crimp Plug

PL130SC-(see dash number from chart on right)

75 Ohm Right Angle F Type Style Full Crimp Cable Plug

PLR130SC-(see dash number from chart on right)

75 Ohm Male Type F Type Coaxial Cable Plug

PL130C-(see dash number from chart on right)

7/16

HEX

1.604

±.030

-F1 SHOWN

Trompeter’s 130 Series Coax F Type Connectors meet SCTE-IPS-SP-4-1 and have a Return Loss of <-22 dB at 2 GHz.

Part #	PL75-9
Description	TRB PLG, WRNCH CRMP, STR, 3-LUG FOR TWC-78-2 -
Category	COAX CONNECTOR
Availability	In Stock
Qty	47

Qty	Price
1 - 9	$22.20466
10 - 19	$17.66280
20 - 29	$16.65349
30 - 39	$15.47597
40 +	$13.79380

Manufacturer	Available	Qty
Cinch Connectivity Solutions	Freelance Stock: 12 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc Date Code: 0109	Freelance Stock: 8 Ships Immediately
Trompeter Electronics Inc Date Code: 0728	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 2 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 2 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 2 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 11 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately
Trompeter Electronics Inc	Freelance Stock: 1 Ships Immediately

PL75-9
