X7R Dielectric
Capacitance Range
PREFERRED SIZES ARE SHADED

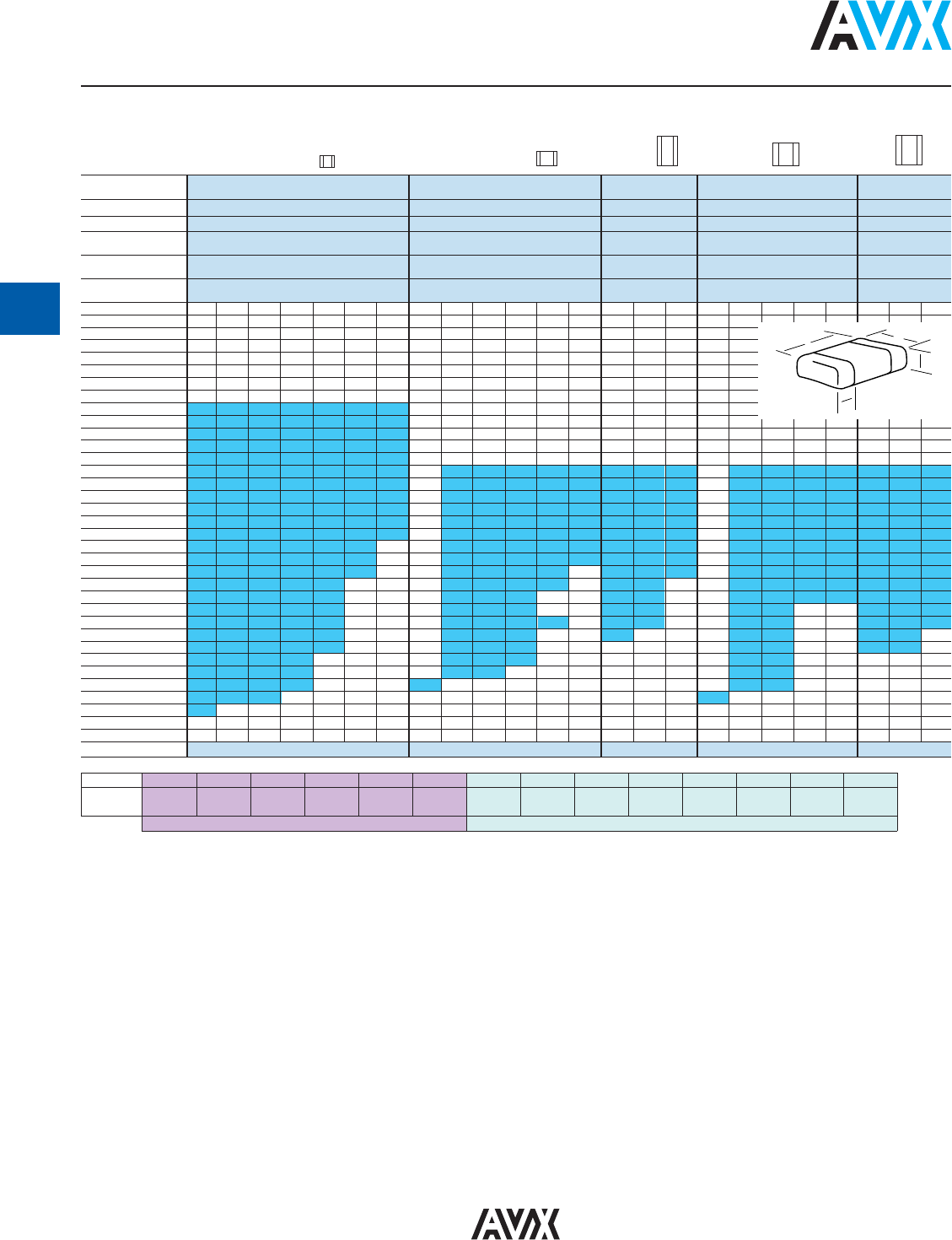

SIZE 1210 1812 1825 2220 2225
Soldering Reflow Only Reflow Only Reflow Only Reflow Only Reflow Only
Packaging Paper/Embossed All Embossed All Embossed All Embossed All Embossed
(L) Length
mm 3.20 ± 0.20 4.50 ± 0.30 4.50 ± 0.30 5.70 ± 0.40 5.72 ± 0.25
(in.) (0.126 ± 0.008) (0.177 ± 0.012) (0.177 ± 0.012) (0.225 ± 0.016) (0.225 ± 0.010)
(W) Width
mm 2.50 ± 0.20 3.20 ± 0.20 6.40 ± 0.40 5.00 ± 0.40 6.35 ± 0.25
(in.) (0.098 ± 0.008) (0.126 ± 0.008) (0.252 ± 0.016) (0.197 ± 0.016) (0.250 ± 0.010)
(t) Terminal
mm 0.50 ± 0.25 0.61 ± 0.36 0.61 ± 0.36 0.64 ± 0.39 0.64 ± 0.39
(in.) (0.020 ± 0.010) (0.024 ± 0.014) (0.024 ± 0.014) (0.025 ± 0.015) (0.025 ± 0.015)
WVDC 10 16 25 50 100 200 500 16 25 50 100 200 500 50 100 200 25 50 100 200 500 50 100 200
Cap 100 101
(pF) 150 151
220 221
330 331
470 471
680 681
1000 102
1500 152 J J J J J J M
2200 222 J J J J J J M
3300 332 J J J J J J M
4700 472 J J J J J J M
6800 682 J J J J J J M
Cap 0.01 103 J J J J J J M K K K K K M M M X X X X M P P
(μF) 0.015 153 J J J J J J P K K K K P M M M X X X X M P P
0.022 223 J J J J J J Q K K K K P M M M X X X X M P P
0.033 333 J J J J J J Q K K K K X M M M X X X X M P P
0.047 473 J J J J J J Q K K K K Z M M M X X X X M P P
0.068 683 J J J J J M Q K K K K Z M M M X X X X M P P
0.1 104 J J J J J M K K K K Z M M M X X X X M P P
0.15 154 J J J J M Z K K K P Z M M M X X X X M P X
0.22 224 J J J J P Z K K K P M M M X X X X M P X
0.33 334 J J J J Q K K M X M M X X X X M P X
0.47 474 M M M M Q K K P M M X X X X M P X
0.68 684 M M P X X M M Q M P X X M P X
1.0 105 N N P X Z M M X Z M P X X M P X
1.5 155 N N Z Z Z Z Z Z M X X M X
2.2 225 X X Z Z Z Z Z Z X X M X
3.3 335 X X Z Z Z Z Z X Z
4.7 475 X X Z Z Z Z X Z
10 106 Z Z Z Z Z ZZ
22 226 Z Z Z Z
47 476 Z
100 107
WVDC 10 16 25 50 100 200 500 16 25 50 100 200 500 50 100 200 25 50 100 200 500 50 100 200
SIZE 1210 1812 1825 2220 2225
