HSMF-C165

Part #	HSMF-C165
Description	LED BI-COLOR GRN/RED 570NM/636NM 4PIN CHIP LED - Tape and Additional Information:
Category	CAPACITOR
Availability	Out of Stock
Qty	0

Qty	Price
1 +	$0.15440

Related Items

Avago Technologies
IC
HSMF-C115
$0.48083

SPRAGUE
CAPACITOR
0068-200DC

TECHCAP
CAPACITOR
015MFD400VDC

Sangamo Capacitors
CAPACITOR
0160-0088
$7.49706

SPRAGUE
CAPACITOR
0180-0024
$18.26381

SPRAGUE
CAPACITOR
0180-2426
$25.68732

Technical Document

DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

7

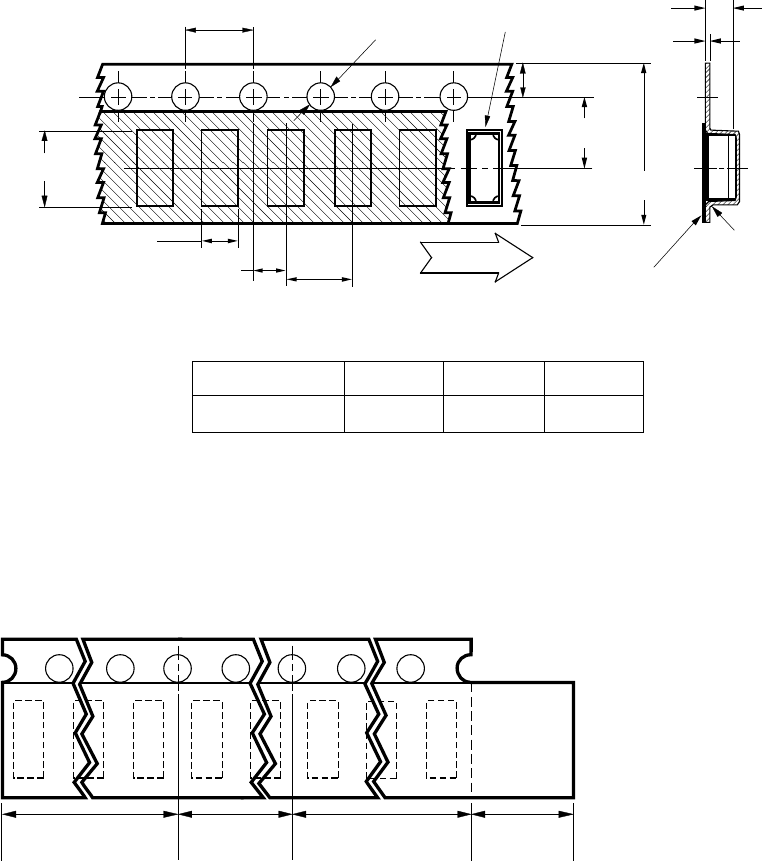

Figure 10. Tape dimensions.

Figure 11. Tape leader and trailer dimensions.

NOTES:

1. ALL DIMENSIONS IN MILLIMETERS (INCHES).

2. TOLERANCE IS ± 0.1 mm (± 0.004 IN.) UNLESS OTHERWISE SPECIFIED.

8.00 ± 0.30

(0.315 ± 0.012)

USER FEED

DIRECTION

DIM. A

(SEE TABLE 1)

3.50 ± 0.05

(0.138 ± 0.002)

1.75 (0.069)

DIM. C

(SEE TABLE 1)

0.20 ± 0.05

(0.008 ± 0.002)

CARRIER TAPE

COVER TAPE

DIM. B

(SEE TABLE 1)

4.00 (0.157)

2.00 ± 0.05

(0.079 ± 0.002)

4.00 (0.157)

1.50 (0.059)

TABLE 1

DIMENSIONS IN MILLIMETERS (INCHES)

CATHODE

DIM. A

± 0.10 (± 0.004)

DIM. B

± 0.10 (± 0.004)PART NUMBER

DIM. C

± 0.10 (± 0.004)

HSMF-C16x SERIES 1.80 (0.071)  0.95 (0.037) 0.60 (0.024)

END START

THERE SHALL BE A

MINIMUM OF 160 mm

(6.3 INCH) OF EMPTY

COMPONENT POCKETS

SEALED WITH COVER

TAPE.

MOUNTED WITH

COMPONENTS

THERE SHALL BE A

MINIMUM OF 160 mm

(6.3 INCH) OF EMPTY

COMPONENT POCKETS

SEALED WITH COVER

TAPE.

MINIMUM OF

230 mm

(9.05 INCH)

MAY CONSIST

OF CARRIER

AND/OR 

COVER TAPE.

Reflow Soldering

For more information on

reflow soldering, refer to

Application Note 1060, Surface

Mounting SMT LED Indicator

Components.

Storage Condition:

5 to 30°C @ 60% RH max.

Baking is required under the

condition:

a) the blue silica gel indicator

becoming white/transparent

color

b) the pack has been open for

more than 1 week

Baking recommended condition:

60 ± 5°C for 20 hours.

www.agilent.com/semiconductors

For product information and a complete list of

distributors, please go to our web site.

For technical assistance call:

Americas/Canada: +1 (800) 235-0312 or

(408) 654-8675

Europe: +49 (0) 6441 92460

China: 10800 650 0017

Hong Kong: (+65) 6271 2451

India, Australia, New Zealand: (+65) 6271 2394

Japan: (+81 3) 3335-8152(Domestic/Interna-

tional), or 0120-61-1280(Domestic Only)

Korea: (+65) 6271 2194

Malaysia, Singapore: (+65) 6271 2054

Taiwan: (+65) 6271 2654

Data subject to change.

Copyright © 2002 Agilent Technologies, Inc.

Obsoletes 5988-4258EN

April 6, 2002

5988-6146EN
