HSMF-C165

Part # HSMF-C165
Description LED BI-COLOR GRN/RED 570NM/636NM 4PIN CHIP LED - Tape and
Additional Information:


Category CAPACITOR
Availability Out of Stock
Qty 0
Qty Price
1 + $0.15440



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

4
Light Intensity (Iv) Bin Limits
[1]
Intensity (mcd) Intensity (mcd)
Bin ID Min. Max. Bin ID Min. Max.
A 0.10 0.20 K 6.30 12.50
B 0.16 0.32 L 10.00 20.00
C 0.25 0.50 M 16.00 32.00
D 0.40 0.80 N 25.00 50.00
E 0.63 1.25 P 40.00 80.00
F 1.00 2.00 Q 63.00 125.00
G 1.60 3.20 R 100.00 200.00
H 2.50 5.00 S 160.00 320.00
J 4.00 8.00 T 250.00 500.00
Note:
1. Bin categories are established for classification of products. Products may not be available in all
categories. Please contact your Agilent representative for information on currently available bins.
Orange Color Bins
[1]
Dom. Wavelength (nm)
Bin ID Min. Max.
A 596.0 601.0
B 599.0 604.0
C 602.0 607.0
D 605.0 610.0
E 608.0 613.0
F 611.0 616.0
Yellow/Amber Color Bins
[1]
Dom. Wavelength (nm)
Bin ID Min. Max.
A 581.5 585.0
B 584.0 587.5
C 586.5 590.0
D 589.5 592.5
E 591.5 595.0
F 594.0 597.5
Color Bin Limits
Green Color Bins
[1]
Dom. Wavelength (nm)
Bin ID Min. Max.
A 561 565
B 564 568
C 567 571
D 570 574
E 573 577
5

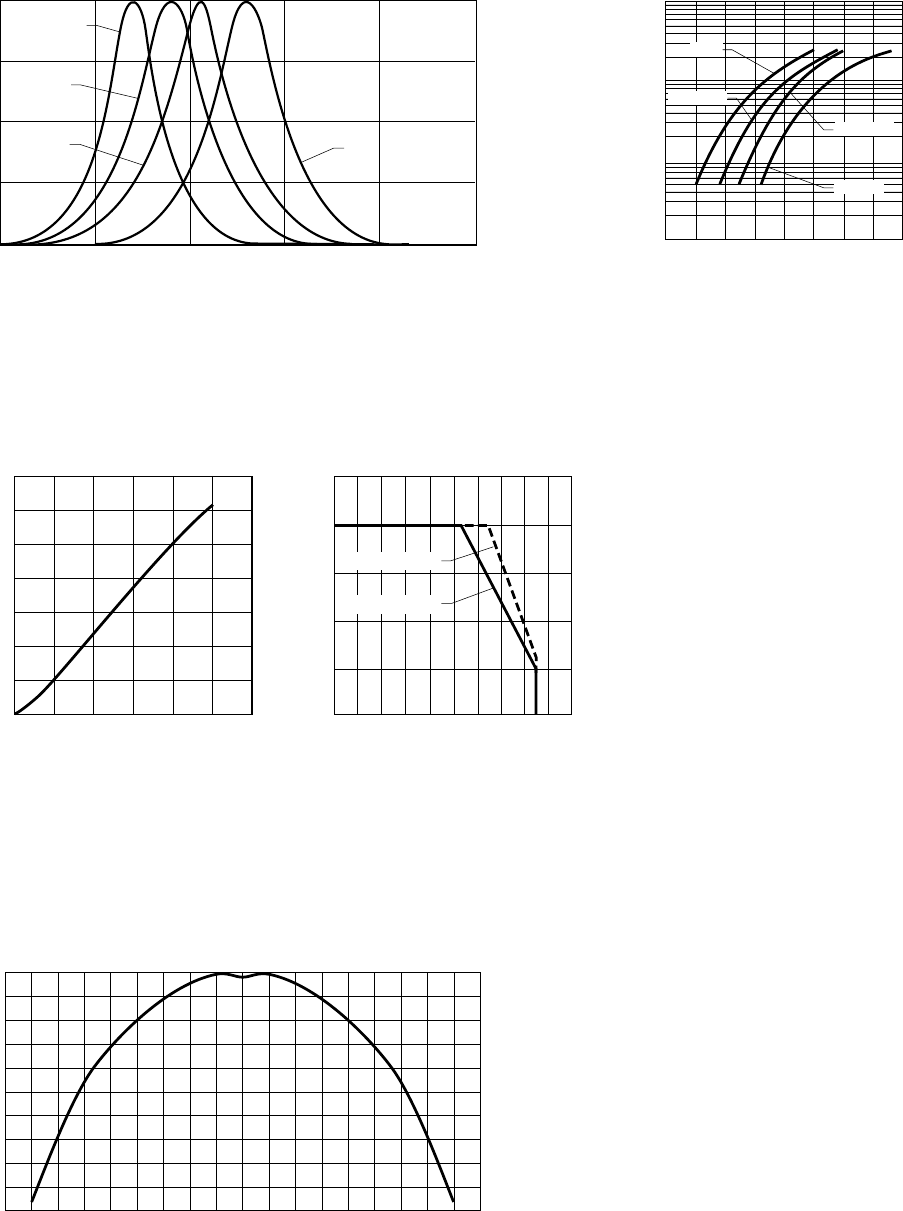

Figure 1. Relative intensity vs. wavelength. Figure 2. Forward current vs. forward voltage.
Figure 3. Luminous intensity vs. forward
current.
Figure 4. Maximum forward current vs.
ambient temperature.
Figure 5. Relative intensity vs. angle.
GREEN
YELLOW
ORANGE
HER
500 550 600 650 700 750
WAVELENGTH - nm
RELATIVE INTENSITY
1.0
0.5
0
1.5
1.6
1.7 1.8 1.9 2
2.1
2.2
2.3
V
F
– FORWARD VOLTAGE – V
I
F
– FORWARD CURRENT – mA
100
10
1
0
HER
ORANGE
YELLOW
GREEN
05 15
I
F
– FORWARD CURRENT – mA
0
0.4
1.0
LUMINOUS INTENSITY
(NORMALIZED AT 20 mA)
20
0.6
0.2
0.8
10 30
1.4
25
1.2
Rθ = 800˚C/W
J-A
Rθ = 600˚C/W
J-A
I
F MAX
– MAXIMUM FORWARD CURRENT – mA
25
20
15
10
5
0
0 20 40 60 80 100
T
A
– AMBIENT TEMPERATURE – °C
RELATIVE INTENSITY – %
ANGLE
-70 -50 -30 0 2030507090-90 -20-80 -60 -40 -10 10 40 60 80
100
90
80
70
60
50
40
30
20
10
0
6

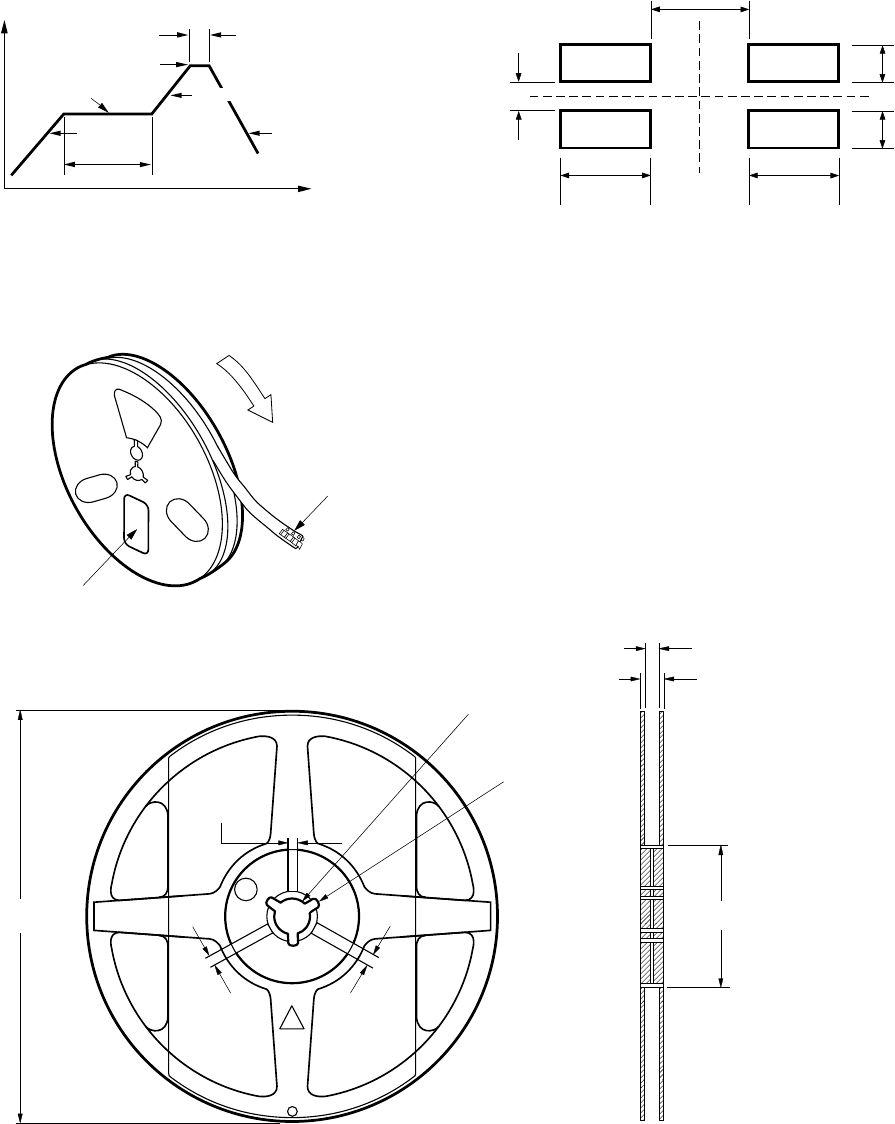

Figure 6. Recommended reflow soldering profile. Figure 7. Recommended soldering pad pattern.
NOTE:
1. ALL DIMENSIONS IN MILLIMETERS (INCHES).
Figure 8. Reeling orientation.
Figure 9. Reel dimensions.
230°C MAX.
10 SEC. MAX.
4°C/SEC.
MAX.
OVER 2 MIN.
TIME
TEMPERATURE
4°C/SEC. MAX.
140-160°C
–3°C/SEC. MAX.
0.30
(0.012)
0.60
(0.024)
0.40
(0.016)
0.40
(0.016)
0.70
(0.028)
0.70
(0.028)
CATHODE SIDE
PRINTED LABEL
USER FEED DIRECTION
10.50 ± 1.0 (0.413 ± 0.039)
59.60 ± 1.00
(2.346 ± 0.039)
Ø 20.20 MIN.
(Ø 0.795 MIN.)
6
PS
178.40 ± 1.00
(7.024 ± 0.039)
3.0 ± 0.5
(0.118 ± 0.020)
4.0 ± 0.5
(0.157 ± 0.020)
5.0 ± 0.5
(0.197 ± 0.020)
Ø 13.1 ± 0.5
(Ø 0.516 ± 0.020)
8.0 ± 1.0 (0.315 ± 0.039)
PREVIOUS123NEXT
