C315C103K5R5CA

Part # C315C103K5R5CA
Description Cap Ceramic 0.01uF 50V X7R 10% Radial 2.54mm 125C Bulk
Additional Information:


Category CAPACITOR
Availability In Stock
Qty 10
Qty Price
1 + $0.02741
Manufacturer Available Qty
KEMET
  • Shipping Freelance Stock: 10
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-630010
CERAMIC CONFORMALLY COATED/AXIAL
AXIMAX”
& GOLD MAX
GENERAL SPECIFICATIONS
Working Voltage:
Axial (WVDC)
C0G 50, 100, 200
X7R 25, 50, 100, 200, 250
Z5U 50, 100
Radial (WVDC)
C0G 50, 100, 200, 500, 1k, 1.5k, 2k, 2.5k, 3k
X7R 25, 50, 100, 200, 250, 500, 1k, 1.5k, 2k, 2.5k, 3k
Z5U 50, 100
Temperature Characteristics:
C0G 0 ±30 PPM / °C from -55°C to +125°C (1)
X7R ± 15% from -55°C to +125°C
Z5U + 22%, -56% from +10°C to +85°C
Capacitance Tolerance:
C0G ±0.5pF, ±1%, ±2%, ±5%, ±10%, ±20%
X7R ±10%, ±20%, +80% / -20%
Z5U ±20%, 80% / -20%
Construction:
Epoxy encapsulatedmeets flame test requirements
of UL Standard 94V-0.
High-temperature solder – meets EIA RS-198, Method 302,
Condition B (260°C for 10 seconds)
Lead Material:
Standard: 100% matte tin (Sn) with nickel (Ni) underplate
and steel core ( “TA” designation).
Alternative 1: 60% Tin (Sn)/40% Lead (Pb) finish with copper-
clad steel core (HA” designation).
Alternative 2: 60% Tin (Sn)/40% Lead (Pb) finish with 100%
copper core (available with “HA” termination code with c-spec)
Solderability:
EIA RS-198, Method 301, Solder Temperature: 230°C ±5°C.
Dwell time in solder = 7 ±
seconds.
Terminal Strength:
EIA RS-198, Method 303, Condition A (2.2kg)
ELECTRICAL
Capacitance @ 25°C:
Within specified tolerance and following test conditions.
C0G – >1000pF with 1.0 vrms @ 1 kHz
1000pF with 1.0 vrms @ 1 MHz
X7R – with 1.0 vrms @ 1 kHz (Referee Time: 1,000 hours)
Z5U – with 1.0 vrms @ 1 kHz
Dissipation Factor @25°C:
Same test conditions as capacitance.
C0G 0.10% maximum
X7R 2.5% maximum (3.5% for 25V)
Z5U – 4.0% maximum
Insulation Resistance @25°C:
EIA RS-198, Method 104, Condition A <1kV
C0G – 100 G
or 1000 M F, whichever is less.
500V test @ rated voltage, >500V test @ 500V
X7R 100 G
or 1000 M F, whichever is less.
500V test @ rated voltage, >500V test @ 500V
Z5U – 10 G
or 1000 M F, whichever is less.
Dielectric Withstanding Voltage:
EIA RS-198, Method 103
250V test @ 250% of rated voltage for 5 seconds
with current limited to 50mA.
500V test @ 150% of rated voltage for 5 seconds
with current limited to 50mA.
1000V test @ 120% of rated voltage for 5 seconds
with current limited to 50mA.
ENVIRONMENTAL
Vibration:
w
ith current limited to 50mA.
ENVIRONMENTAL
Vibration:
EIA RS-198, Method 304, Condition D (10-2000Hz; 20g)
Shock:
EIA RS-198, Method 305, Condition I (100g)
Life Test:
EIA RS-198, Method 201, Condition D.
<200V
C
0G – 200% of rated voltage @ +125°C
X7R – 200% of rated voltage @ +125°C
Z5U – 200% of rated voltage @ +85°C
>500V
C0G – rated voltage @ +125°C
X7R – rated voltage @ +125°C
Post Test Limits @ 25°C are:
Capacitance Change:
C0G (
200V) – ±3% or 0.25pF, whichever is greater.
C0G (
500V) – ±3% or 0.50pF, whichever is greater.
X7R – ± 20% of initial value (2)
Z5U – ± 30% of initial value (2)
Dissipation Factor:
C0G 0.10% maximum
X7R – 2.5% maximum (3.5% for 25V)
Z5U – 4.0% maximum
Insulation Resistance:
C0G 10 G
or 100 M F, whichever is less.
>1kV tested @ 500V.
X7R – 10 G
or 100 M F, whichever is less.
>1kV tested @ 500V.
Z5U – 1 G
or 100 M F, whichever is less.
Moisture Resistance:
EIA RS-198, Method 204, Condition A (10 cycles
without applied voltage).
Post Test Limits @ 25°C are:
Capacitance Change:
C0G (
200V) – ±3% or ±0.25pF, whichever is greater.
C0G (
500V) – ±3% or ± 0.50pF, whichever is greater.
X7R – ± 20% of initial value (2)
Z5U – ± 30% of initial value (2)
Dissipation Factor:
C0G 0.10% maximum
X7R – 2.5% maximum (3.5% for 25V)
Z5U – 4.0% maximum
Insulation Resistance:
C0G 10 G
or 100 M Fwhichever is less.
500V test @ rated voltage, >500V test @ 500V.
X7R – 10 G
or 100 M F, whichever is less.
500V test @ rated voltage, >500V test @ 500V.
Z5U – 1k M
or 100 M F, whichever is less.
Thermal Shock:
EIA RS-198, Method 202, Condition B (C0G & X7R:
-55°C to 125°C); Condition A (Z5U: -55°C to 85°C)
(1) +53 PPM -30 PPM/ °C from +25°C to -55°C, + 60 PPM below 10pF.
(2) X7R and Z5U dielectrics exhibit aging characteristics; therefore, it is highly
recommended that capacitors be deaged for 2 hours at 150°C and stabilized
at room temperature for 48 hours before capacitance measurements are made.
© KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300 15
DIMENSIONS  INCHES (MILLIMETERS)
For packaging information, see pages 47 and 48.
ORDERING INFORMATION
Drawings are not to scale. See table below for dimensions. See page 16 for optional lead configurations.
(1) Lead configuration depends on capacitance value. (2) H dimensions does not include meniscus.

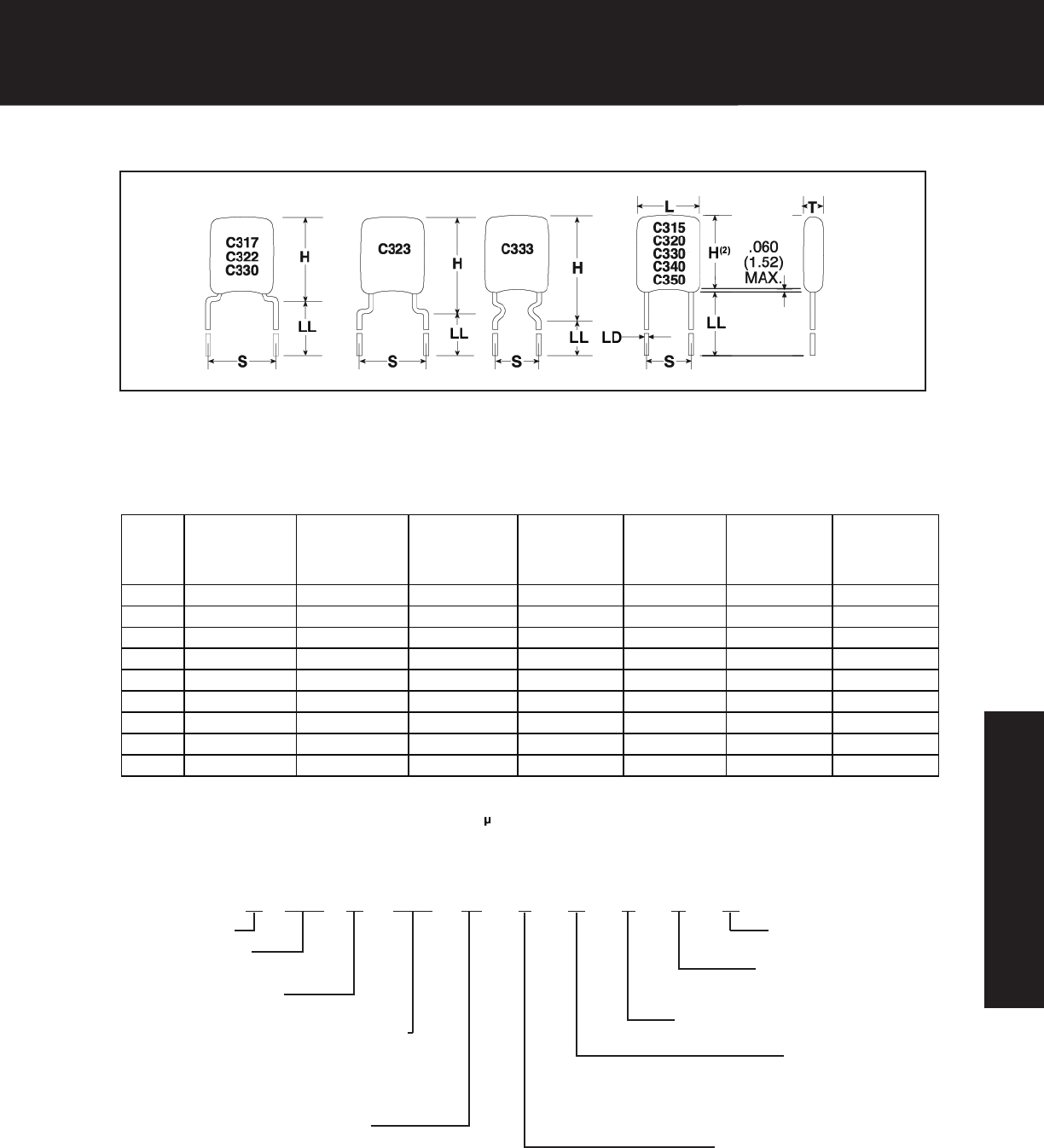

STANDARD LEAD CONFIGURATION OUTLINE DRAWINGS
CERAMIC CONFORMALLY COATED/RADIAL
STANDARD & HIGH VOLTAGE GOLD MAX”
Gold Max
Case
Size
L
Max.
H.
Max.
Standard
T Max.
High Voltage
T Max.
S
(1)
±.030 (.78)
LD
+.004(.10)
-.001(.025)
LL
Min.
C315 0.150 (3.81) 0.210 (5.33) 0.100 (2.54) 0.150 (3.81) 0.100 (2.54) 0.020 (.51) 0.276 (7.00)
C317 0.150 (3.81) 0.230 (5.84) 0.100 (2.54) 0.150 (3.81) 0.200 (5.08) 0.020 (.51) 0.276 (7.00)
C320 0.200 (5.08) 0.260 (6.60)
0.125 (3.18)
(2)
0.200 (5.08) 0.100 (2.54) 0.020 (.51) 0.276 (7.00)
C322 0.200 (5.08) 0.260 (6.60) 0.125 (3.18) 0.200 (5.08) 0.200 (5.08) 0.020 (.51) 0.276 (7.00)
C323 0.200 (5.08) 0.320 (8.13) 0.125 (3.18) 0.200 (5.08) 0.200 (5.08) 0.020 (.51) 0.276 (7.00)
C330 0.300 (7.62) 0.360 (9.14) 0.150 (3.81) 0.250 (6.35) 0.200 (5.08) 0.020 (.51) 0.276 (7.00)
C333 0.300 (7.62) 0.390 (9.91) 0.150 (3.81) 0.250 (6.35) 0.200 (5.08) 0.020 (.51) 0.276 (7.00)
C340 0.400 (10.16) 0.460 (11.68) 0.150 (3.81) 0.270 (6.86) 0.200 (5.08) 0.020 (.51) 0.276 (7.00)
C350 0.500 (12.70) 0.560 (14.22) 0.200 (5.08) 0.270 (6.86) 0.400 (10.16) 0.025 (.64) 0.276 (7.00)
Note: 1 inch = 25.4mm.
Note (1): Measured at seating plane.
Note (2): Thickness = 0.16" (4.064mm) for C320 from 4.7 - 10.0 F.
(1)
(1)
C
320 C 102 M 1 R 5 T A
CERAMIC
CASE SIZE
See Table Above
SPECIFICATION
C Standard
CAPACITANCE PICOFARAD CODE
Expressed in picofarads (pF). First two
digits represent significant figures. Third
digit specifies number of zeros. Use 9 for
1.0 thru 9.9 pF. Example 2.2pF = 229
CAPACITANCE TOLERANCE
C0G: C – ±0.25pF; D – ±0.5pF; F – ±1%;
G – ±2%; J – ±5%,
X7R: K ±10%; M – ±20%; P – 0, -100%;
Z -20,+80%
Z5U: M – ±20%; P
– 0, -100%; Z – -20,+80%
RATED VOLTAGE (DC)
3 25
D – 1000
5 – 50 F – 1500
1 – 100 G – 2000
2 – 200 Z – 2500
A – 250 H – 3000
C – 500
FAILURE RATE
A – Not Applicable
LEAD MATERIAL
T – 100% Tin (Sn)
H – 60/40% T
in/Lead (SnPb)
INTERNAL CONSTRUCTION
5 Multilayer
DIELECTRIC
EIA Designation
G C0G (NP0) - Ultra Stable
R – X7R - Stable
U – Z5U - General Purpose
© KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-630016
CERAMIC CONFORMALLY COATED/RADIAL
STANDARD & HIGH VOLTAGE GOLD MAX”
Lead Spacing
.100" ± .030
Lead Spacing
.200" ± .030
Lead Spacing
.200" ± .030
Lead Spacing
.200" ± .030
Lead Spacing Lead Spacing
.150
MAX.
.
210
MAX.
.276
MIN.
.
100
C 3 1 5
.150
MAX.
.
230
M
AX.
.230
±
.030
.
100
C 3 1 6
.
200
.200
M
AX.
.260
MAX.
.276
M
IN.
.200
C 3 2 2 C 3 2 3
.320
MAX.
.
276
MIN.
.200
.200
M
AX.
.150
M
AX.
.230
MAX.
.276
MIN.
.200
C 3 1 7
.150
M
AX.
.
235
MAX.
.276
MIN.
.200
C 3 1 8
.200
MAX.
.325
MAX.
.276
MIN.
C 3 2 8
.200
.200
MAX.
.350
M
AX.
.230
±.030
.200
C 3 2 7
.270
.200
MAX.
.320
M
AX.
.276
MIN.
.200
C 3 2 5
.300
MAX.
.360
MAX.
.276
MIN.
.250
C 3 3 1
.200
MAX.
.260
MAX.
.276
MIN.
.250
C 3 2 1
.500
MAX.
.560
MAX.
.276
MIN.
.400
C 3 5 0
.500
MAX.
.670
MAX.
.230
±.030
C 3 5 6
.400
.520
.400
MAX.
.590
MAX.
.230
±.030
.200
C 3 4 6
.320
.400
MAX.
.460
MAX.
.276
MIN.
.200
C 3 4 0
.200
MAX.
.260
MAX.
.
276
M
IN.
.100
C 3 2 0
.200
MAX.
.
260
MAX.
.276
MIN.
.100
C 3 2 4 C 3 2 6
.
230
±
.030
.
100
.
200
M
AX.
.350
M
AX.
.300
MAX.
.360
MAX.
.276
MIN.
.200
C 3 3 0
.300
MAX.
.390
MAX.
.276
MIN.
.200
C 3 3 3
.300
MAX.
.420
MAX.
.276
MIN.
.200
C 3 3 5
.300
MAX.
.450
MAX.
.230
±.030
.200
C 3 3 6
.300

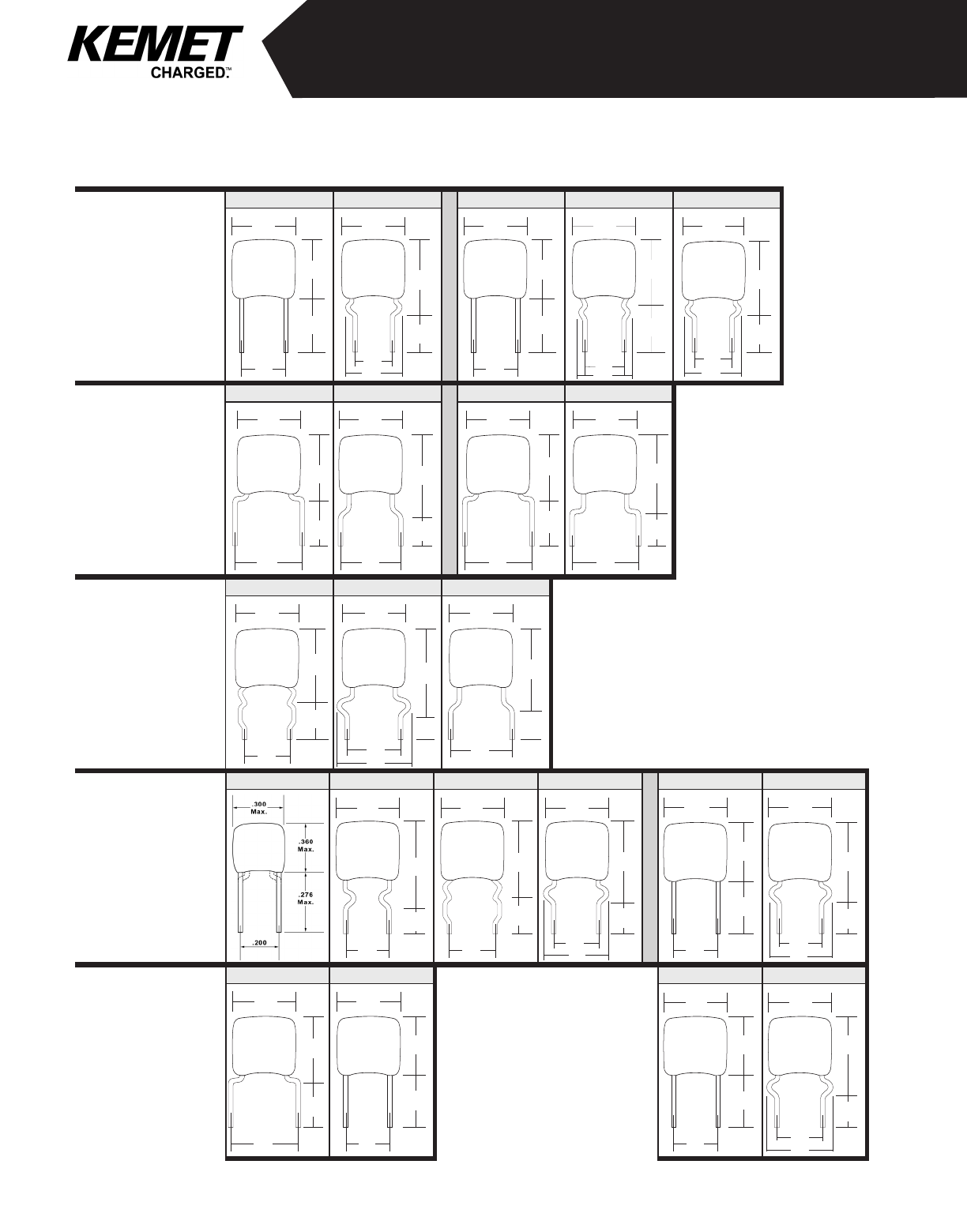

The preferred lead wire configurations are shown on page 15. However, additional configurations are
a
vailable. All available options, including those on page 15, are shown below grouped by lead spacing.
OPTIONAL CONFIGURATIONS BY LEAD SPACING
.200
.125
.250" ± .030
(Available in
bulk only)
.400" ± .030
Note: Non-standard lead lengths are available in bulk only.
Note: C330 configuration
depends on capacitance.
See part number tables
for specifics.
