APXA160ARA390MF60G

Part # APXA160ARA390MF60G
Description CAP POLYMER 39UF 20% 16V SMD
Additional Information:


Category CAPACITOR
Availability In Stock
Qty 1000
Qty Price
1 - 210 $0.40057
211 - 420 $0.31863
421 - 630 $0.30043
631 - 840 $0.27918
841 + $0.24884
Manufacturer Available Qty
NIPPON CHEMI-CONN
Date Code: 0800
  • Shipping Freelance Stock: 1000
    Ships Immediately

Related Items

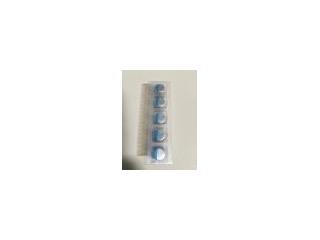

APXA160ARA331MJC0G
NIPPON CHEMI-CONN
CAPACITOR
APXA160ARA331MJC0G
$0.41746
0068-200DC
SPRAGUE
CAPACITOR
0068-200DC

015MFD400VDC
TECHCAP
CAPACITOR
015MFD400VDC

0160-0088
Sangamo Capacitors
CAPACITOR
0160-0088
$7.14006
0180-0024
SPRAGUE
CAPACITOR
0180-0024
$17.39410
0180-2426
SPRAGUE
CAPACITOR
0180-2426
$24.46411


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS
Surface Mount
CAT. No. E1001E
?
SPECIFICATIONS
(at 20C, 120Hz)
(at 105C)
(at 20C after 2 minutes)
(at 20C, 120Hz)
(at 100kHz)
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Surge Voltage
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Bias Humidity
Surge Voltage
Failure Rate
Items
-
55 to +105C
2.5 to 25V
dc
P20% (M)
Rated voltageB1.15V
Shall not exceed values shown in STANDARD RATINGS.
0.12 max.
Z(
-
25C)/Z(+20C)[1.15
Z(
-
55C)/Z(+20C)[1.25
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2000 hours
at 105C.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after subjecting them to the DC rated voltage at
60C, 90 to 95% RH for 500 hours.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
The capacitors shall be subjected to 1000 cycles each consisting of charge with the surge voltage specified at 105C for 30 seconds
through a protective resistor(R=1kO) and discharge for 5 minutes 30 seconds.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
1% per 1000 hours maximum (Confidence level 60% at 105C)
Characteristics
?
PART NUMBERING SYSTEM
?
DIMENSIONS [mm]
?
MARKING
A
905
39
16
V
EX) PXA16VC39M
*Note : If any doubt arises, measure the leakage current after following voltage treatment.
Voltage treatment : DC rated voltage are applied to the capacitors for 120 minutes at 105C.
@Super low ESR, impedance and high heat resistance have been obtained by using
conductive polymer as electrolyte
@Rated voltage range : 2.5 to 25V
dc, case size range : F6.3B5.2L to F10B12.2L
(Case code HC0 and JC0 newly added)
@Suitable for DC-DC converters, voltage regulators and decoupling applications used to
computer motherboards etc.
@High heat resistance to refl ow soldering (See refl ow soldering conditions)
@Pb-free design
FDP0.5
LP0.3 (Note)
0.3max.
AP0.2
W
CP0.2
BP0.2
P
Note : LP0.5 for HC0 and JC0
Size code
F55
F60
H70
J80
HC0
JC0
fD
6.3
6.3
8
10
8
10
L
5.2
5.7
6.7
7.7
12.0
12.2
A
6.6
6.6
8.3
10.3
8.3
10.3
B
6.6
6.6
8.3
10.3
8.3
10.3
C
7.2
7.2
9.0
11.0
9.0
11.0
W
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
0.7 to 1.1
0.7 to 1.1
P
1.9
1.9
3.1
4.5
3.1
4.5
@Terminal Code : A
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 10MF:100,100MF:101)
Taping code
Terminal code
Voltage code (ex. 6.3V:6R3,10V:100)
Series code
Category
A P X A A A A A R A A A A A A A NM
13426789105121311 16 17 181514
Please refer to "A guide to global code (conductive polymer type)"
(1/2)
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS
Surface Mount
CAT. No. E1001E
?
STANDARD RATINGS
WV(Vdc) Cap(mF) Size code
Leakage current
(mAmax/after 2 min.)
ESR
(momax/20c, 100kHz)
Rated ripple current
(mArms/100k to 300kHz)
-55 to +105c
Part No.
2.5
220
F55
110 25 2500 APXA2R5ARA221MF55G
220
F60
110 25 2500 APXA2R5ARA221MF60G
560
H70
280 23 3100 APXA2R5ARA561MH70G
680
HC0
340 12 4770 APXA2R5ARA681MHC0S
1000
J80
500 19 4240 APXA2R5ARA102MJ80G
1500
JC0
750 10 5500 APXA2R5ARA152MJC0S
4
100
F55
80 26 2450 APXA4R0ARA101MF55G
100
F60
80 26 2450 APXA4R0ARA101MF60G
150
F55
120 26 2450 APXA4R0ARA151MF55G
150
F60
120 26 2450 APXA4R0ARA151MF60G
220
H70
176 25 3020 APXA4R0ARA221MH70G
330
H70
264 25 3020 APXA4R0ARA331MH70G
470
J80
376 20 4130 APXA4R0ARA471MJ80G
560
HC0
448 12 4770 APXA4R0ARA561MHC0S
680
J80
544 20 4130 APXA4R0ARA681MJ80G
820
JC0
656 10 5500 APXA4R0ARA821MJC0S
1200
JC0
960 10 5500 APXA4R0ARA122MJC0S
6.3
68
F60
85.7 27 2400 APXA6R3ARA680MF60G
82
F55
103 27 2400 APXA6R3ARA820MF55G
82
F60
103 27 2400 APXA6R3ARA820MF60G
100
F55
126 27 2400 APXA6R3ARA101MF55G
100
F60
126 27 2400 APXA6R3ARA101MF60G
120
F60
151 27 2400 APXA6R3ARA121MF60G
150
H70
189 25 3020 APXA6R3ARA151MH70G
220
H70
277 25 3020 APXA6R3ARA221MH70G
330
J80
416 20 4130 APXA6R3ARA331MJ80G
390
HC0
491 12 4770 APXA6R3ARA391MHC0S
470
J80
592 20 4130 APXA6R3ARA471MJ80G
470
HC0
592 12 4770 APXA6R3ARA471MHC0S
680
JC0
857 10 5500 APXA6R3ARA681MJC0S
820
JC0
1033 10 5500 APXA6R3ARA821MJC0S
10
47
F60
94 31 2250 APXA100ARA470MF60G
56
F55
112 31 2250 APXA100ARA560MF55G
56
F60
112 31 2250 APXA100ARA560MF60G
120
H70
240 27 2800 APXA100ARA121MH70G
150
H70
300 27 2800 APXA100ARA151MH70G
270
J80
540 24 3770 APXA100ARA271MJ80G
270
HC0
540 14 4420 APXA100ARA271MHC0S
330
J80
660 24 3770 APXA100ARA331MJ80G
330
HC0
660 14 4420 APXA100ARA331MHC0S
470
JC0
940 12 5300 APXA100ARA471MJC0S
560
JC0
1120 12 5300 APXA100ARA561MJC0S
16
33
F60
106 37 2050 APXA160ARA330MF60G
39
F55
125 37 2050 APXA160ARA390MF55G
39
F60
125 37 2050 APXA160ARA390MF60G
82
H70
262 30 2700 APXA160ARA820MH70G
150
J80
480 26 3430 APXA160ARA151MJ80G
180
J80
576 26 3430 APXA160ARA181MJ80G
180
HC0
576 16 4360 APXA160ARA181MHC0S
220
JC0
704 14 5050 APXA160ARA221MJC0S
330
JC0
1056 14 5050 APXA160ARA331MJC0S
20
22
F55
88 50 1650 APXA200ARA220MF55G
22
F60
88 50 1650 APXA200ARA220MF60G
39
H70
156 45 2000 APXA200ARA390MH70G
47
H70
188 45 2000 APXA200ARA470MH70G
82
J80
328 40 2500 APXA200ARA820MJ80G
25
10
F60
125 65 1500 APXA250ARA100MF60G
22
H70
275 50 1800 APXA250ARA220MH70G
39
J80
488 45 2100 APXA250ARA390MJ80G
(2/2)
