Silicon MOSFET Technology
Operation from 24V to 50V
High Power Gain
Extreme Ruggedness
Internal Input and Output Matching
Excellent Thermal Stability
All Gold Bonding Scheme
Pb-free and RoHS Compliant
Table 1: Typical RF Performance in broadband text fixture at 25°C temperature with
RF pulse conditions of pulse width = 10 s and pulse duty cycle = 1%.
The high power HVV1012- 50 device is an enhancement mode RF MOSFET power
transistor designed for pulsed applications in the L-Band from 1025MHz to 1150MHz. The
high voltage MOSFET technology produces over 50W of pulsed output power while
offering high gain, high efficiency, and ease of matching with a 50 V supply. The vertical
device structure assures high reliability and ruggedness as the device is specified to
withstand a 20:1 VSWR at all phase angles under full rated output power.
Device Part Number: HVV1012- 50
Evaluation Kit Part Number: HVV1012- 50-EK
ORDERING INFORMATION
DESCRIPTION
TYPICAL PERFORMANCE
FEATURES
REV. A
7525 ETHEL AVENUE NORTH HOLLYWOOD, CA 91605 (818) 982-1200 WWW.ADSEMI.COM
Specifications are subject to change without notice.
MODE FREQUENCY VDD IDQ Power GAIN EFFICIENCY IRL
(MHz) (V) (mA) (W) (dB) (%) (dB)
Class AB 1150 50 100 250 19.5 48 20:1
2
2
2
2
GE
PACKAGE

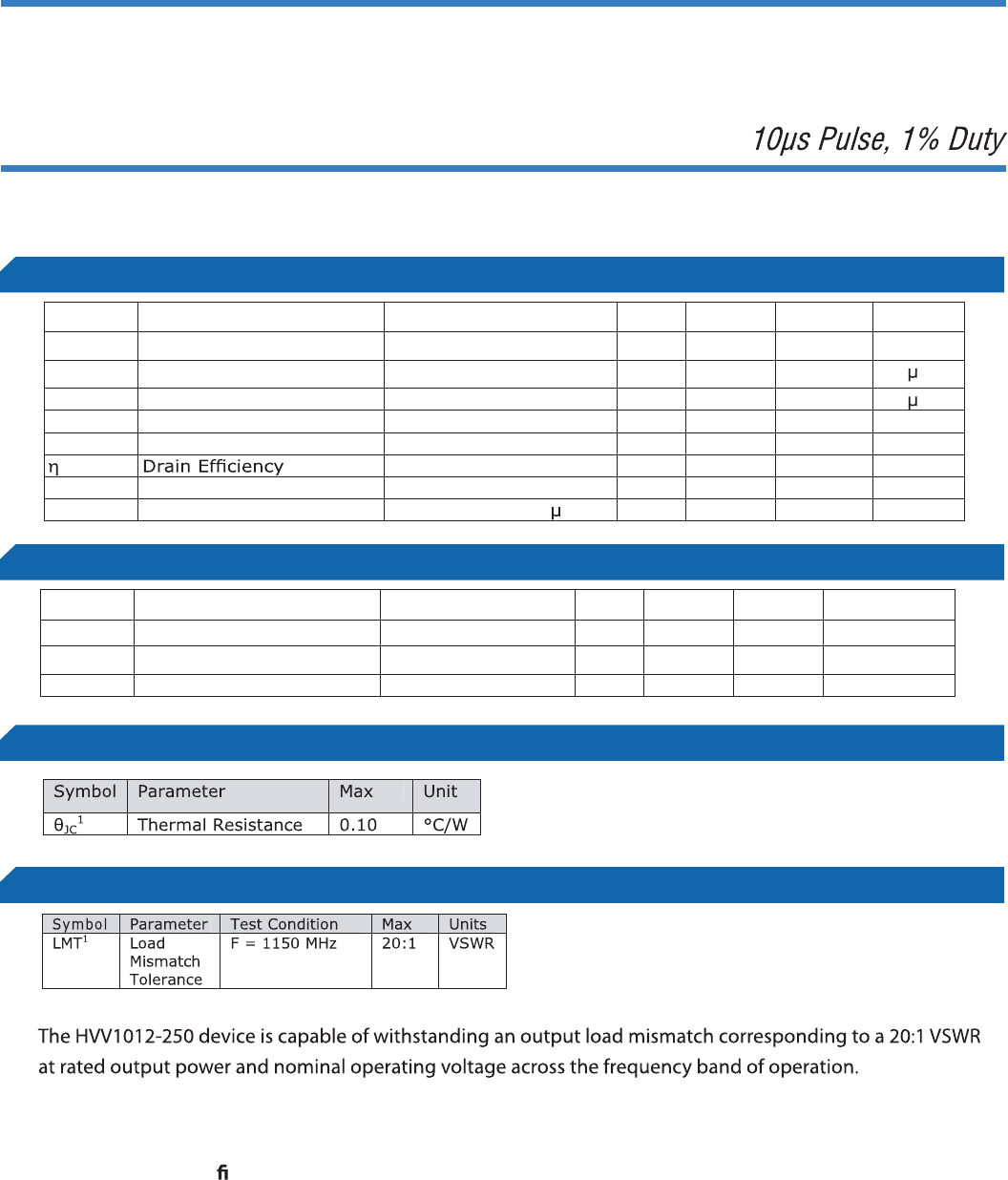

ELECTRICAL CHARACTERISTICS
PULSE CHARACTERISTICS
THERMAL CHARACTERISTICS
RUGGEDNESS PERFORMANCE
1
NOTE: All parameters measured under pulsed conditions at 250W output power measured at the 10%
point of the pulse with pulse width = 10μsec, duty cycle = 1% and VDD = 50V, IDQ = 100mA in a broad-
band matched test xture.
2
NOTE: Amount of gate voltage required to attain nominal quiescent current.
Symbol Parameter Conditions Min Typical Max Unit
V
BR(DSS)
Drain-Source Breakdown VGS=0V,ID=5mA 95 102 - V
I
DSS
Drain Leakage Current VGS=0V,VDS=48V - 50 200 A
I
GSS
Gate Leakage Current VGS=5V,VDS=0V - 1 5 A
G
P
1
Power Gain F=1150MHz 17.5 19.5 - dB
IRL
1
Input Return Loss F=1150MHz - -7 -4 dB
D
1
F=1150MHz 46 48 - %
VGS(Q)
2
Gate Quiescent Voltage VDD=50V,IDQ=100mA 1.1 1.45 1.8 V
VTH Threshold Voltage VDD=5V, ID=300 A 0.7 1.2 1.7 V
Symbol Parameter Conditions Min Typical Max Unit
T
r
1
Rise Time F=1150MHz - <40 50 nS
T
f
1
Fall Time F=1150MHz - <15 50 nS
PD
1
Pulse Droop F=1150MHz - 0.25 0.5 dB
