CR2032

Cross Number:

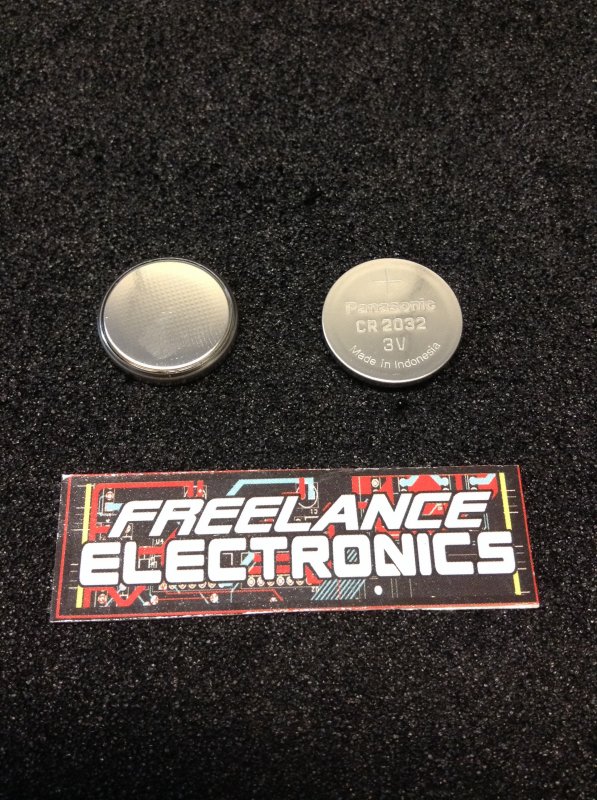

Item Description: BUTTON CELL LITHIUM BATTERY 3.0V
Additional Information:

Qty Price
1 + $0.78000





Related Items

RENATA
BATTERY

CR2032RH3V

$0.14850
COMAIR ROTRON
FAN

CR203-ND

$1.50000
PANASONIC ELECTRONICS
BATTERY

02K6502


Generic
BATTERY

55-1.025.5

$6.60000
Hughes Aircraft Company
BATTERY

BC-104


OPTO22
BATTERY

G4BATT32

$46.94000


Manufacturer Date Code Qty Available Qty
PANASONIC ELECTRONICS 0600
  • Certified
    Partner Stock:
    4
    Ships within 4-5 days
    Only Available for Web Orders
    If not ordered through the web, a $5.99 processing fee will be applicable to all other order types


PANASONIC ELECTRONICS
  • Freelance Stock: 9
    Ships Immediately







Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Chemical System:
Lithium / Manganese Dioxide (Li/MnO
2
)
Designation: ANSI / NEDA-5004LC, IEC-CR2032
Battery Voltage: 3.0 Volts
Average Weight: 3.3 grams (0.12 oz.)
Volume: 1.0 cubic centimeters (0.06 cubic inch)
Average Capacity: 225 mAh to 2.0 volts
(Rated at 10k ohms continuous at 21ºC)
Maximum Reverse
Charge Current: 1 microampere
Energy Density: 198 milliwatt hr/g, 653 milliwatt hr/cc
Schedule: Continuous for background
2 seconds X 12times/day for pulse
Typical Background Drain @ 2.9V (milliamps):
0.295 milliamperes
Typical Pulse Drain @ 2.6V (milliamps):
7.3 milliamperes
Background Load:
10k ohms
Pulse Load:
400 ohms
2.0V
2,250 Hours
Contents herein do not constitute a warranty.
24 hours/day 97
Load
Schedule: (microamperes)
at 2.9V
Industry Standard Dimensions in mm (inches)
ENERGIZER NO. CR2032
Simulated Application Test
Cutoff Voltage
Estimated Average Service at 21ºC (70ºF)
Typical Drains
(ohms)
30,000
Important Notice
INTERNAL RESISTANCE CHARACTERISTICS
Pulse Test @ 21ºC (70ºF)
This data sheet contains information specific to batteries manufactured at the time of its publication.
Copyright © Eveready Battery Co. Inc. - All Rights Reserved
EVEREADY BATTERY CO.
Internet: www.energizer.com
1-800-383-7323 / USA
1-800-383-7323 / CANADA
TYPICAL DISCHARGE CURVE
Simulated Test @ 21ºC (70ºF)
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
0 400 800 1200 1600 2000 2400
Service, Hours
Closed Circuit Voltage
1.8
2.0
2.2
2.4
2.6
2.8
3.0
0 50 100 150 200 250
Capacity, mAh
CCV
0
20
40
60
80
100
120
IR, Ohms
IR CHARACTERISTICS
Pulse Test @ 21ºC (70ºF)
IR
PULSE
BKGND
1-800-383-7323 / USA
1-800-383-7323 / CANADA
+ 44 (0) 208 920 2306 / EUROPE
Form No. EBC - 4120D Page 1 of 2
Contents herein do not constitute a warranty.
Copyright © Eveready Battery Co. Inc. - All Rights Reserved
This data sheet contains information specific to batteries manufactured at the time of its publication.
Important Notice
ENERGIZER NO. CR2032
EVEREADY BATTERY CO.
Internet: www.energizer.com
1-800-383-7323 / USA
1-800-268-5870 / CANADA
Performance
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
0 50 100 150 200 250
mAh
Voltage, CCV
21ºC
-40ºC
-10ºC
Service Maintenance as a Function of Storage
Temperature and Time
40
60
80
100
0 2 4 6 8 10
Years at Temperature
% Service Maintenance
71ºC
60ºC
45ºC
21ºC
Form No. EBC - 4120D Page 2 of 2
