Dimensions are shown in mm (inch)

Dimensions subject to change

165

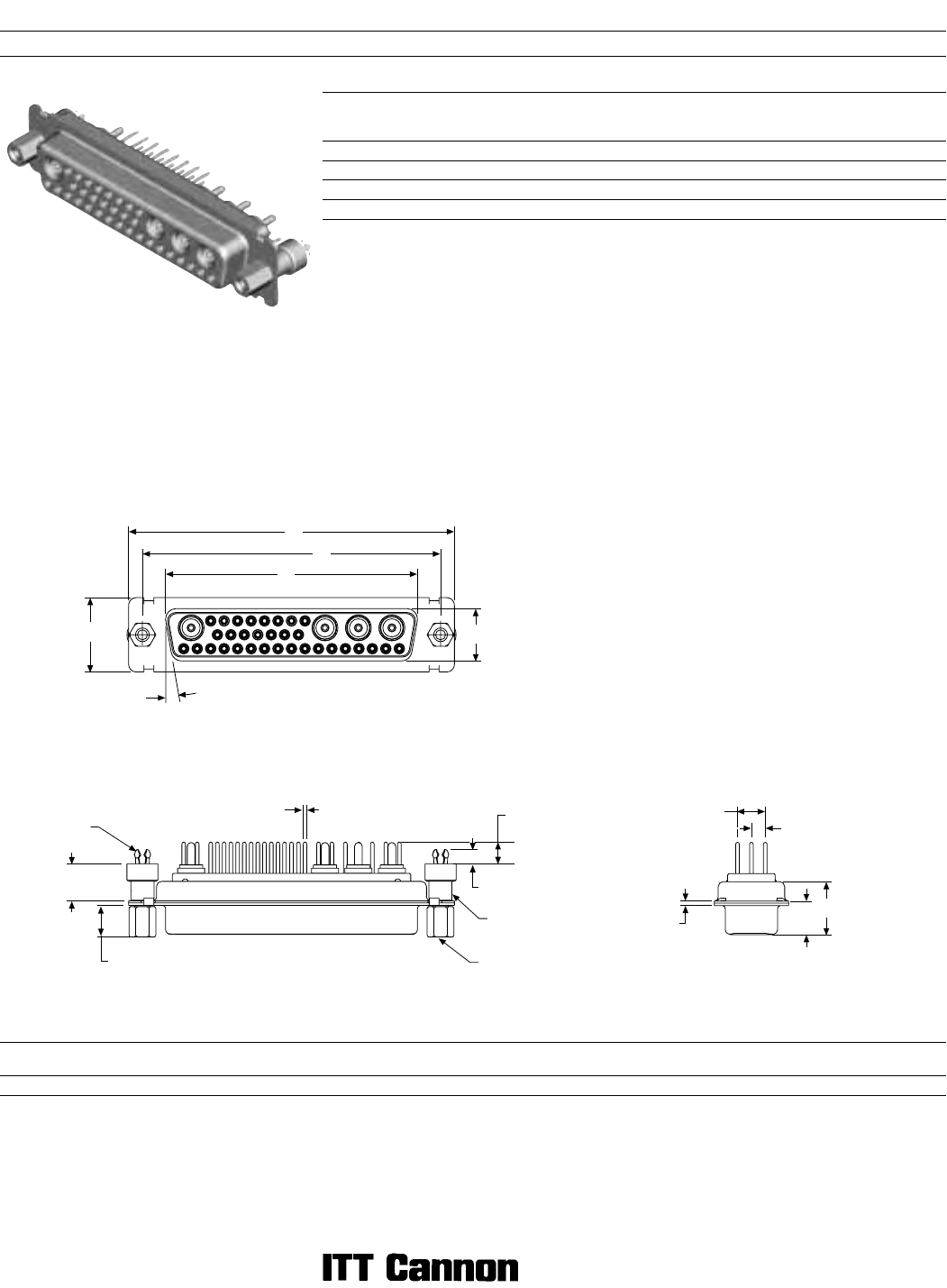

D Subminiature Military/High Reliability

High Voltage Straight PCB (Size DD)

Part Numbers with Standoff #4-40 UNC

Shell Size Layout

Part Number

Without Screw Locks

Without Boardlocks

Part Number

Without Screw Locks

With Boardlocks

Part Number

With Screw Locks

With Boardlocks

DD 24W7 DDMMV24V7SN DDMMZ24V7SN DDMMN24V7SN

DD 36W4 DDMMV36V4SN DDMMZ36V4SN DDMMN36V4SN

DD 43W2 DDMMV43V2SN DDMMZ43V2SN DDMMN43V2SN

DD 47W1 DDMMV47V1SN DDMMZ47V1SN DDMMN47V1SN

Dimensions

Receptacle

Shell Size

±0,38 (.015)

±0,13 (.005)

±0,38 (.015)

±0,25 (.010)

±0,38 (.015)

±0,25 (.010)

DD 66,93 (2.635) 52,42 (2.064) 61,11 (2.406) 10,74 (.423) 15,37 (.605) 10,90 (.429) 6,94 (.273) 0,76 (.030)

Receptacle

Engaging Face

Hardware and high voltage contacts

removed for clarity

Reader’s Resource

ɀ For contact cavity arrangements,

see page 223.

ɀ For P.C. hole patterns, see page 259.

ɀ For panel cutouts, see page 221.

ɀ For hardware views (Standard), see page 226.

Ø 0,76

(.030)

SCREW LOCK

#4-40 UNC

BOARDLOCK

2,92

(.115)

7,62 ± 0,25

(.300 ± .010)

6,50 ± 0,25

(.256 ± .010)

STANDOFF

#4-40 UNC

4,52

(.178)

5,69

(.224)

2,84

(.112)

Dimensions are shown in mm (inch)

Dimensions subject to change

166

D Subminiature Military/High Reliability

Cable Solder Cup

Plug

Reader’s Resource

ɀ For contact cavity arrangements,

see page 222.

ɀ For panel cutouts, see page 221.

ɀ For hardware views (Standard), see page 226.

Part Numbers

Shell Size Layout Through Hole

Dual

Float Mount

Clinch Nut

#4-40 UNC

DE 5W1 DEMM5W1P DEMMY5W1P DEMME5W1P

DA 7W2 DAMM7W2P DAMMY7W2P DAMME7W2P

DA 11W1 DAMM11W1P DAMMY11W1P DAMME11W1P

DA 3W3 DAMM3W3P DAMMY3W3P DAMME3W3P

DA 3WK3ឮ DAMM3WK3P DAMMY3WK3P DAMME3WK3P

DB 5W5 DBMMP5W5P DBMMY5W5P DBMME5W5P

DB 9W4 DBMM9W4P DBMMY9W4P DBMME9W4P

DB 13W3 DBMM13W3P DBMMY13W3P DBMME13W3P

DB 17W2 DBMM17W2P DBMMY17W2P DBMME17W2P

DB 21W1 DBMM21W1P DBMMY21W1P DBMME21W1P

DC 8W8 DCMM8W8P DCMMY8W8P DCMME8W8P

DC 13W6 DCMM13W6P DCMMY13W6P DCMME13W6P

DC 17W5 DCMM17W5P DCMMY17W5P DCMME17W5P

DC 21WA4 DCMM21WA4P DCMMY21WA4P DCMME21WA4P

DC 25W3 DCMM25W3P DCMMY25W3P DCMME25W3P

DC 27W2 DCMM27W2P DCMMY27W2P DCMME27W2P

DD 24W7 DDMM24W7P DDMMY24W7P DDMME24W7P

DD 36W4 DDMM36W4P DDMMY36W4P DDMME36W4P

DD 43W2 DDMM43W2P DDMMY43W2P DDMME43W2P

DD 47W1 DDMM47W1P DDMMY47W1P DDMME47W1P

Note: ឮ Keyed.

Dimensions

Shell Size

±0,38 (.015)

±0,13 (.005)

±0,38 (.015)

±0,25 (.010)

±0,368 (.0145)

±0,41 (.016)

±0,317 (.0125)

±0,25 (.010)

DE 30,81 (1.213) 16,92 (.666) 24,99 (.984) 8,36 (.329) 12,55 (.494) 10,72 (.422) 6,693 (.2635) — 1,206 (.0475) — 0,76 (.030)

DA 39,14 (1.541) 25,25 (.994) 33,32 (1.312) 8,36 (.329) 12,55 (.494) 10,72 (.422) 6,693 (.2635) — 1,206 (.0475) — 0,76 (.030)

DB 53,04 (2.088) 38,96 (1.534) 47,04 (1.852) 8,36 (.329) 12,55 (.494) 10,82 (.426) — 6,84 (.269) — 1,52 (.060) 0,99 (.039)

DC 69,32 (2.729) 55,42 (2.182) 63,50 (2.500) 8,36 (.329) 12,55 (.494) 10,82 (.426) — 6,84 (.269) — 1,52 (.060) 0,99 (.039)

DD 66,93 (2.635) 52,81 (2.079) 61,11 (2.406) 11,07 (.436) 15,37 (.605) 10,82 (.426) — 6,84 (.269) — 1,52 (.060) 0,99 (.039)

Engaging Face

DD Configuration

10°

Ø 3,05

(.120)

10,72 (.422)

MAX

2,84

(.112)

5,69

(.224)

2,84

(.112)

Dimensions are shown in mm (inch)

Dimensions subject to change

167

D Subminiature Military/High Reliability

Cable Solder Cup

Receptacle

Reader’s Resource

ɀ For contact cavity arrangements,

see page 223.

ɀ For panel cutouts, see page 221.

ɀ For hardware views (Standard), see page 226.

Part Numbers

Shell Size Layout Through Hole

Dual

Float Mount

Clinch Nut

#4-40 UNC

DE 5W1 DEMM5W1S DEMMY5W1S DEMME5W1S

DA 7W2 DAMM7W2S DAMMY7W2S DAMME7W2S

DA 11W1 DAMM11W1S DAMMY11W1S DAMME11W1S

DA 3W3 DAMM3W3S DAMMY3W3S DAMME3W3S

DA 3WK3ឮ DAMM3WK3S DAMMY3WK3S DAMME3WK3S

DB 5W5 DBMM5W5S DBMMY5W5S DBMME5W5S

DB 9W4 DBMM9W4S DBMMY9W4S DBMME9W4S

DB 13W3 DBMM13W3S DBMMY13W3S DBMME13W3S

DB 17W2 DBMM17W2S DBMMY17W2S DBMME17W2S

DB 21W1 DBMM21W1S DBMMY21W1S DBMME21W1S

DC 8W8 DCMM8W8S DCMMY8W8S DCMME8W8S

DC 13W6 DCMM13W6S DCMMY13W6S DCMME13W6S

DC 17W5 DCMM17W5S DCMMY17W5S DCMME17W5S

DC 21WA4 DCMM21WA4S DCMMY21WA4S DCMME21WA4S

DC 25W3 DCMM25W3S DCMMY25W3S DCMME25W3S

DC 27W2 DCMM27W2S DCMMY27W2S DCMME27W2S

DD 24W7 DCMM24W7S DCMMY24W7S DCMME24W7S

DD 36W4 DCMM36W4S DCMMY36W4S DCMME36W4S

DD 43W2 DCMM43W2S DCMMY43W2S DCMME43W2S

DD 47W1 DCMM47W1S DCMMY47W1S DCMME47W1S

Note: ឮ Keyed.

Dimensions

Shell Size

±0,38 (.015)

±0,13 (.005)

±0,38 (.015)

±0,25 (.010)

±0,38 (.015)

±0,318 (.0125)

±0,25 (.010)

DE 30,81 (1.123) 16,33 (.643) 24,99 (.984) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 1,206 (.0475) 0,76 (.030)

DA 39,14 (1.541) 24,66 (.971) 33,32 (1.312) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 1,206 (.0475) 0,76 (.030)

DB 53,04 (2.088) 38,38 (1.511) 47,04 (1.852) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 1,206 (.0475) 0,76 (.030)

DC 69,32 (2.729) 54,84 (2.159) 63,50 (2.500) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 1,206 (.0475) 0,76 (.030)

DD 66,93 (2.635) 52,42 (2.064) 61,11 (2.406) 10,74 (.423) 15,37 (.605) 10,90 (.429) 6,94 (.273) 1,206 (.0475) 0,76 (.030)

Engaging Face DD Configuration

Ø 3,05

(.120)

9,91 (.390)

MAX

5,69

(.224)

2,84

(.112)

2,84 (.112)
