VAP00102

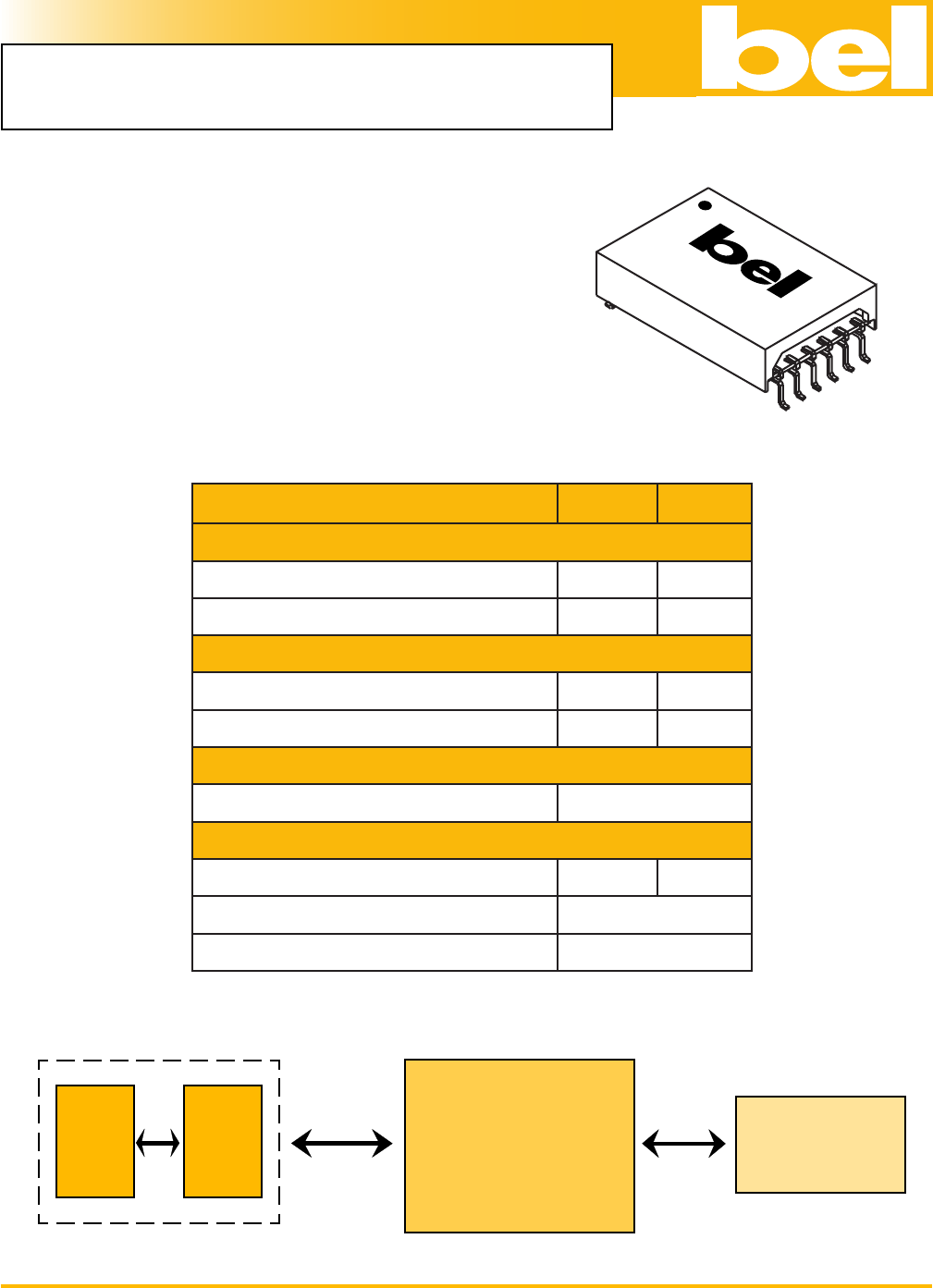

DSL Network Module
RADSL-LP CO
ELECTRICAL SPECIFICATIONS AT 25° C
BLOCK DIAGRAM
Complete miniaturized analog transmitter and receiver for the RADSL-LP
central office (CO) application
+15 dBm differential transmit signal power into a 100 termination
Operating temperature -40° to 85° C
Single power supply voltage
Low power (Pd) dissipation
Surface mount packaging
00-9341-3080
niM xaM
sgnitaRmumixaMetulosbA
DNGAotegatlovylppusrewoPV3.0-V0.6+
erutarepmetegarotSC°04-C°521+
snoitidnoCgnitarepOmumixaMdednemmoceR
egatlovylppusrewoPV57.4+V52.5+
)gnisnednocnon(erutarepmetgnitarepOC°04-C°58+
)egatloVgnissaPtsehgiH(dlohserhTSDE
)sniplla(ledomydobnamuHV005>
scitsiretcarahClareneG
)demmirtresal(noitairavniaghtaptimsnarT----Bd52.0±
)etarduabhtiwseirav(noitapissidrewoP pytWm062
epytegakcaP DMSnip-21
RADSL-LP CO
Micro Module
0803-1439-00
Line
Transformer
DSP
AFE
CORPORATE
Bel Fuse Inc.
198 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
FAR EAST
Bel Fuse Ltd.
8F / 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
EUROPE
Bel Fuse Europe Ltd.
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
DSL Network Module
©2000 Bel Fuse Inc. Specifications subject to change without notice. 06.00
VAP00102
RADSL-LP CO

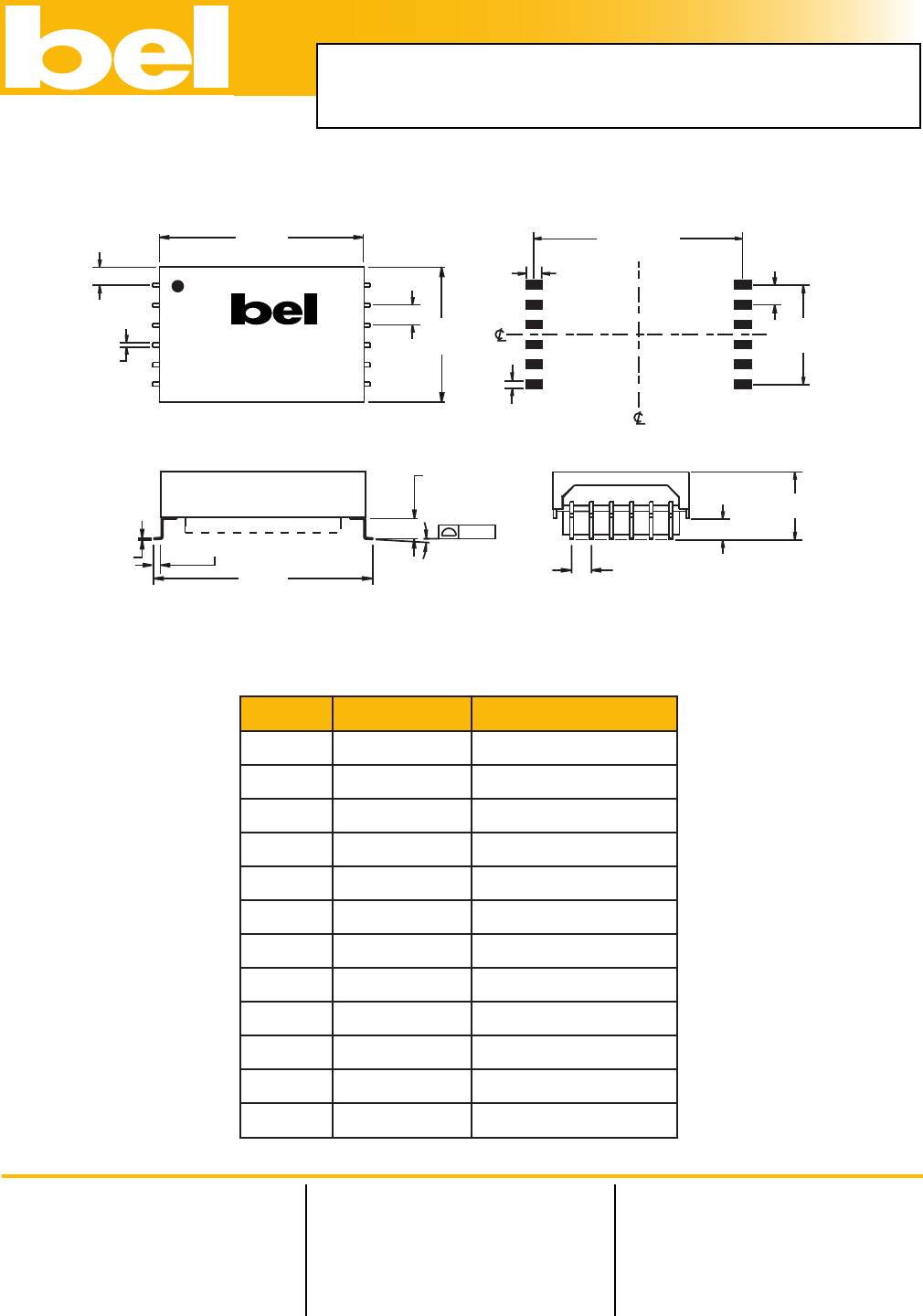

MECHANICAL
PCB Pad Layout
Seating
Plane
1.100
[27.94]
0.100
[2.54]
1
6
0.018
[0.46]
12 x
1.035
[26.29]
12
7
5 x
0.100
[2.54]
0.685
[17.40]
0.080
[2.03]
1.050
[26.67]
5 x
0.100
[2.54]
0.500
[12.70]
0.040
[1.02]
0.100
[2.54]
typ
0.350 [8.89]
0.120
[3.05]
Dimensions are in inches [millimeters].
Standard dimension tolerance is ±0.010 [0.25] unless otherwise noted.
0.010
[0.25]
typ
0.050 [1.27]
2 x
0.065 ±0.005
1.65 ±0.13
0˚- 4˚
0.004
0803-1439-00
niP noitcnuF noitpircseD
1DNGAdnuorGtiucriCgolanA
21LFXT1langiStimsnarT
32LFXT2langiStimsnarT
4C/NnoitcennoCoN
51AGP1tuptuOlangiSevieceR
62AGP2tuptuOlangiSevieceR
72VCR2tupnIlangiSevieceR
81VCR1tupnIlangiSevieceR
91OL1tuptuOlangiStimsnarT
012OL2tuptuOlangiStimsnarT
11A5+egatloVylppuSgolanAAV5+
21C/NnoitcennoCoN
