Online data sheet
UM12-1192261
UM12
ULTRASONIC SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
UM12-1192261 | UM12
ULTRASONIC SENSORS

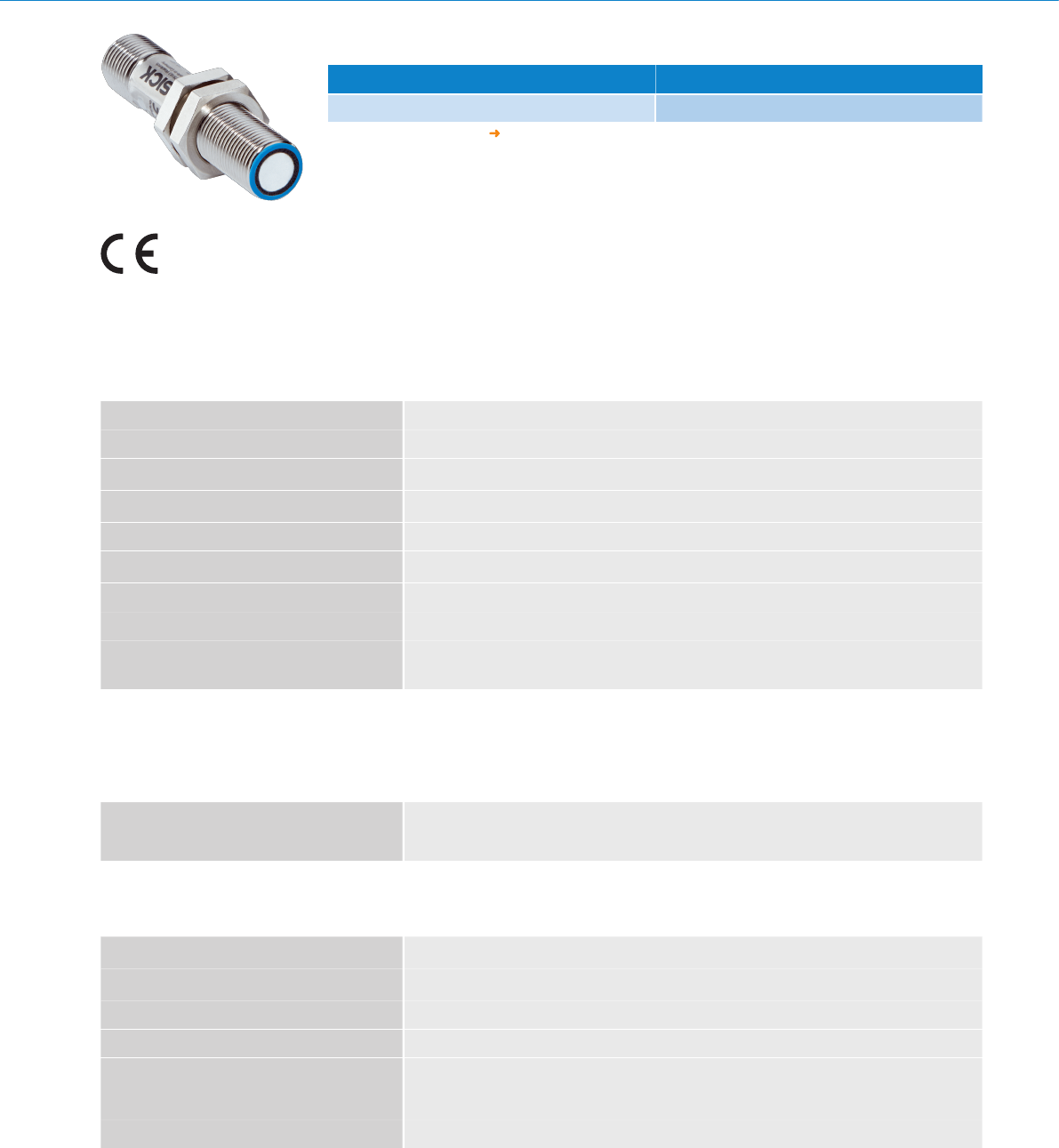

Ordering information
Type Part no.
UM12-1192261 6053548
Other models and accessories www.sick.com/UM12
Detailed technical data
Performance
Working range, limiting range
40mm... 240mm, 350mm
Resolution
≥ 0.069mm
Repeatability
±0.15%
1)
Accuracy
±1%
1)
Temperature compensation
Response time
30ms
2)
Output time
10ms
Ultrasonic frequency (typical)
500kHz
Additional function
Teach-in of analog output, Invertable analog output, temperature compensation, reset to facto-
ry default
3)
1)
Referring to current measurement value.
2)
Subsequent smoothing of the analog output, depending on the application, may increase the response time by up to 200%.
3)
Functions may vary depending on sensor type.
Interfaces
Analog output
1x 4mA... 20mA (≤ 500Ω)
1)
Resolution analog output 12bit
1)
For 4mA... 20mA and V
s
≤ 20V max. load ≤ 100Ω.
Mechanics/electronics
Supply voltage V
s
DC 10V... 30V
1)
2)
Power consumption
≤1.2W
3)
Initialization time
<300ms
Design
Cylindrical
Housing material
Nickel-plated brass
PBT
Ultrasonic transducer: polyurethane foam, glass epoxy resin
Connection type
Male connector, M12, 4-pin
1)
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8A.
2)
15V... 30V when using the analog voltage output.
3)
Without load.
2 DISTANCE SENSORS | SICK Online data sheet | 2016-05-02 22:08:07
Subject to change without notice
UM12-1192261 | UM12
ULTRASONIC SENSORS
Indication
2x LED
Weight
15g
Sending axis
Straight
1)
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8A.
2)
15V... 30V when using the analog voltage output.
3)
Without load.
Ambient data
Enclosure rating
IP67
Protection class
III
Ambient temperature
Operation: –25°C... +70°C
Storage: –40°C... +85°C

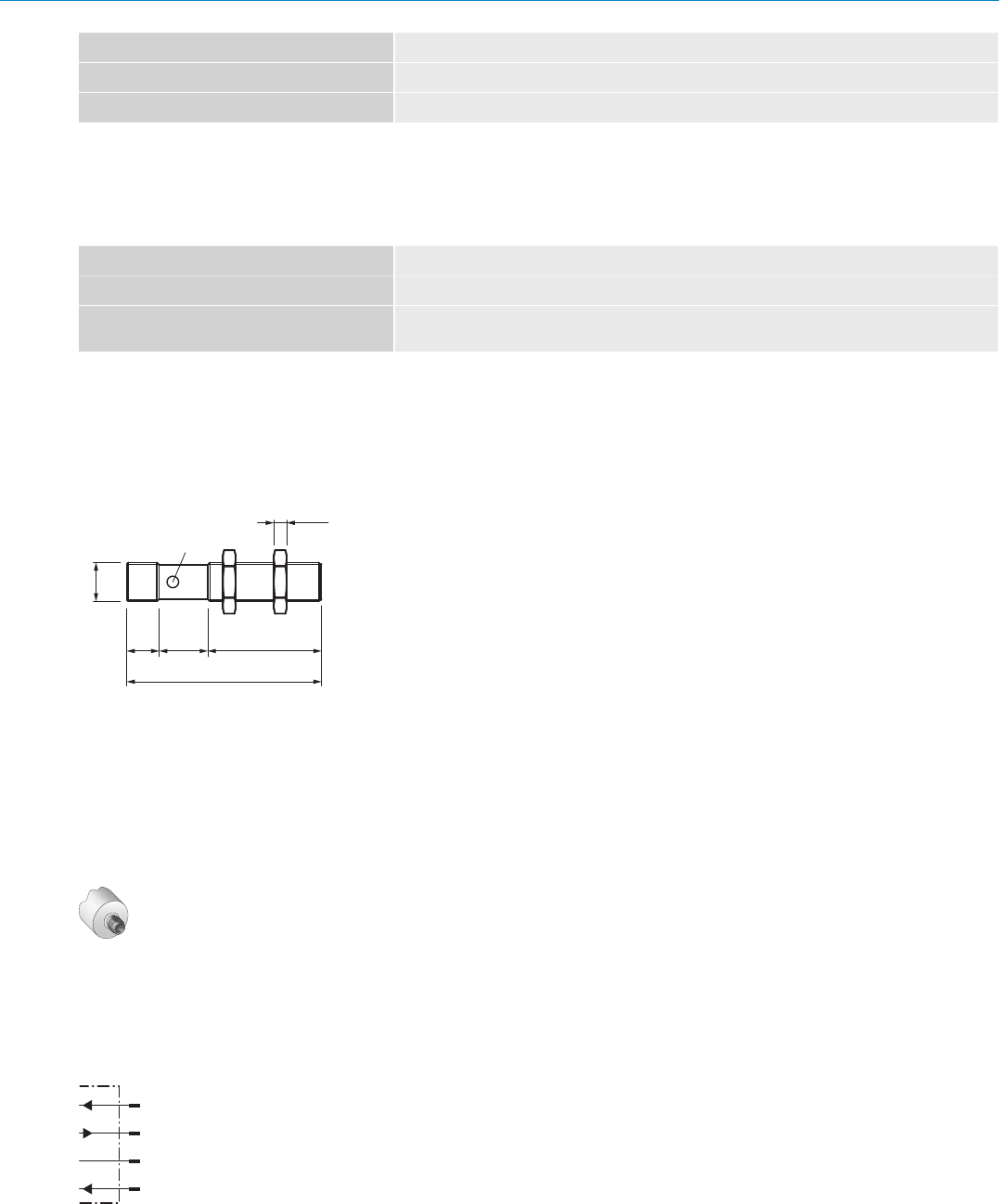

Dimensional drawing (Dimensions in mm (inch))
UM12-11x2261, UM12-11x2271
10
(0.39)
15
(0.59)
35.1 (1.38)
60.1 (2.37)
4
(0.16)
M12 x 1
3
1
2
Connection
Mounting nuts, SW 17mm
Status display supply voltage active (green), switching and analog output (orange)
Connection type
UM1x-x17 connector M12, 5-pin
Connection diagram
UM12-11x2261, UM12-11x2271
L+
QA
M
Teach-in
1
4
3
2
brn
blk
blu
wht
2016-05-02 22:08:07 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK 3
