ITT CANNON 1297

Cross Number:

Item Description: ADAPTER BNC FMALE-STD PHONE PLUG

Qty Price
1 + $0.54000



Other Cross Reference

Manufacturer Date Code Qty Available Qty
ITT CANNON
  • Freelance Stock: 1
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Pomona
®

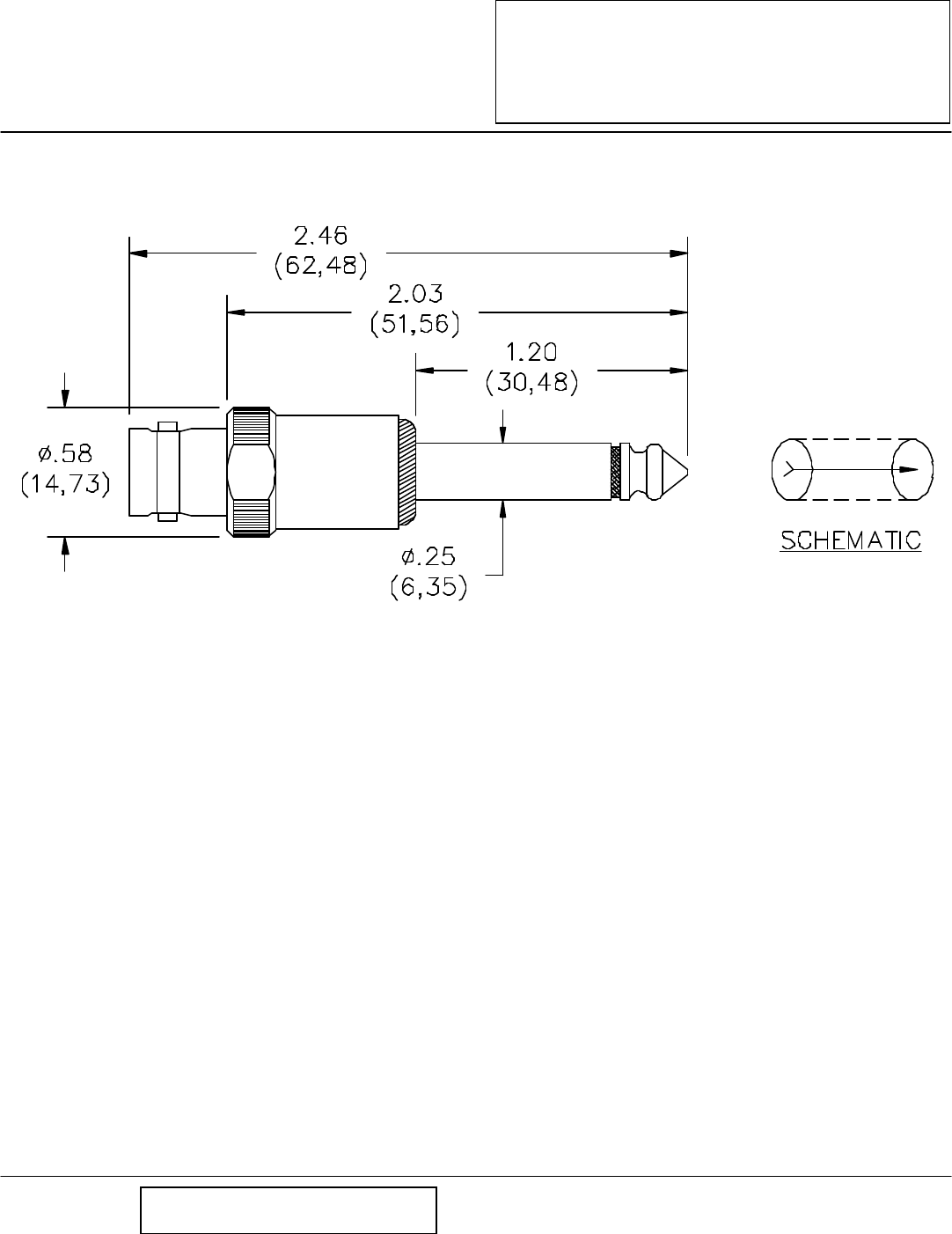

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99 PomonaACCESS 90502 (800) 444-6785 or (425) 446-6010
SY/EH/LS More drawings available at www.pomonaelectronics.com
S:\Engineering\Release\DataSheets\FlukeDataSheet\d1297_1_01.doc Page 1 of 2
Model 1297
BNC (Female) To Standard ¼”
Two Conductor Phone Plug
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
FEATURES:
Enables interconnection between telephone equipment and BNC based test instruments.
Readily adapters standard phone jacks for BNC Cables.
BNC (Female) contact is gold plated Beryllium Copper for noise free connection.
Adapter is tarnish resistant for good lab appearance.
MATERIALS:
BNC (Male): Body Brass, Tarnish Resistant
Center Contact: Beryllium Copper, Gold Plated
Dielectric: PTFE
Handle: Brass, Nickel Plated
Phone Plug (Two Conductors): Brass, Nickel Plated
RATINGS:
Operating Voltages: 500 VRMS
Operating Temperature: +125°C (+257°F)
Impedance: 50 Ohms
Pomona
®
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99 PomonaACCESS 90502 (800) 444-6785 or (425) 446-6010
SY/EH/LS More drawings available at www.pomonaelectronics.com
S:\Engineering\Release\DataSheets\FlukeDataSheet\d1297_1_01.doc Page 1 of 2
Model 1297
BNC (Female) To Standard ¼”
Two Conductor Phone Plug
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
ORDERING INFORMATION: Model 1297
