AD698SQ

Part # AD698SQ
Description Universal LVDT Signal Conditioner 24-Pin CDIP
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $94.06779



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

REV. B
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
a
Universal
LVDT Signal Conditioner
AD698
© Analog Devices, Inc., 1995
One Technology Way, P.O. Box 9106, Norwood. MA 02062-9106, U.S.A.
Tel: 617/329-4700 Fax: 617/326-8703
FEATURES
Single Chip Solution, Contains Internal Oscillator and
Voltage Reference
No Adjustments Required
Interfaces to Half-Bridge, 4-Wire LVDT
DC Output Proportional to Position
20 Hz to 20 kHz Frequency Range
Unipolar or Bipolar Output
Will Also Decode AC Bridge Signals
Outstanding Performance
Linearity: 0.05%
Output Voltage: 611 V
Gain Drift: 20 ppm/8C (typ)
Offset Drift: 5 ppm/8C (typ)
PRODUCT DESCRIPTION
The AD698 is a complete, monolithic Linear Variable Differen-
tial Transformer (LVDT) signal conditioning subsystem. It is
used in conjunction with LVDTs to convert transducer mechan-
ical position to a unipolar or bipolar dc voltage with a high de-
gree of accuracy and repeatability. All circuit functions are
included on the chip. With the addition of a few external passive
components to set frequency and gain, the AD698 converts the
raw LVDT output to a scaled dc signal. The device will operate
with half-bridge LVDTs, LVDTs connected in the series op-
posed configuration (4-wire), and RVDTs.
The AD698 contains a low distortion sine wave oscillator to
drive the LVDT primary. Two synchronous demodulation
channels of the AD698 are used to detect primary and second-
ary amplitude. The part divides the output of the secondary by
the amplitude of the primary and multiplies by a scale factor.
This eliminates scale factor errors due to drift in the amplitude
of the primary drive, improving temperature performance and
stability.
The AD698 uses a unique ratiometric architecture to eliminate
several of the disadvantages associated with traditional ap-
proaches to LVDT interfacing. The benefits of this new cir-
cuit are: no adjustments are necessary; temperature stability is
improved; and transducer interchangeability is improved.
The AD698 is available in two performance grades:
Grade Temperature Range Package
AD698AP –40°C to +85°C 28-Pin PLCC
AD698SQ –55°C to +125°C 24-Pin Cerdip
PRODUCT HIGHLIGHTS
1. The AD698 offers a single chip solution to LVDT signal
conditioning problems. All active circuits are on the mono-
lithic chip with only passive components required to com-
plete the conversion from mechanical position to dc voltage.
2. The AD698 can be used with many different types of posi-
tion sensors. The circuit is optimized for use with any
LVDT, including half-bridge and series opposed, (4 wire)
configurations. The AD698 accommodates a wide range of
input and output voltages and frequencies.
3. The 20 Hz to 20 kHz excitation frequency is determined by a
single external capacitor. The AD698 provides up to 24 volts
rms to differentially drive the LVDT primary, and the
AD698 meets its specifications with input levels as low as
100 millivolts rms.
4. Changes in oscillator amplitude with temperature will not af-
fect overall circuit performance. The AD698 computes the
ratio of the secondary voltage to the primary voltage to deter-
mine position and direction. No adjustments are required.
5. Multiple LVDTs can be driven by a single AD698 either in
series or parallel as long as power dissipation limits are not
exceeded. The excitation output is thermally protected.
6. The AD698 may be used as a loop integrator in the design of
simple electromechanical servo loops.
7. The sum of the transducer secondary voltages do not need to
be constant.
FUNCTIONAL BLOCK DIAGRAM
A
B
AMP
OSCILLATOR
VOLTAGE
REFERENCE
A
B
FILTER
AMP
AD698
AD698–SPECIFICATIONS
REV. B
–2–
(@ T
A
= +258C, V
CM
= 0 V, and V+, V– = 615 V dc, unless otherwise noted)
AD698SQ AD698AP
Parameter Min Typ Max Min Typ Max Unit
TRANSFER FUNCTION
1
V
OUT
=
A
B
× 500 µA × R2
V
OVERALL ERROR T
MIN
to T
MAX
0.4 1.65 0.4 1.65 % of FS
SIGNAL OUTPUT CHARACTERISTICS
Output Voltage Range 611 611 V
Output Current, T
MIN
to T
MAX
11 11 mA
Short Circuit Current 20 20 mA
Nonlinearity
2
T
MIN
to T
MAX
75 6500 75 6500 ppm of FS
Gain Error
3
0.1 61.0 0.1 61.0 % of FS
Gain Drift 20 6100 20 6100 ppm/°C of FS
Output Offset 0.02 61 0.02 61 % of FS
Offset Drift 5 625 5 625 ppm/°C of FS
Excitation Voltage Rejection
4
100 100 ppm/dB
Power Supply Rejection (±12 V to ±18 V)
PSRR Gain 50 300 50 300 ppm/V
PSRR Offset 15 100 15 100 ppm/V
Common-Mode Rejection (±3 V)
CMRR Gain 25 100 25 100 ppm/V
CMRR Offset 2 100 2 100 ppm/V
Output Ripple
5
4 4 mV rms
EXCITATION OUTPUT CHARACTERISTICS (@ 2.5 kHz)
Excitation Voltage Range 2.1 24 2.1 24 V rms
Excitation Voltage (Resistors Are 1% Absolute Values)
(R1 = Open)
6
1.2 2.15 1.2 2.15 V rms
(R1 = 12.7 k) 2.6 4.35 2.6 4.35 V rms
(R1 = 487 ) 14 21.2 14 21.2 V rms
Excitation Voltage TC
7
100 100 ppm/°C
Output Current 30 50 30 50 mA rms
T
MIN
to T
MAX
40 40 mA rms
Short Circuit Current 60 60 mA
DC Offset Voltage (Differential, R1 = 12.7 k)
T
MIN
to T
MAX
30 6100 30 6100 mV
Frequency 20 20 k 20 20 k Hz
Frequency TC 200 200 ppm/°C
Total Harmonic Distortion –50 –50 dB
SIGNAL INPUT CHARACTERISTICS
A/B Ratio Usable Full-Scale Range 0.1 0.9 0.l 0.9
Signal Voltage B Channel 0.1 3.5 0.1 3.5 V rms
Signal Voltage A Channel 0.0 3.5 0.0 3.5 V rms
Input Impedance 200 200 k
Input Bias Current (BIN, AIN) 1 5 1 5 µA
Signal Reference Bias Current 2 10 2 10 µA
Excitation Frequency 0 20 k 0 20 k Hz
POWER SUPPLY REQUIREMENTS
Operating Range 13 36 13 36 V
Dual Supply Operation (±10 V Output) ±13 ±13 V
Single Supply Operation
0 V to +10 V Output 17.5 17.5 V
0 V to 10 V Output 17.5 17.5 V
Current (No Load at Signal and Excitation Outputs) 12 15 12 15 mA
T
MIN
to T
MAX
18 18 mA
OPERATING TEMPERATURE RANGE –55 +125 –40 +85 °C
AD698
REV. B
–3–
NOTES
1
A and B represent the Mean Average Deviation (MAD) of the detected sine waves V
A
and V
B
. The polarity of V
OUT
is affected by the sign of the A comparator, i.e.,
multiply V
OUT
× +1 for A
COMP+
> A
COMP–
, and V
OUT
× –1 for A
COMP–
> A
COMP+
.
2
Nonlinearity of the AD698 only in units of ppm of full scale. Nonlinearity is defined as the maximum measured deviation of the AD698 output voltage from a
straight line. The straight line is determined by connecting the maximum produced full-scale negative voltage with the maximum produced full-scale positive voltage.
3
See Transfer Function.
4
For example, if the excitation to the primary changes by 1 dB, the gain of the system will change by typically 100 ppm.
5
Output ripple is a function of the AD698 bandwidth determined by C1 and C2. A 1000 pF capacitor should be connected in parallel with R2 to reduce the output
ripple. See Figures 7, 8 and 13.
6
R1 is shown in Figures 7, 8 and 13.
7
Excitation voltage drift is not an important specification because of the ratiometric operation of the AD698.
8
From T
MIN
to T
MAX
the overall error due to the AD698 alone is determined by combining gain error, gain drift and offset drift. For example, the typical overall
error for the AD698AP from T
MIN
to T
MAX
is calculated as follows: Overall Error = Gain Error at +25°C (±0.2% Full Scale) + Gain Drift from –40°C to +25°C
(20 ppm/°C × 65°C) + Offset Drift from –40°C to +25°C (5 ppm/°C × 65°C) = ±0.36% of full scale. Note that 1000 ppm of full scale equals 0.1% of full scale.
Specifications subject to change without notice.
Specifications shown in boldface are tested on all production units at final electrical test. Results from those tested are used to calculate outgoing quality levels.
All min and max specifications are guaranteed, although only those shown in boldface are tested on all production units.
ORDERING GUIDE
Model Package Description Package Option
AD698AP 28-Pin PLCC P-28A
AD698SQ 24-Pin Double Cerdip Q-24A

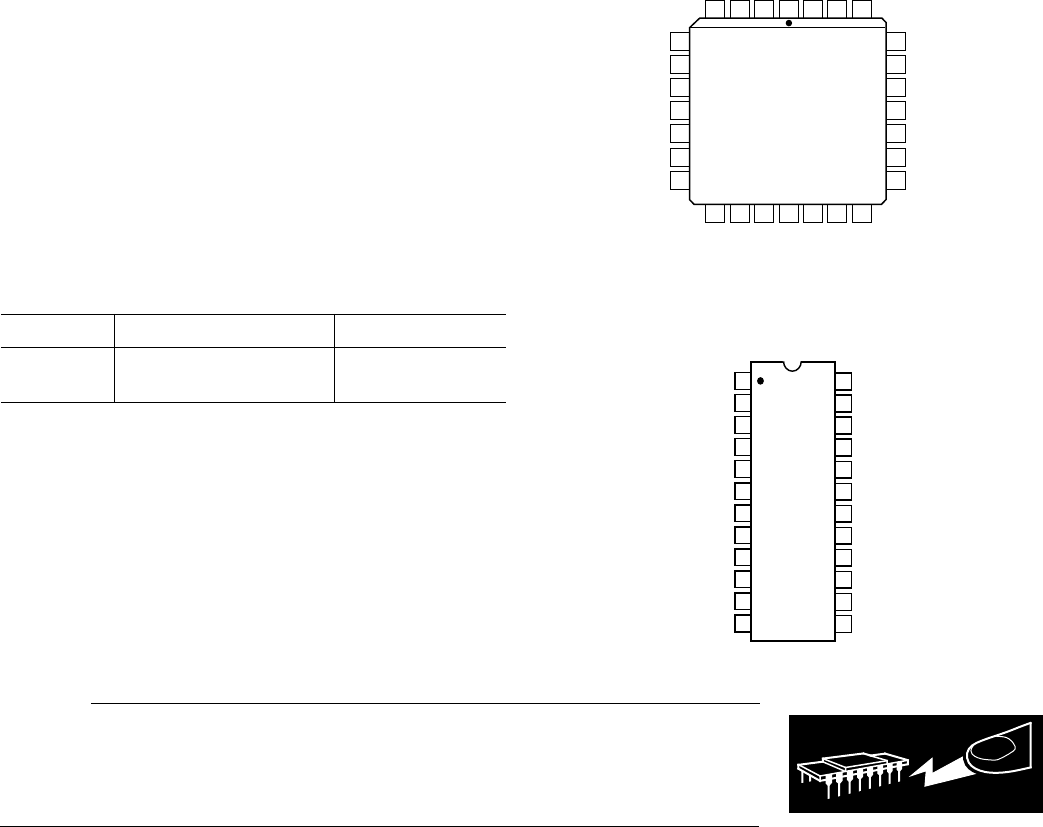

CONNECTION DIAGRAMS
28-Pin PLCC
7
8
9
10
11
5
6
28 27 261234
21
22
23
24
25
19
20
12
13
14 15 16 17 18
TOP VIEW
(Not to Scale)
LEV1
LEV2
FREQ1
NC
NC
SIG REF
SIG OUT
FEEDBACK
OUT FILT
NC = NO CONNECT
AD698
BFILT1
BFILT2
AFILT1
AFILT2
+ACOMP
FREQ2
NC
EXC2
EXC1
–V
S
+V
S
NC
–BIN
+BIN
–AIN
+AIN
–ACOMP
OFF1
OFF2
24-Pin Cerdip
13
16
15
14
24
23
22
21
20
19
18
17
TOP VIEW
(Not to Scale)
12
11
10
9
8
1
2
3
4
7
6
5
AD698
–V
S
SIG REF
OFFSET2
OFFSET1
+V
S
EXC1
EXC2
LEV1
OUT FILT
FEEDBACK
SIG OUT
LEV2
FREQ1
FREQ2
BFILT1
BFILT2
–BIN
–ACOMP
AFILT2
AFILT1
+BIN
–AIN
+ACOMP
+AIN
WARNING!
ESD SENSITIVE DEVICE
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD698 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
ABSOLUTE MAXIMUM RATINGS
Total Supply Voltage (+V
S
to –V
S
) . . . . . . . . . . . . . . . . . 36 V
Storage Temperature Range
P Package . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to +150°C
Q Package . . . . . . . . . . . . . . . . . . . . . . . . –65°C to +150°C
Operating Temperature Range
AD698SQ . . . . . . . . . . . . . . . . . . . . . . . . –55°C to +125°C
AD698AP . . . . . . . . . . . . . . . . . . . . . . . . . –40°C to +85°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . . +300°C
Power Dissipation Derates above +65°C
P Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 mW/°C
Q Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 mW/°C
THERMAL CHARACTERISTICS
θ
JC
θ
JA
P Package 30°C/W 60°C/W
Q Package 26°C/W 62°C/W
