142-0701-201

Part # 142-0701-201
Description SMA COAXIAL CONNECTOR
Category CONNECTOR
Availability In Stock
Qty 3
Qty Price
1 + $1.47023
Manufacturer Available Qty
Military Spec
  • Shipping Freelance Stock: 2
    Ships Immediately
Military Spec
  • Shipping Freelance Stock: 1
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Bill of Materials, Layouts and Schematics
www.ti.com
Table 10. Bill of Materials (continued)
Qty Ref Des Description MFR Part Number
5 TP1, TP2, TP8, TP11, TP12 TEST POINT PC MINI .040"D BLACK Keystone 5001
8 TP3, TP4, TP5, TP6, TP7, TP9, TP10, TP13 TEST POINT PC MINI .040"D RED Keystone 5000
1 U1 ADS1299, Low-Noise, 8-Channel, 24-bit analog Front-End for Biopotential TI ADS1299CPAG
Measurements
0 U2 Not Installed
0 U3, U5 Not Installed
2 U4, U11 IC OP AMP GP 5.5MHZ SGL 8SOIC TI OPA376AID
0 U4A, U11A Not Installed
1 U6 IC UNREG CHRG PUMP V INV SOT23-5 TI TPS60403DBVT
1 U8 IC LDO REG NEG 200MA 2.5 V, SOT23 TI TPS72325DBVT
1 U9 IC LDO REG 250MA 2.5 V, SOT23-5 TI TPS73225DBVT
1 U10 IC EEPROM 256KBIT 400KHZ 8TSSOP Microchip 24AA256-I/ST
30 NA 0.100 Shunt - Black Shunts 3M 969102-0000-DA
1 NA MMB0 Motherboard TI 6462011
58
EEG Front-End Performance Demonstration Kit SLAU443May 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
www.ti.com
Bill of Materials, Layouts and Schematics
9.4 ADS1299EEG-FE Power-Supply Recommendations

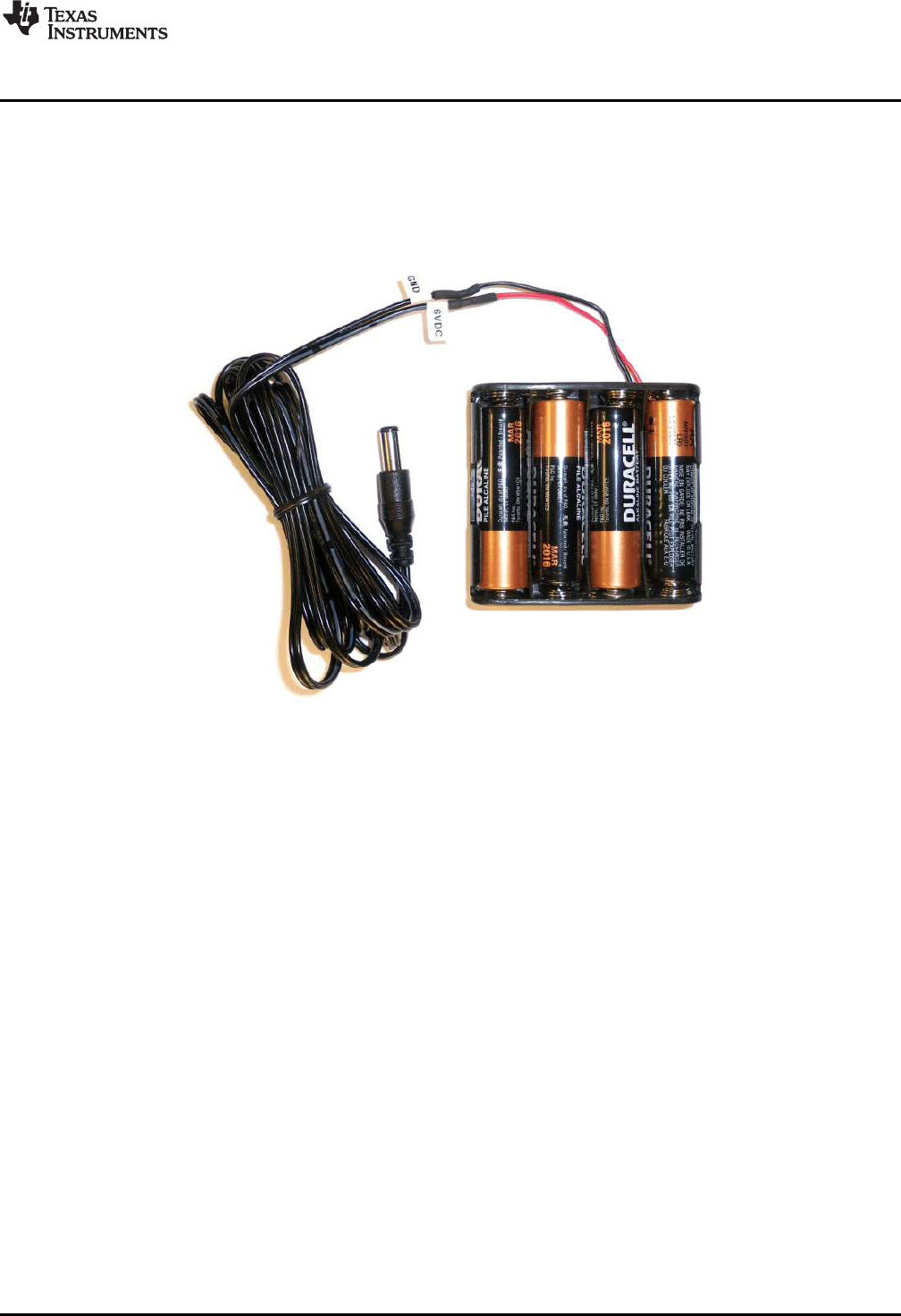

Figure 70 shows a +6V power-supply cable (not provided in the EVM kit) connected to a battery pack with
four 1.5V batteries connected in series. Connecting to a wall-powered source (provided in the EVM kit)
makes the ADS1299EEG-FE more susceptible to 50Hz/60Hz noise pickup; therefore, for best
performance, it is recommended to power the ADS1299EEG-FE with a battery source. This configuration
minimizes the amount of noise pickup seen at the digitized output of the ADS1299.
Figure 70. Recommended Power Supply for ADS1299EEG-FE
59
SLAU443May 2012 EEG Front-End Performance Demonstration Kit
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
