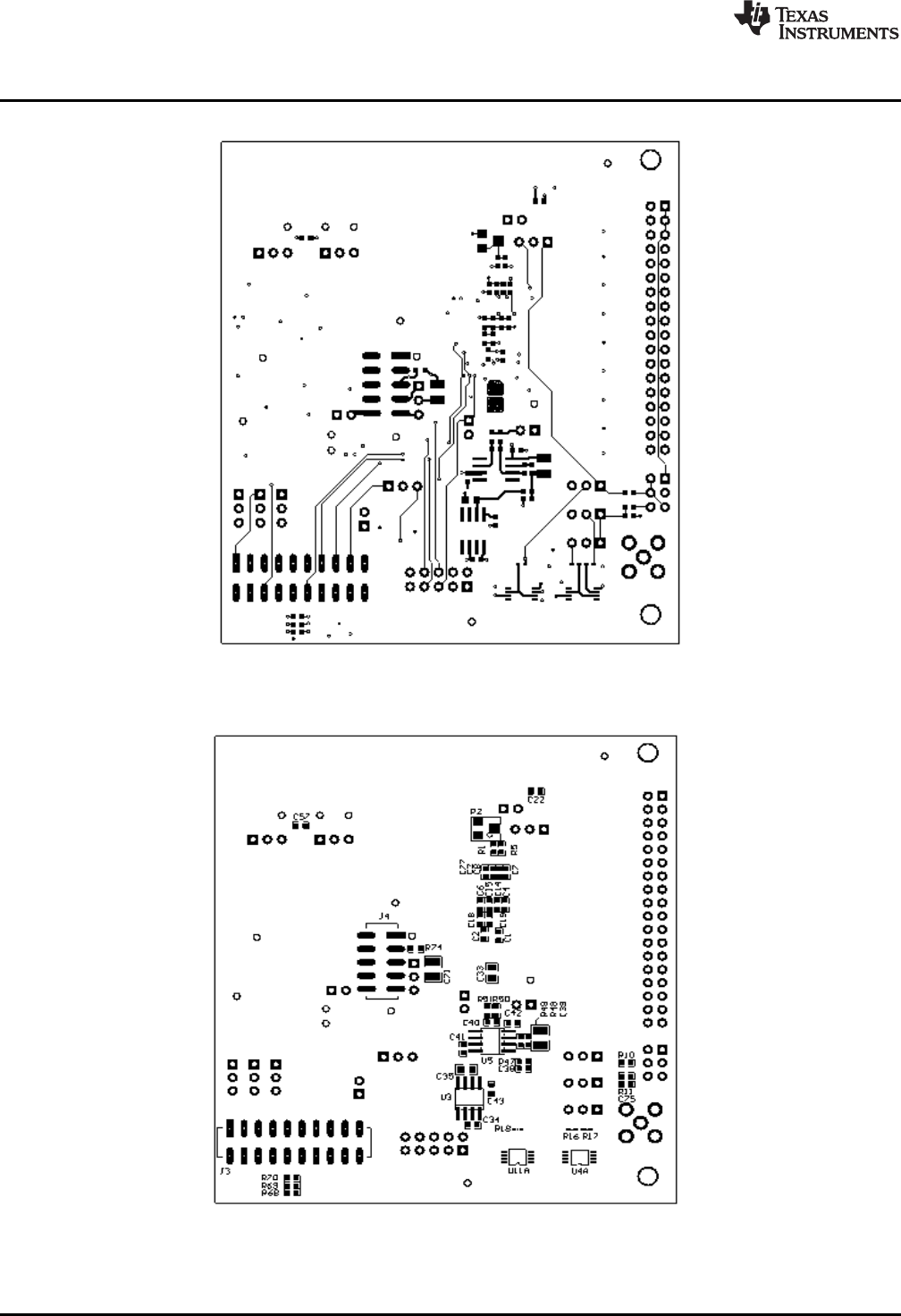

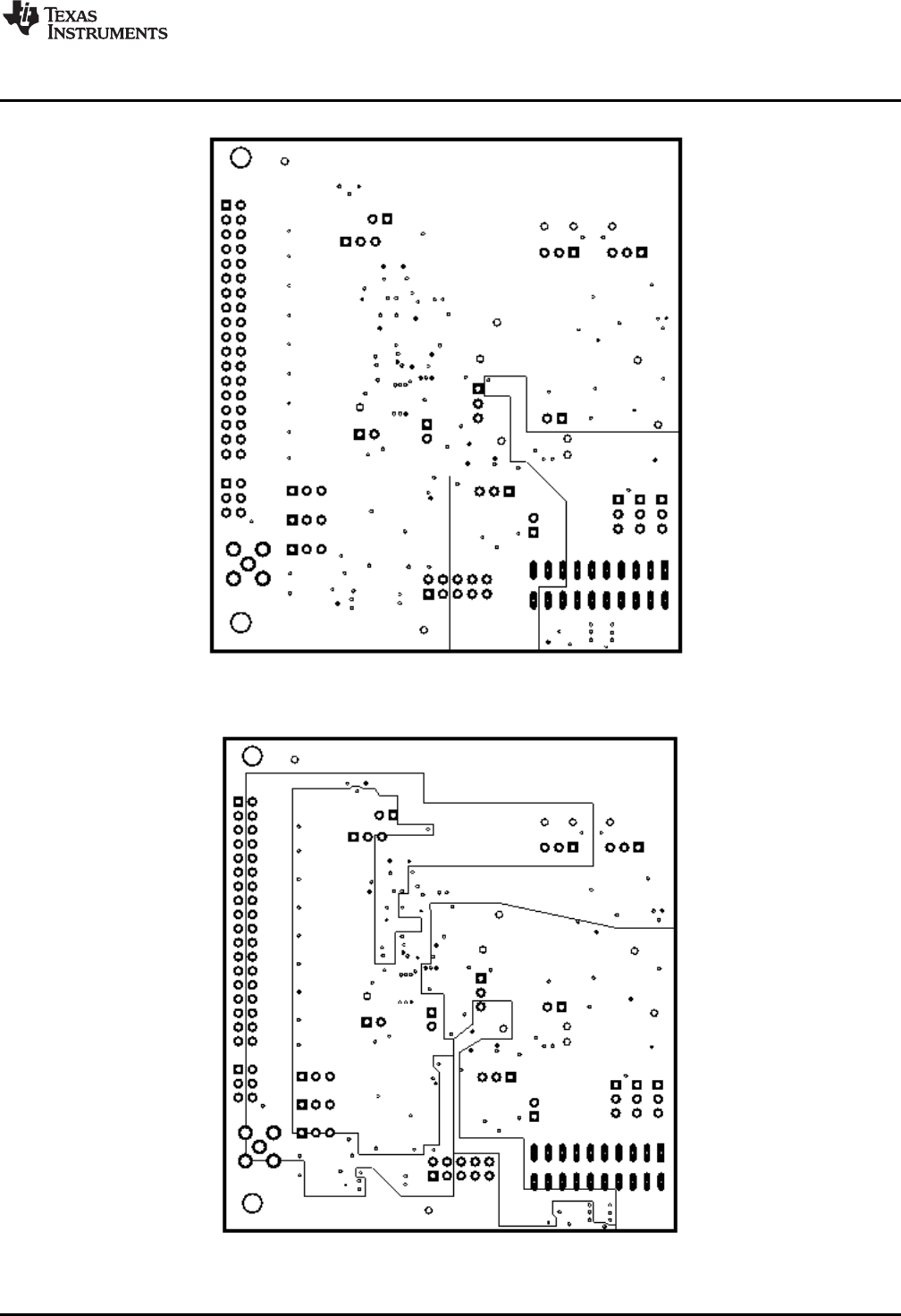

Bill of Materials, Layouts and Schematics
9.3 Bill of Materials
Table 10 lists the bill of materials for the ADS1299ECG-FE.
Table 10. Bill of Materials
Qty Ref Des Description MFR Part Number
1 NA Printed Wiring Board TI 6541979
19 C1, C2, C3, C4, C5, C6, C11, C17, C23, C24, C47, C48, CAP CER 1UF 25V, 10% X5R 0603 Murata GRM188R61E105KA12D
C49, C58, C62, C76, C77, C97, C99
0 C7, C8, C15, C19, C21, C22, C34, C38, C40, C41, C42, Not Installed
C43, C98
3 C9, C68, C71 CAP CER 100UF 10V, 20% X5R 1210 Taiyo Yuden LMK325BJ107MM-T
9 C10, C45, C46, C50, C51, C60, C61, C65, C66 CAP CER 10UF 10V, 10% X5R 0805 Murata GRM219R61A106KE44D
10 C12, C13, C14, C16, C18, C57, C69, C70, C94, C95 CAP CER 0.1UF 50V, 10% X7R 0603 Murata GRM188R71H104KA93D
2 C20, C67 CAP CER 10000PF 50V, 10% X7R 0603 Murata GRM188R71H103KA01D
0 C33, C35 Not Installed
0 C39 Not Installed
3 C59, C63, C64 CAP CER 2.2UF 6.3V, 10% X5R 0603 Murata GRM185R60J225KE26D
17 C72, C73, C75, C80, C81, C82, C83, C84, C85, C86, C87, CAP CER 4700PF 50V, 10% X7R 0603 Murata GRM188R71H472KA01D
C88, C89, C90, C91, C92, C93
1 AIN1 CONN SMA JACK STRAIGHT PCB Amphenol 132134
Emerson 142-0701-201
1 J3 (Top) 10 Pin, Dual Row, SM Header (20 Pos.) Samtec TSM-110-01-T-DV-P
2 J2, J3 (Bottom) 10 Pin, Dual Row, SM Header (20 Pos.) Samtec SSW-110-22-F-D-VS-K
1 J4 (Bottom) 5 Pin, Dual Row, SM Header (10 Pos.) Samtec SSW-105-22-F-D-VS-K
0 J5 Not Installed
1 J6 18 Pin, Dual Row, Header (36 Pos.) Samtec SSW-118-21-F-D
11 JP1, JP2, JP6, JP7, JP8, JP18, JP20, JP21, JP22, JP23, 3 Position Jumper 0.1" spacing Samtec TSW-103-07-T-S
JP24
0 JP3 Not Installed
4 JP4, JP5, JP17, JP19 2 Pin 0.1inch, Header Samtec TSW-102-07-T-S
1 JP25 3 Pin, Dual Row, Header (6 Pos.) Samtec TSW-103-07-T-D
4 L1, L2, L4, L5 INDUCTOR MULTILAYER 3.3UH 0805 TDK MLZ2012A3R3W
1 OSC1 OSC 2.0480 MHZ 3.3 V, HCMOS SMT Fox FXO-HC735-2.048MHZ
0 R1, R4, R5, R47, R48, R49, R50, R51, R52, R53, R56, R57, Not Installed
R68, R69, R70
0 R2 Not Installed
6 R3, R25, R71, R72, R73, R74 RES 0.0 OHM 1/10W 5% 0603 SMD Yageo RC0603JR-070RL
4 R6, R7, R67, R75 RES 10.0K OHM 1/10W 1% 0603 SMD Yageo RC0603FR-0710KL
1 R8 RES 392K OHM 1/10W 1% 0603 SMD Yageo RC0603FR-07392KL
19 R10, R11, R12, R80, R81, R82, R83, R84, R85, R86, R87, RES 4.99K OHM 1/10W 1% 0603 SMD Yageo RC0603FR-074K99L
R88, R89, R90, R91, R92, R93, R94, R95
3 R13, R14, R15 RES 0.0 OHM 1/16W 0402 SMD Yageo RC0402JR-070RL
0 R16, R17, R18 Not Installed
2 R23, R24 RES 2.0M OHM 1/10W 5% 0603 SMD Yageo RC0603JR-072ML
