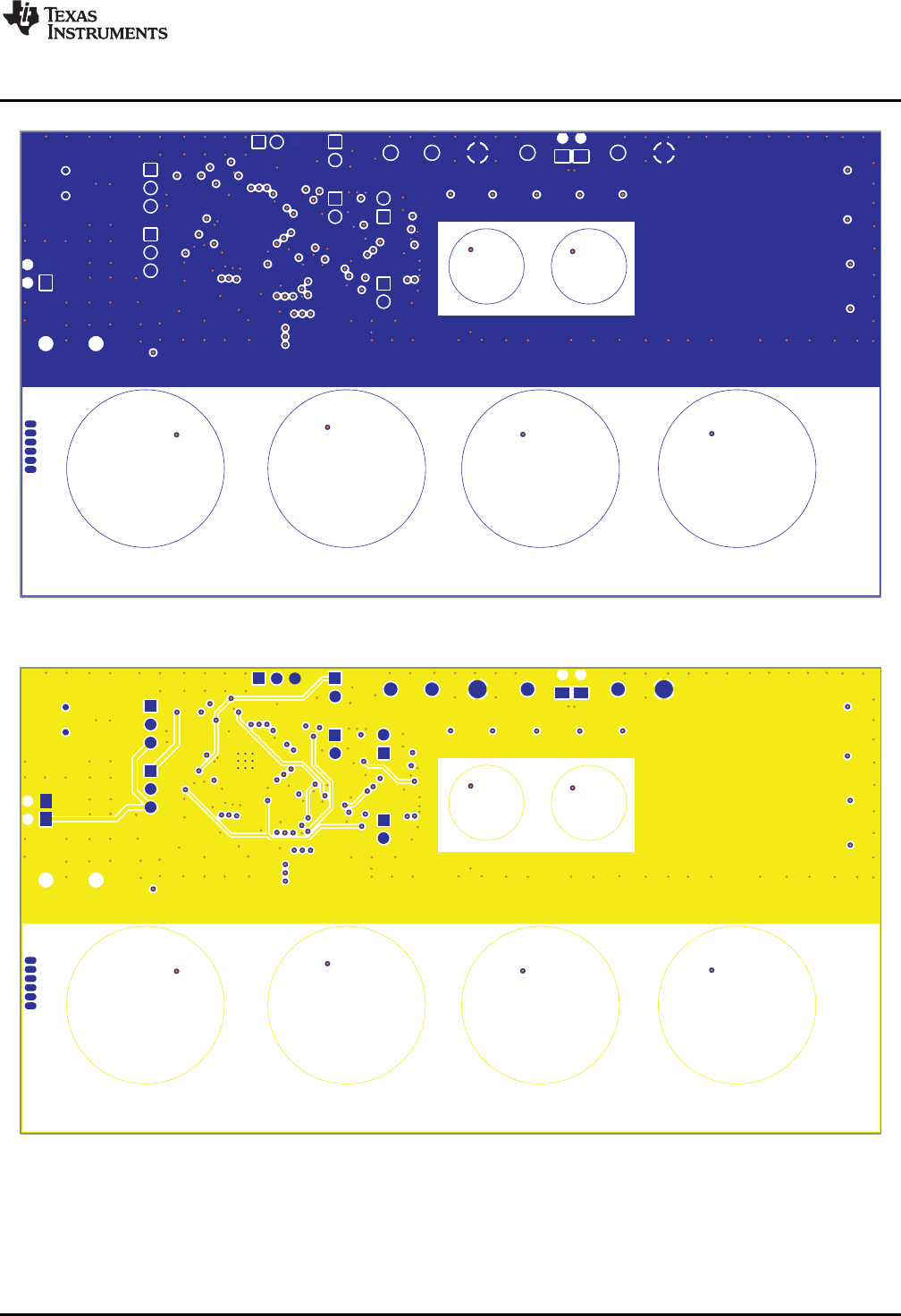

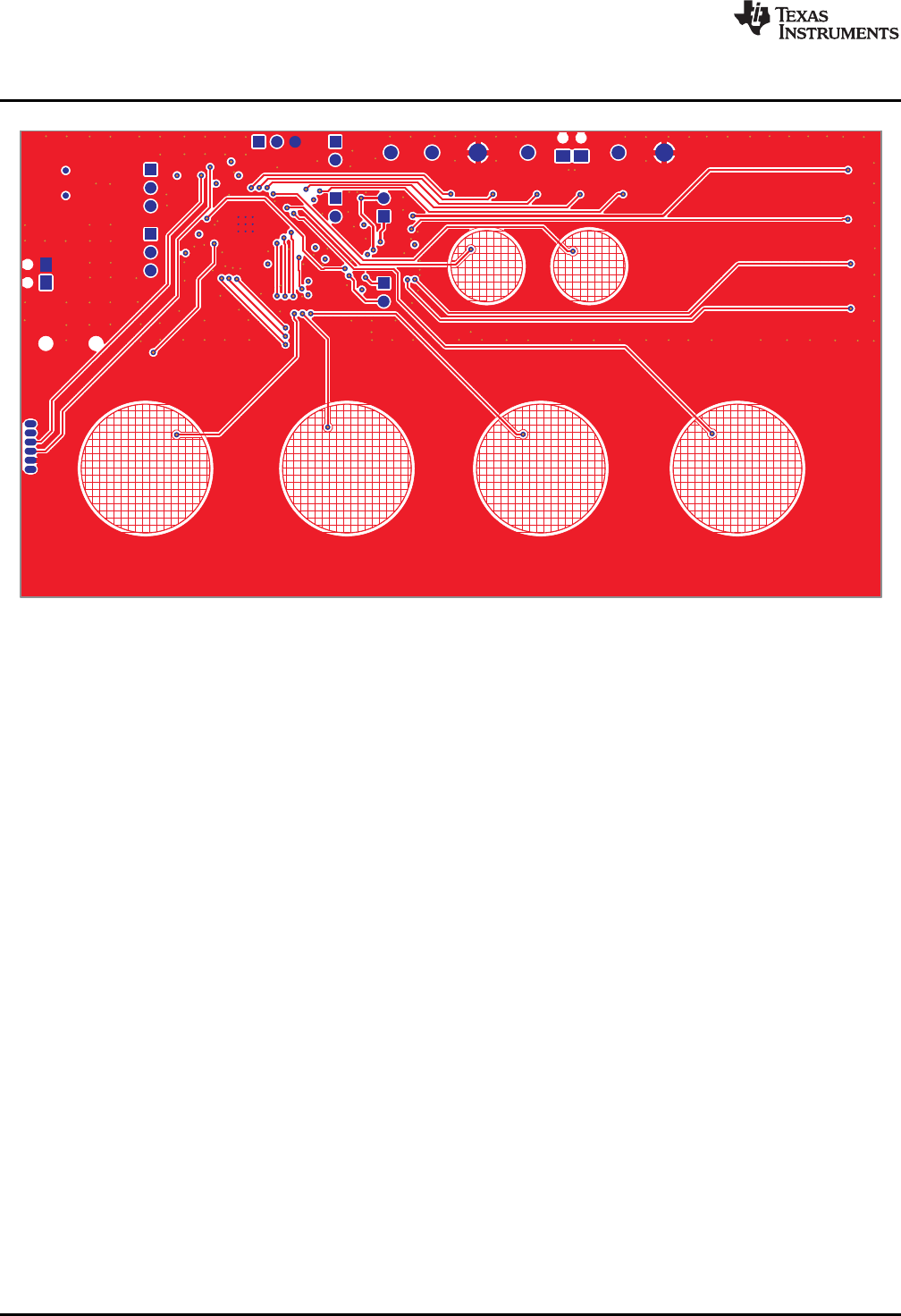

Bill of Materials
8 Bill of Materials
ITEM MANU PARTNUM QTY REF DESIGNATORS VENDOR PARTNUM DESCRIPTION VENDOR MANUFACTURER
SEMICONDUCTORS
1 DRV2603RUN 1 U1 DRV2603RUN NO DATA YET QFN10-RUN ROHS TEXAS TEXAS
INSTRUMENTS INSTRUMENTS
2 TXS0102DCTR 1 U4 296-21978-1 2-BIT BIDIR LEVEL TRANSLATOR DIGI-KEY TEXAS
SSOP8-DCT ROHS INSTRUMENTS
3 MSP430G2553IRHB32 1 U2 595- MIXED SIGNAL MICRO 16KB MOUSER TEXAS
T P430G2553IRHB32T FLASH 512B RAM QFN32-RHB INSTRUMENTS
ROHS
4 TPS73633MDBVREP 1 U3 296-21283-1 VOLT REG 3.3V 400MA LDO CAP DIGI-KEY TEXAS
FREE NMOS SOT23-DBV5 ROHS INSTRUMENTS
5 TS5A12301EYFPR 1 U5 296-23757-1-ND IEC LEVEL 4 ESD-PROTECTED DIGI-KEY TEXAS
0.75-OHM ANALOG SWITCH INSTRUMENTS
WCSP6-YFP ROHS
6 LTST-C190KGKT 2 5V,EN 160-1435-1-ND LED,GREEN,2.0V,SMD0603,ROHS DIGI-KEY LITE-ON INC.
7 LNJ037X8ARA 5 M0,M1,M2,M3,M4 LNJ037X8ARACT-ND LED, WHITE 2.9V SMD0805 ROHS DIGI-KEY PANASONIC
8 SML-LXT0805SRW-TR 1 B1 67-1555-1 LED, RED 2.0V SMD0805 ROHS DIGI-KEY LUMEX OPTO
9 SML-LXT0805GW-TR 1 B2 67-1553-1 LED, GREEN 2.0V SMD0805 ROHS DIGI-KEY LUMEX OPTO
10 SML-LXT0805YW-TR 1 B3 67-1554-1 LED, YELLOW 2.0V SMD0805 DIGI-KEY LUMEX OPTO
ROHS
11 LTST-C171TBKT 1 B4 160-1645-1-ND LED, BLUE 3.3V SMD0805 ROHS DIGI-KEY LITE-ON INC.
CAPACITORS
12 GRM155R71C104KA8 2 C1,C12 490-3261-1-ND CAP SMD0402 CERM 0.1UFD 16V DIGI-KEY MURATA
8D X7R 10% ROHS
13 C1005X5R0J104K 4 C8,C9,C10,C13 445-1266-1 CAP SMD0402 CERM 0.1UFD 6.3V DIGI-KEY TDK CORP
10% X5R ROHS
14 0805YD106KAT2A 1 C6 478-5165-1 CAP SMD0805 CERM 10UFD 16V DIGI-KEY AVX
X5R 10% ROHS
15 GRM155R60J105KE19 1 C7 490-1320-1 CAP SMD0402 CERM 1.0UFD 6.3V DIGI-KEY MURATA
D X5R 10% ROHS
16 GRM188R60J106ME4 1 C11 490-3896-1-ND CAP SMD0603 CERM 10UFD 6.3V DIGI-KEY MURATA
7D 20% X5R ROHS
17 C0402C471K5RACTU 2 C14,C15 399-1025-1 CAP SMD0402 CERM 470PFD 50V DIGI-KEY KEMET
10% X7R ROHS
18 TCTAL0J107M8R 1 C5 511-1498-1-ND CAP TANT1206 100UFD 6.3V 20% DIGI-KEY ROHM
TCT SERIES ROHS
