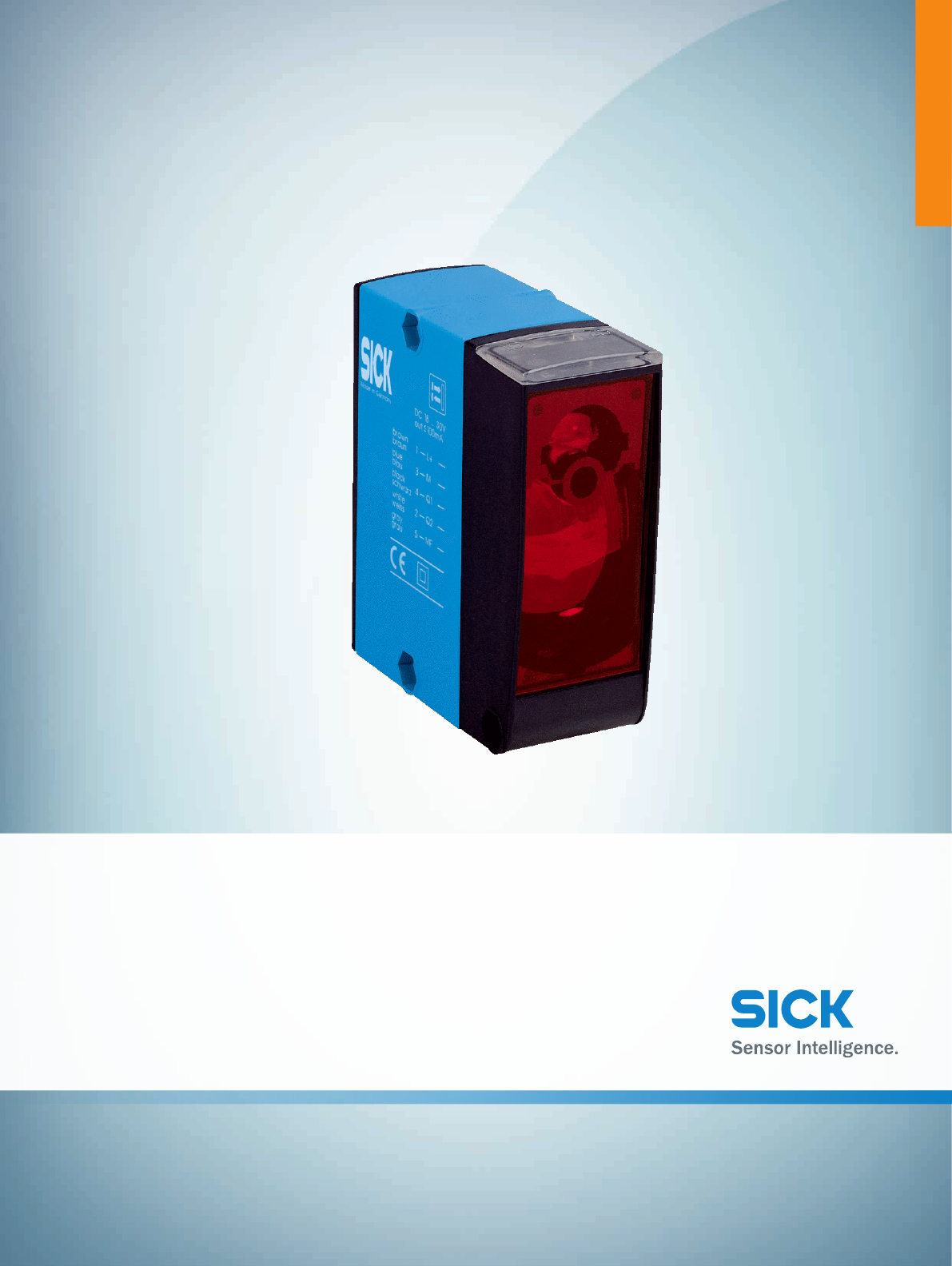

Online data sheet
DS60-P51111S01
Dx60
MID RANGE DISTANCE SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
DS60-P51111S01 | Dx60
MID RANGE DISTANCE SENSORS
2 DISTANCE SENSORS | SICK Online data sheet | 2016-03-17 13:18:11
Subject to change without notice

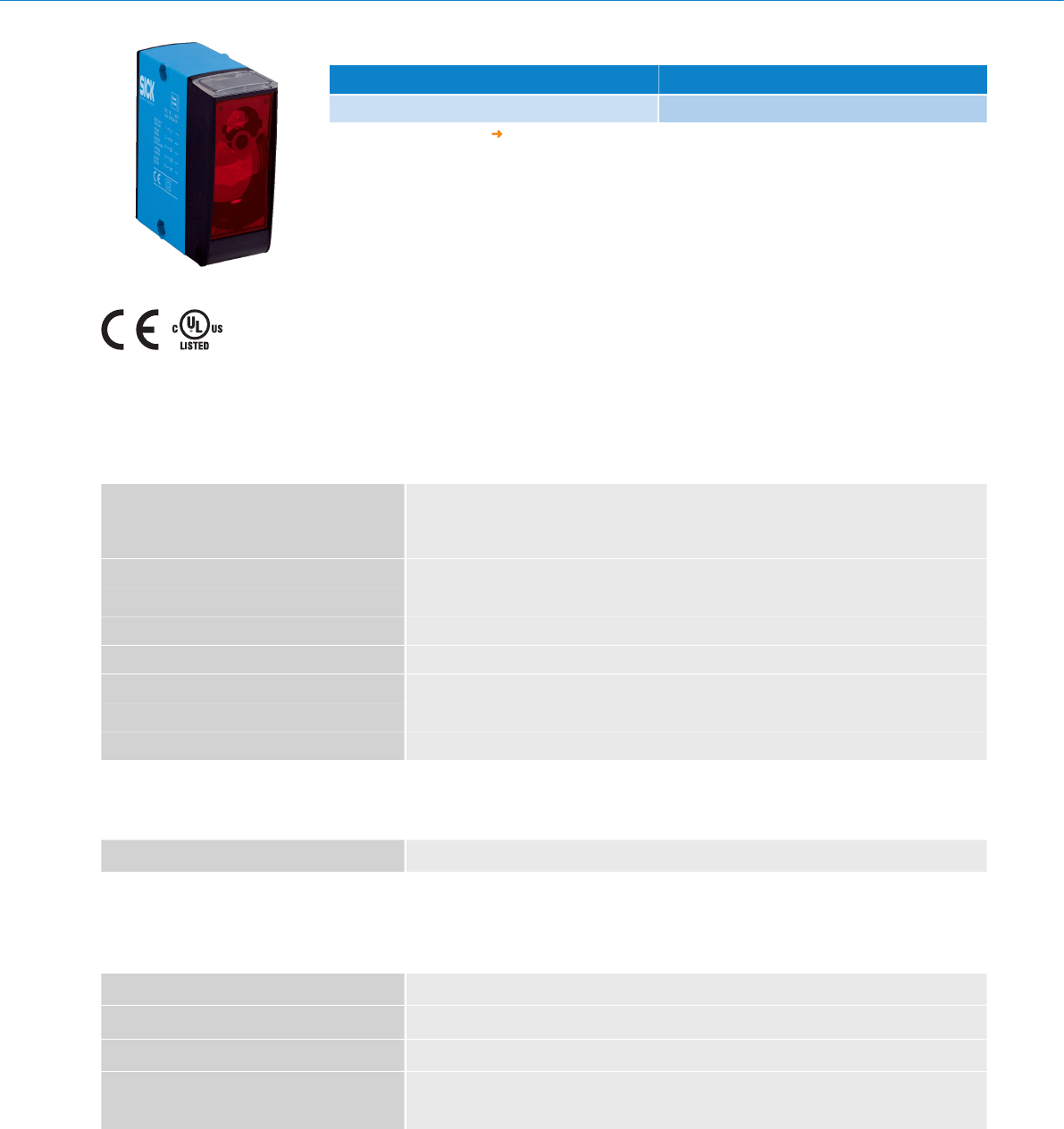

Ordering information
Type Part no.
DS60-P51111S01 1019331
Other models and accessories www.sick.com/Dx60
Detailed technical data
Performance
Measuring range
80mm... 6,000mm, 90% remission
1)
80mm... 5,700mm, 18% remission
1)
80mm... 3,300mm, 6% remission
1)
Response time
100ms
Switching frequency
5Hz
Light source
Laser, infrared
Laser class
1(EN60825-1)
Typ. light spot size (distance)
60mmx 60mm (at 6m)
Additional function
Invertable switching output, ObSB mode
Laser service life (MTTF at 25°C)
50,000h
1)
Teach-in from 200… 6,000mm.
Interfaces
Switching output
2x PNP (100mA)
1)
2)
1)
Output Q short-circuit protected.
2)
PNP: HIGH= V
S
- (< 2.5V) / LOW= < 2.5V; NPN: HIGH= < 2.5V / LOW= V
S
.
Mechanics/electronics
Supply voltage V
s
DC 18V... 30V
1)
Ripple
≤5V
pp
2)
Power consumption
≤3W
3)
Connection type
Male connector, M12, 5-pin
Weight
202g
1)
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8A.
2)
May not fall short of or exceed V
S
tolerances.
3)
Without load.
DS60-P51111S01 | Dx60
MID RANGE DISTANCE SENSORS
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK 3
Ambient data
Enclosure rating
IP67
Protection class
II
Electromagnetic compatibility (EMC)
EN61000-6-2
EN60947-5-2
Ambient temperature
Operation: –25°C... +55°C
Storage: –25°C... +75°C

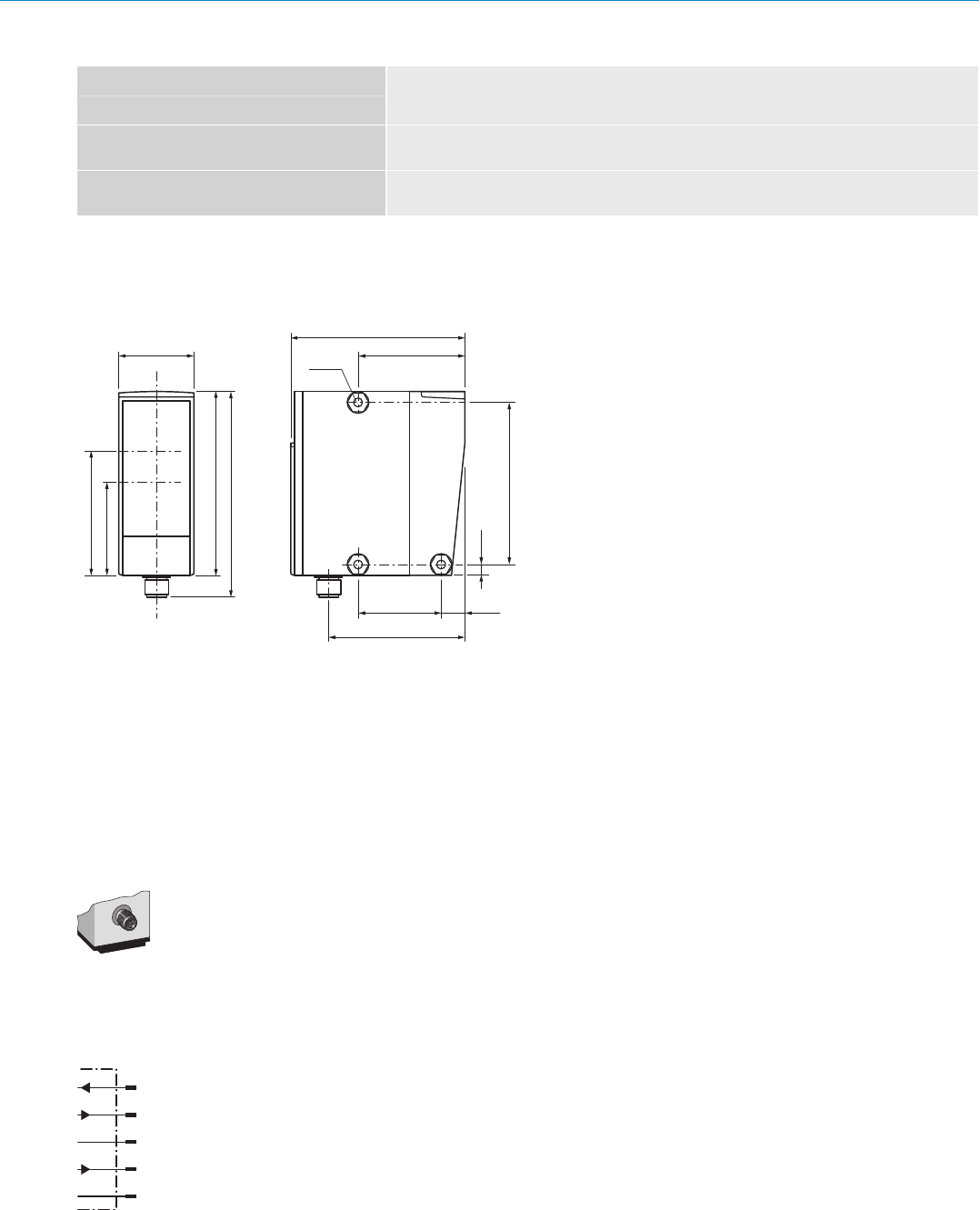

Dimensional drawing (Dimensions in mm (inch))
38 (1.50)
62.9 (2.48)
47.2 (1.86)
93 (3.66)
104.5 (4.11)
87 (3.43)
Ø 5.5
(0.22)
81.5 (3.21)
5.5
(0.22)
42 (1.65)
69 (2.72)
1 2
5
5 5
3
4
6
12
(0.47)
54 (2.13)
①Status indicator switching output 1
②Status indicator switching output 2
③Optical axis sender
④Optical axis receiver
⑤Mounting hole, Ø5.2mm
⑥Male connector M12, 5-pin
Connection type
Male connector M12, 5-pin
Connection diagram
L+
Q
1
M
nc
Q
2
1
4
2
brn
blk
wht
3
blu
5
gra
